Floor Deck Corrugated Steel Panel Roll Forming Machine 0.8 - 1.2mm High Speed
0.8 - 1.2mm high speed Floor deck panel roll forming machine 18 - 20m / min
Our machine can manufacture many kinds of floor decking panels, the panels which producted by the machine have a high quality, and the finished floor decks are used for constructing buildings, protect buildings against shaking. It's convinient to operate and has a good design, advanced technology and resonable price. We can customize special type,the quality of machine can be guaranteed.
Technical Parameters of Floor Decking:
| Material Thickness | 0.8-1.2mm |
| Material Width | 1200mm |
| Effective Width | 945mm |
| Forming Steps | 30 |
| Motor Power | 11KW*2 |
| Controlling system | PLC |
| Main Application |
Floor Decking Panel |
Working flow:
| Mchine composition | Quantity | Detailed information |
| 5T Hydraulic decoiler | 1 set |
Hydraulic system to expand coil inner hole; Pump motor: 3.0KW Frequency Inverter to regulate turn speed; Motor:5.5KW Coil Inner diameter=510±30mm. Coil Outer diameter Max. 1300mm; Load Capacity: Max. 5T; Coil Width Max. 1250mm |
| Hydraulic Pre-cutting Device | 1 set | Smart cut control, to cut off the end of the final plece of sheet only |

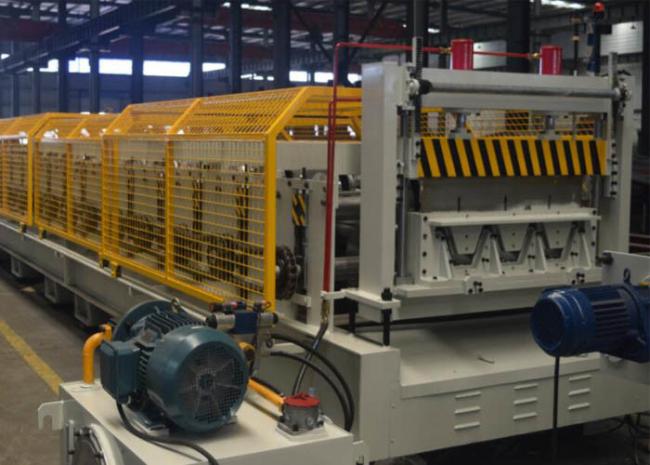

| Cold Rolling Mills | 1 set |
Feeding section with guide Wall-plate-frame design Gear/Sprocket driving; 29-step to form Rollers manufactured from 45# steel, CNC lathes, hard Chrome Coated Shafts Diameter=95mm, Precision Machined Main motor=15 WX2, Max. speed of roll former:max. 18-20m/min |
| Hydraulic cutting device | 1 set |
Stop to cut , post cut, slug breaker Cutting tool material: Cr12, heat treatment; mould steel with quenched treatment Hydraulic unit, Pump motor=5.5KW |
| PLC Control System | 1 set |
Control the quality and cutting length automatically; Combined with PLC, Inverter(Delta), Touch Screen(Weinview), Encoder(Omron) and so on. Cut to length tolerance≤±2mm Control voltage 24V |
| Exit table | 1 set | 4 meters long, un-powered |

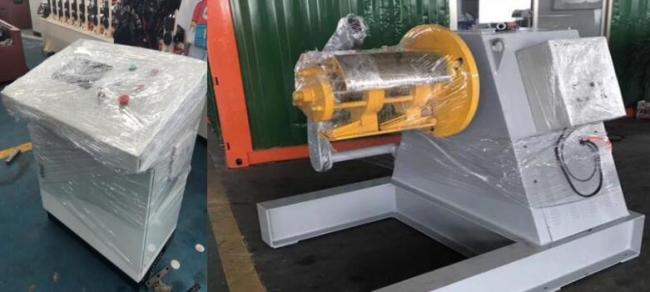

Packaging & Shipping:
A . One 40ft container for loading one set machine with decoiler;
B . The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
C . Spare parts and some small parts packed in plastic tooling box;
D . All Components Fixed by steel wire with Container.
