Galvanzied Steel C Z Purlin Roll Forming Machine / Purlin Making Machine
Fully Automatic C And Z Purlin Interchange Roll Forming Machine Galvanzied Steel
C And Z Purlin Interchange Roll Forming Machine are technically capable to produce 1.5-3mm (popular thickness) steel purlins, and sometimes up to 5mm thickness required for special applications. Punching holes are available and necessary for most C purlins.Our machine can produce different sizes C purlins from 80mm-300mm (standard), by change roller spacers.
Techincal Parameter
Main parts :Manual Uncoiler, Guiding Platform, 9 Shaft Strip Leveler, Main Machine Of Roll Forming, Hydraulic Motor, Pre-Punching Device,Pre-Cutting Device, Hydraulic Station, PLC Control, Supporter Table.
Special requirement pls feel free to contact us
| Control System | PLC Inverter Encoder Touch Screen |
| Main Frame | 400mm H-Beam |
| Total Power | 22 kw |
| Power Supply | 380V, 3-Phase,50Hz |
| Forming Speed | 12-24m/min |
| Roll Station | 18 stands |
| Roller Diameter | 110mm |
| Effective Width | 80-300mm |
| Feeding Thickness | 1.5-3.0mm |
| Backboard Thickness | 20mm |
| Cutter Standard | GCr12 |
| Roller Standard | Gcr15# |
| Total Weight | About 10T |
Components of the machine
| No | Name | Quantity | |
| 1 | Decoiler | 1set | |
| 2 | Main Machine | Leveling Device | 1set |
| Punching Device | 1set | ||
| Pre-cutting Device | 1set | ||
| Roll Forming | 1set | ||
| Hydraulic System | 1set | ||
| 3 | Electric Control System | 1set | |
| 4 | Supporter | 2pcs | |
Differents shapes of C and Z ,Welcome to send us your new design
Details pictures you may be concerned about
For cutting device : we use hydraulic cutting
Driving : Gear chain transmission
Roller material :Gcr15#
Certification and after service
1 . Match the technology standard, ISO producing certification
2 . CE certification
3 . 12 months warranty since the delivery. Board.

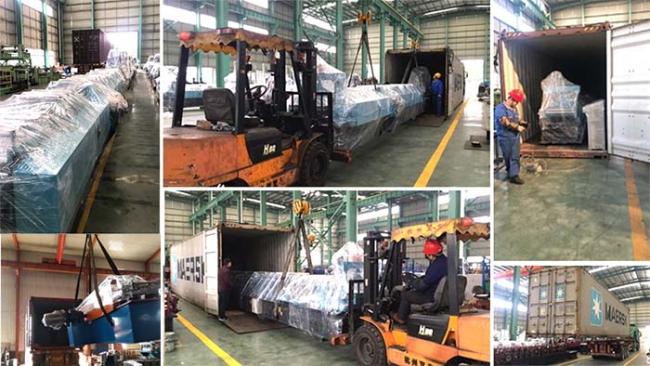

Packaging & Shipping
(1) . Main body of Shutter Door Roll Forming Machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in 1x40GP container with steel rope and lock catch suitable for long-distance transportation,
(2) . spare parts are covered by plastic film.
(3) . With even lifting point in the machine for easy container loading and uploading.
