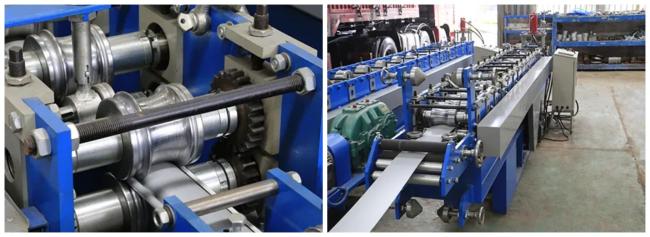

Hydraulic Cutting Steel Rolling Shutter Door Roll Forming Machine
Hydraulic Cutting Steel Rolling Shutter Door Roll Forming Machine
Our products are widely used in various fields: industrial factory, civilian building, warehouse, easy steel building, manufacturing, construction and have features such as nice appearance and durable.The colored steel tiles produced by this machine look beautiful ,elegant and noble.They are widely used as the roof of garden,factory,hotel,exhibition center and villa,etc.
Specification of Ceiling Silo Roll Forming Machine
| Material Spec | colored steel sheet, galvanized steel sheet |
| Input width | as customized |
| Effective width | according to final drawing |
| Roller station | as your profile |
| Coil Thickness | 0.7-1.2mm |
| Forming speed | 10-15m/min |
| Main motor power | 4kw |
| Hydraulic power | 4kw |
| Roller material | high grade No.45 forged steel, with 0.05mm plated coating |
| Shaft material | 45# high grade steel,diameter 75mm |
| PLC | Delta brand |
Machine list:
| Number | Machine list | Number |
| 1 | 5 tons hydraulic decoiler | 1 set |
| 2 | Feeding&leveling device | 1 set |
| 3 | Gear box drive system | 1 set |
| 4 | Main forming machine | 1 set |
| 5 | Curving device | 1 set |
| 6 | Hydraulic Cutting device | 1 set |
| 7 | Auto stacker 6 meters | 1 set |
| 8 | PLC control system | 1 set |
| 9 | Hydraulic station | 1 set |
| Cutting Device | Roller System |
| 1. Cutting press is 20 tons | 1. Material: high grade NO.45 forged steel |
| 2. Blade and mold material:GCR12steel with quenched treated 60-62ºC. It can decide cut panel dimension according to the hydraulic drive and PLC computer control system. | 2. Roller station: 11-16(depends on final design) 3. Thickness of feeding material:0.7-1.2mm. |
Technological process:

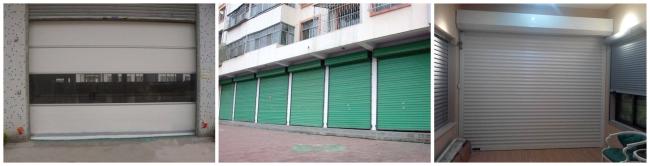

Application:
Features:
1 . The equipment control is PLC control, and multiple safety protection is set during normal production.
2 . The bed is welded with steel plates. It is also tempered to eliminate internal stress and avoid deformation of the fuselage.
3 . The forming frame is cast iron structure and tempered. High strength and long service life.
