Coil Rotary Shear Sheet Metal Shearing Machine Cut To Length Wire Cutting

Steel coil rotary shear cut to length line shearing machine wire cutting machine

Description:
Cut to length machine is a kind of steel coil leveling equipment. It’s used to cut the sheet, after uncoiled, into required length. Integrated with scissor and drop-type stackers, this cut to length line features hydraulic adjustments and oiling capabilities. The finished steel coils acquire uniform width and flatness.

Applications of Cut to Length Machine:
The cut to length lines automatically fills or cuts required sheets by power shear/ fly shear. This steel coil leveling equipment is suitable to process cold-rolled steel, hot-rolled steel, carbon steel, stainless steel, galvanized steel, color steel plates and the various metal materials.

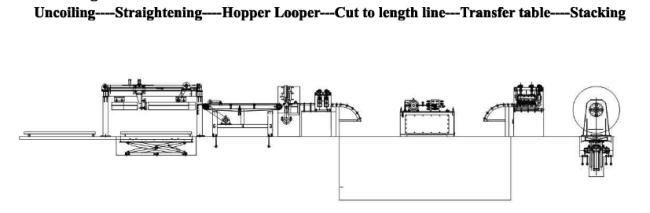

Work flow:

Sub Categories:
Cut to length machine mainly includes thin sheet cut to length line, middle thick sheet cut to length line and thick sheet cut to length line.

Advantage:
1. High degree of automation, easy & reliable operation
2. High length precision, high sheet flatness
3. Good order stacking

Technical parameters:
1. Material of coil plate: stainless coil plate
2. Coil plate thickness:0.3-3mm
3. width of coil material: 1500mm
4. coil weight :Max 7T
5. coil I.D: 480-508mm
6. coil O.D: 1500mm
7. line speed:40-120m/min
8. the diameter of slitting blade shaft: 200mm
9. slitting blade: 200mmX340mmX20
10. material of slitting blade: 6CrW2Si
11. the hardness of slitting blade: HRC58-60
12. cutting line number:
0.3-1.5mm,max 20 strips;1.5-2.5mm,max12 strips;2.5-3mm,max 8 strips
13. Min width of slitting: 25mm ( plate thickness ≤ 1mm )
14. Finished products coil I.D: 508mm
15. Finished products coil O.D: ≤1500mm
16. tolerance of width error: ≤±0.05mm/2M
17. other parameters: power:380V/50Hz/3Ph
18. area of the whole machine:25m(L)x8m(W)
19. operator needed: 1 technician and 2 general workers
20. weight of the whole machine around40T

Machine components:

1.coil car ; 2.decoiler ; 3.entry support device ; 4.width adjustor device ; 5.straightening machine ; 6.gauge table; 7.shearing machine ; 8.run out table; 9.pneumatic discharge and stacker device; 10.unloading table; 11.pueumatic system; 12.Electrical system with computer PLC program control ; 13.Hydraulic system

Our Services:

1. We will send the engineer for the installation and training of your workers on how to operate this machine in the correct way.

2. Warranty Team

One year quality guarantee, life guarantee repair. Within the quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.

3. We supply the pre-sell and after-sell service.

pre-sell service: workshop design, and production output design

after-sell service: installation and training, and the skilled engineer for working.

4. We can also be sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.

5. We supply the pre-sell service-Design for the whole project for stainless steel pipe making/ carbon steel pipe making.

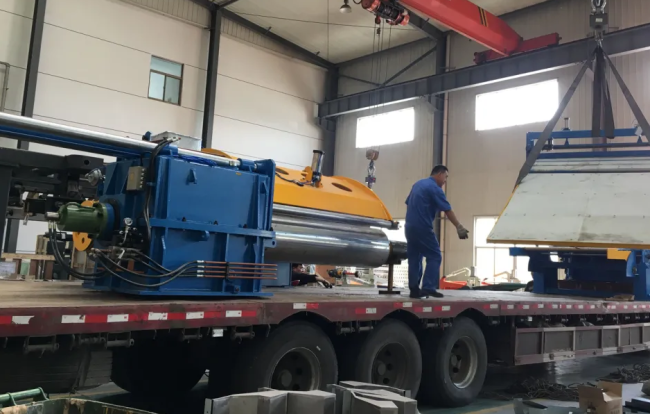

6. We will be responsible for loading and shipping.
