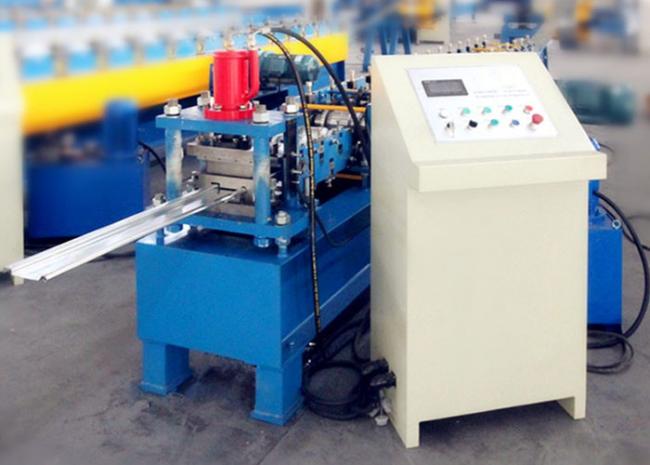

Metal Roller Shutter Door Roll Forming Machine 33 Stations 1250mm Feeding
Automatic 0.8 - 1.2 mm roller shutter door forming machine 33 forming stations
Description:
Our shutter door forming machine has many advantages of stablity, efficiency, material saving, low noise. And our machines work within high speed which improves its productivity greatly. Besides, Its products have high quality and fashionable styles. The steel roll shutter door are popular and used for factory, warehouses, stores and are welcomed by customers throughout the world. The machines can be designed to produce different shapes and sizes according to customer's requirements.
Main teachnical parameters:
| Machine Type | Shutter Door Roll Forming Machine |
| Tile Type | Colored Glaze Steel |
| Voltage | 380V/220 |
| Dimension(L*W*H) | 6500*1300*1100mm |
| Weight | 18000 kg |
| Color | Blue or as customer require |
| Usage | building |
Working flow:
Decoiler-Level device-Main forming machine-Hydraulic cutting-Run out table
| No. | Name | Quantity |
| 1. | Decoiler | 1 set |
| 2. | Level device | 1 set |
| 3. | Main roll forming machine | 1 set |
| 4. | Hydraulic cutting machine | 1 set |
| 5. | Run out table | 2 sets |
| 6. | Control panel | 1 set |

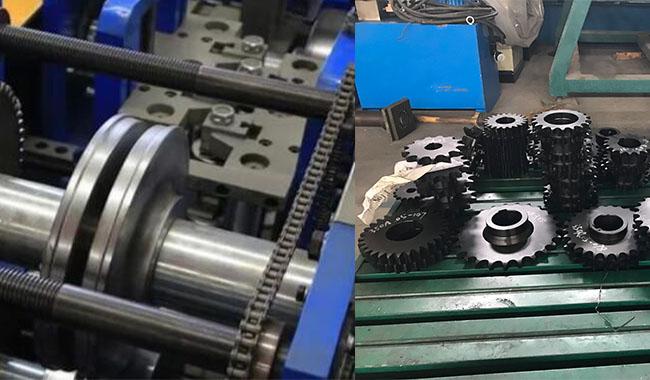

Machine Parts:
Profiles drawings:
Welcome to send us your specific design.
Raw material:Galvanized steel /Aluzinc steel
Thickness:0.8-1.2mm
Feeding width:1250mm
Cover Width:915mm
Main motor power:18.5kw
Hydraulic power:5.5kw
Yield stress:235Mpa(33KSI)-350Mpa(50KSI)
Voltage:380V,3Phase,50HZ/as customer require
Forming station:33 stations
Control system:PLC(imported Brand)
Cutting blade material:Cr12 High Grade Steel
Cutting tolerance:+/-2.5mm(length=5000mm)+/-3.0mm(5000mm<length<10000mm)
Manual decoiler:8T or as customer require
Coil inner diameter:508mm/610mm
Roller material:45#steel Chrome Plated,33 forming stations
Production Capacity:10-15m/min
After-sale service:
1 . Installation and training of roof forming machine:
a .If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
b .Without visiting, we will send you user manual and video to teach you to install and operate.
c .If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
2 . After Service of roof forming machine:
a .One year guarantee for whole roof forming machine.
b .24 hours technical support by email or calling
c .If there is any problem found of the roof forming machine, we will repair it for free in one year.
