Column Connection Plate Production Line Silo Forming Grain Bin
Column & connection plate production line silo forming machine Grain bin silo

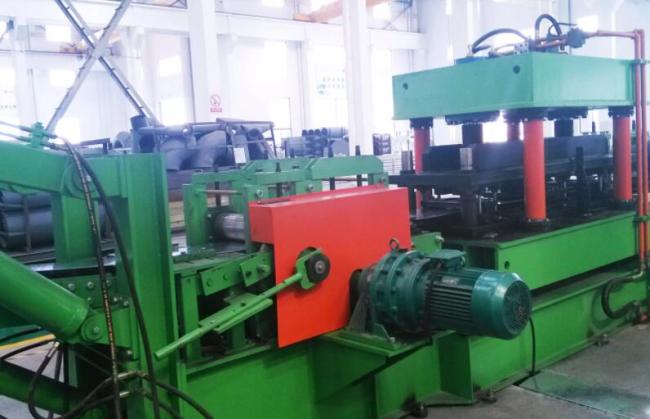

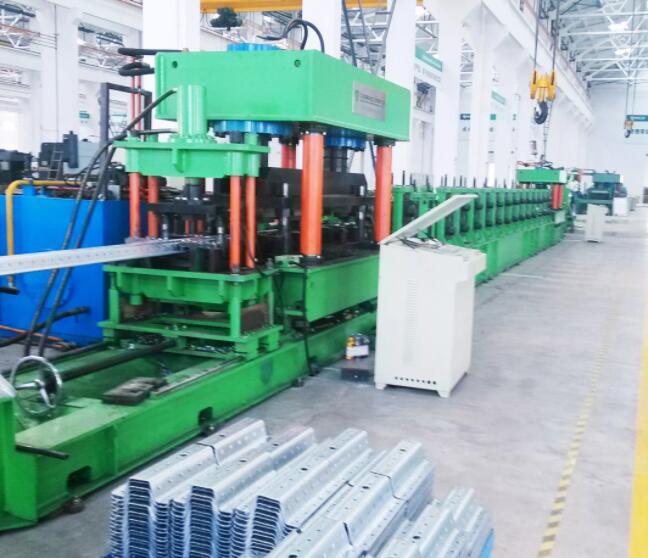

Column & connection plate production line is composed of nine parts: feeding machine, leveling and inclined pinch face, forming unit, punching, cutting, automatic palletizing, electric controlling system and hydraulic system. The production line can serve the automatic production of all the columns & connection plates, the max forming thickness of plate can achieve to 10mm/16mm, which can meet the needs of constructing ten thousand ton silo. The service this production line can improve the production efficiency and the product quality of column.
Technical parameters
| Pipe diameter | 1000-6000mm |
| Pipe length | 1-12m |
| Material | Galvanized steel strip, 2.0-3.0mm thick, 300mm wide |
| Working speed | 1-35m/min, adjustable |
| Spiral pitch | 230mm |
| Lock seam | Double locked |
| Motor power | About 33.0KW |
| Dimension | 3900 X 1600 X 1400mm |
Material:Q235
Steel coil bore: φ600
Steel coil weight: ≤10T
Product:According to the drawing
Height of the product: 85mm
Length tolerance: ±2mm
Forming mode: cold roll forming
Working speed: 3-13m/min
Feeding direction: Left feeding
Main voltage: According to the customer demands
Main motor power: About 37KW
A.) Raw material mechanical property and Spec.:
Material:Q235
Steel coil bore: φ600
Steel coil weight: ≤10T
B.) Product Spec.:
Width of the product: 1220mm
Length of the product: 2000-4000mm
C.) Technology Spec.:
D.) Main parts data:
Control system:
Using Siemens PLC control system, touch screen, it can control the all parts of the whole line with manual or automatic.
