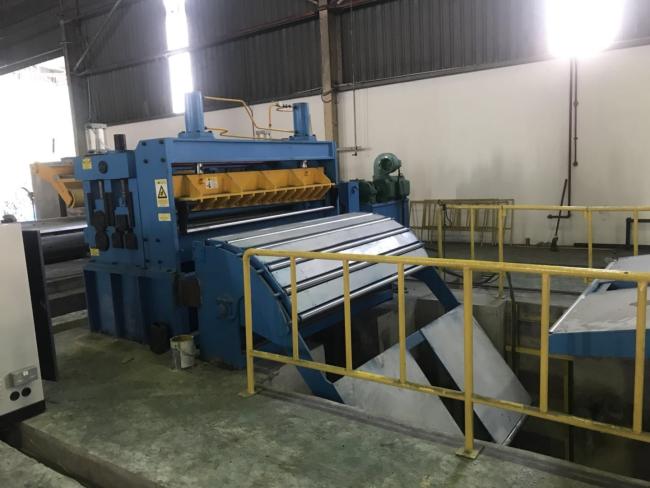

Simple Hydraulic Metal Slitting Line / Blue Sheet Metal Slitter Machine

Simple and Hydraulic Metal Slitting Line and sheet metal slitter machine

Product Application

Slitting line is used for steel plate coil to uncoiling, slitting, recoiling to required steel strips. This line apply to hot rolled carbon steel, tinplate, stainless steel and other different kinds of surface plated metal. For the user with a higher requirement, uncoiling with automatic edge aligning or centering is preferable, which has the advantage of easy entering coil, high working efficiency, improving cutting precision and protecting plate as well. EPC automatic edge control can be adopted as well, which can guarantee to recoil in tidiness, especially for the wider recoiling. This line is composed of an entry coil car, uncoiler, feeding in device, leveler, head shearing device, loop pit, side guide, slitting device, scrap winder, tension unit, recoiling machine, unloading device.etc.

Technical data

1. The shaft of pre-depiler: Φ95×2100mm

2. Dimension and material of pre-depiler: Φ200×3mm,65Mn quenched

3. Pre-depiler installing: Push one side of torii stand

4. Damping style: Torii stand beam compress, add wood and wool felt between the upper beam and bottom beam, add five rollers correcting roller.

5. Pressing power: Hydraulic cylinder Φ80×150mm two pcs, adjustable.

6. The material of five rollers correcting roller: 40Cr forged steel,quenched hardness HRC52-55°

7. The dimension of the Straighten roller:Φ200×2150mm

8. Recoiler,press and Subsection:

9. Structure and style:Gearbox drive,Hydraulic cylinder drive to angle sliding expansion and pinch

10. Dimension of recoiler shaft: Φ280×2100mm

11. Recoiler lump size: Φ610×2100mm

12. Expansion power: Cylinder size Φ200×100mm

13. Support bracket of recoiler shaft: Steel structure；Hydraulic cylinder Φ80×350mm

14. Press and Subsection shaft size: Φ95×2100mm

15. Subsection size and material: Φ200×3mm,65Mn quenched

16. Depress power of subsection: Hydraulic cylinder Φ80×350mm, adjustable

17. Cylinder size of pusher arm: Φ80×2100mm

18. Recoiling power: 160KW DC moto

19. Motor control: EUROTHERM 590 controller

20. Recoiling speed: 0～70m/min adjustable

21. Capacity of recoiling: 20000Kg

22. Unloading car:

23. Structure and style: welded steel structure with four wheels

24. Driving power: Hydraulic motor BM3-395.

25. Lifting power:Hydraulic cylinder Φ220×700mm

26. Capacity:20000Kg

27. Hydraulic station,control valve,One set Oil pipeline,pressure 16Mpa,Power:11KW-4

28. Oil tank capacity:450L

Components

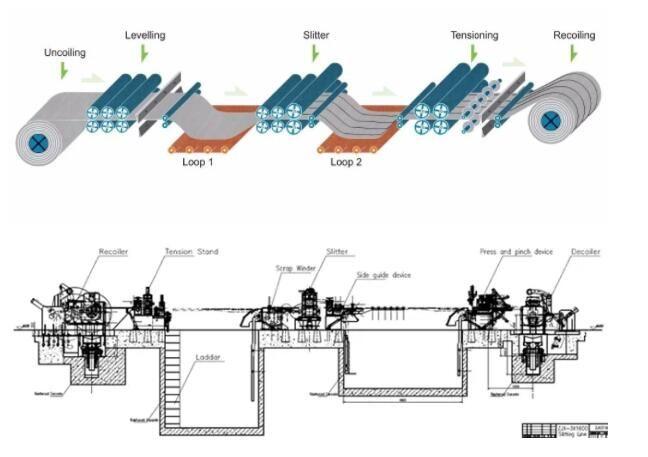

Working process:

Hydraulic decoiling → material storing → vertical guiding → shearing → correction → material storing → tensioning → rewinding
