PLC Control Rock Wool Production Line / PU Formed Sectional Sandwich Panel Line
PLC Control System PU Formed Sectional Sandwich Panel Production Line
The PU Sandwich Panel Production Line mainly consists of the two sets of Uncoiler, Steel Panel Transverse Cutting Machine, Steel Panel Surface PVC Film covering device, Roll forming machine (3 sets) and Platform (up and down), Pre-heating room, PU injecting section for foaming, Panel automatically cutting system and Cooling system conveyer, Automatic stacking machine;
The facing material of this panel can be PPGI, Aluminum foil, PVC sheets, etc and the core materials can be Polyurethane, Mineral Wool, Glass Wool, PIR, Phenolic or EPS.
Panel shape can be tailor-made according to customer's detailed requirements.
1 . Technical Parameter
Panel Material : 1. Type :Pre-painted steel; Aluminum; Platinum
2.Thickness :0.5-15 mm
3. Coil width :≤1250mm
4. Coil ID :508mm
5. Coil Weight : 5ton.7.5ton
| Model | Rock Wool sandwich panel |
| Length | Customized |
| Brand | FAMOUS |
| Effective width |
Wall Panel: 950mm 1150mm Roof Panel: 960mm 1050mm |
| Thickness | Color steel sheet: 0.3-1.2mm Rock wool : 50mm, 75mm, 100mm, 150mm, 200mm |
| Materials | Rock wool core material, Color steel sheet |
| The Rock Wool density | 80-150kg/m3 |
| Structure | Upper and lower layer: Color steel sheet |
| Steel sheet color | Ivory white, off white , sea blue, sky blue, lotus green, Grey brick, marble and wooden grain, bright red, etc... |
| Lifetime | 15~20 years |
| Character | Light in weight, heat & sound insulation, fire proof, green and environmental protection |

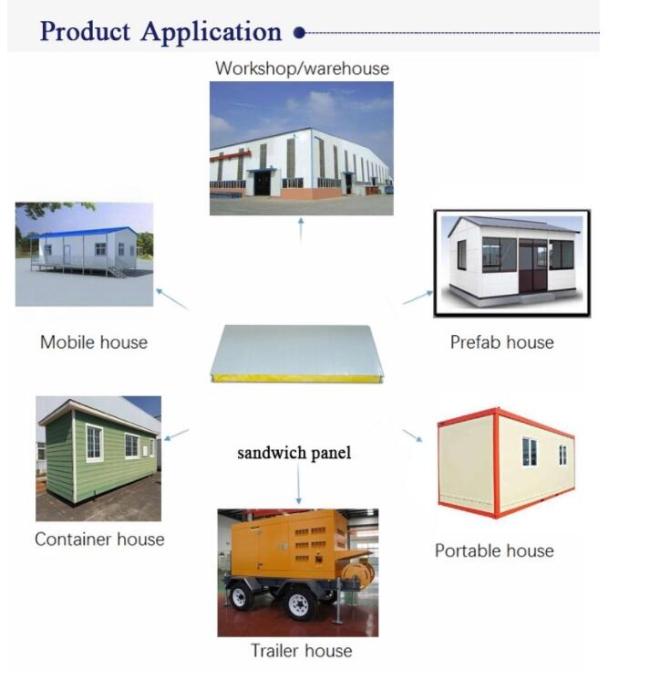

| Application | Gymnasium, warehouse, hospital, supermarket, shelter, commercial and industrial facilities |
2 . Main Component of line
7 . Mark machine (N.C) :1 sets
8 . Down panel roll former : 2 sets
9 . Double layer construction platform :1sets
10 . Double bridge device and conveyor : 1sets
11 . Other conveyor :1sets
12 . Hydraulic system :1sets
13 . Electrical control system :1sets
Pre-Heating system
1 .Heating house :1sets
2 .Pre-heating system: 1sets
3 .Electrical control system: 1sets
High Pressure foam Machine
1 .High pressure continuous foam machine :1sets
2 .Pursing output device :1sets
3 .Electrical control system :1sets
Drawing of PU Sandwich
3 . Simple PU Formed Sectional Sandwich Panel Production Line
Training and Installation
1 . We offer installation service local in paid, reasonable charge.
2 .QT test is welcome and professional.
3 . manual and using guide is optional if no visiting and no installation.
Certification and after service
1 . Match the technology standard, ISO producing certification
2 . CE certification
3 . 12 months warranty since the delivery. Board.
