Composite Plate Roofing Sheet Roll Forming Machine 24 M Double Belt Conveyor
24 m Double Belt Conveyor Rock Wool Sandwich Panel Production Line Precision

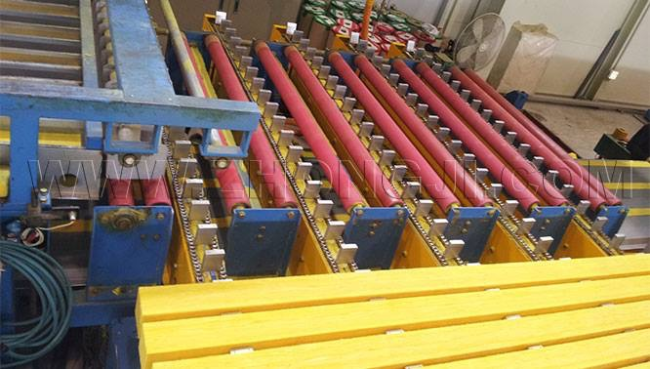

Main Features:
- Panel from the continuous sandwich panel production line is a composite structure consisting of two external facings and an insulating core. The core can be flexible with Polyurethane, Mineral Wool, Glass Wool, PIR, Phenolic or EPS. Various profiles are available according to customer's requirement with pre-painted steel sheets, PVC sheets, Aluminum paper or other similar supports;
- The continuous sandwich panel production line has a large scale production capacity. It allows a uniform distribution of the reactive mixture, a homogeneous density, suitable physical and mechanical characteristics. ;
- Roof panels, wall panels and door panels are made mainly of metal section support and polyurethane insulating mass;
- The capacity of the continuous line is 3-7m/min, length of the production line is 100m, the size of the final panel is 3-18m long, 900-1200mm wide, 20-150mm thick, the valid length of double belt conveyor is 24m, the total power is 300KW;
Main parameter :
A. Uncoiler
| Type of uncoiler: | Manual |
| Material of coil: | color coating coil |
| Thickness of sheet: | 0.3~0.8mm |
| Width of coil: | 1250mm |
| Weight of coil: | ≤ 5 t |
| Inside diameter of coil: | 480~520mm |
B. Into Shearing Device
| Type of Shearing: | Electrical Shearing |
| Driven Power: | 0.75 kwc. |
C. Forming Machine Itself
| Design of profile: | see list and drawings attached |
| Type of forming: | single layer forming |
| Stands of forming: | 16 stands |
| Roller diameter: | ¢80mm |
| Material of roller: | 45 steel heat treatment |
| Thickness of chromic plating of roller surface: | 0.05~0.06mm |
| Speed of forming: | 5~6.0m/min synchronies with panel machine |
| Type of synchronies: | electrical synchronies |
| Driven power: | 3.0 kw |
| Installation instruction: | two parts |
| Size of forming machine: | 11000×2200×2200mm |
| Weight of forming machine: | ~6 t |
D. Control Panel
| Electrical Voltage: | 380V/3Ph/50Hz |
| Type of controlling: | PLC (Mitsubishi Japan) |
| Touch screen: | Mt506 (Taiwan) |
| Speed measure device: | OMRoM (Japan) |
| Parts of electrical control system: | Simenz |
| Transducer: | (Mitsubishi Japan)/0.4KW (Made in China) |
| Model: | SPC Machine |
Working flow
Product Introduction
With reasonable structure, the machine is easy to operate with completed functions.
The plate is formed through such processes as feeding, profiling , dispensing, heating, trimming, gouging and cutting.
The machine adopts precise low-speed metering pump, frequency control (or stepless speed variation) with computer control and dose is accurate.
It can produce flat plate and corrugated sheet of many specifications and models, including the sandwich panel with thickness of 40-300mm and width of 950-1200mm, and corrugated high-intensive composite board with thickness of 40-300mm and width of 950-980mm.
This machine applies to color steel plate, aluminum plate, stainless steel plate and so on.
