380V Fireproof Rolling Shutter Strip Making Machine Fully Automatic Min 0.4mm

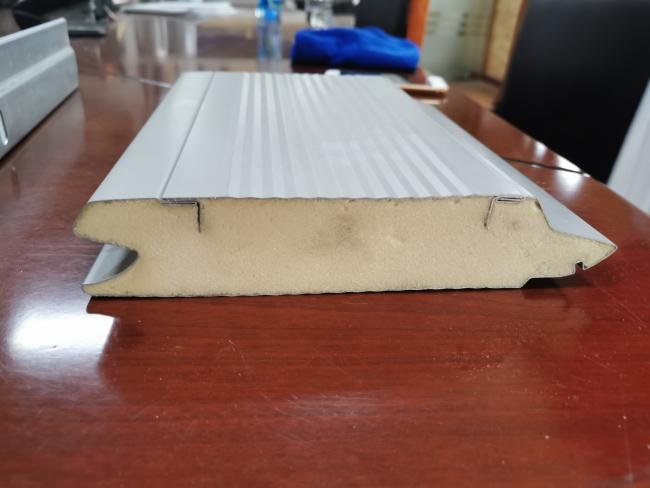

Fully Automatic PU fireproof shutter door slat roll forming machine
Production Description
Shutter door slat roll forming machine according to our knowledage there are serval types: European style shutter door machine, Australia style shutter door machine, shutter door with big holes, shutter door with perforation holes machine, shutter door U stud forming machine and others.
The roll forming machine can process Galvanised roller shutter door slat in bath and the desgin are in fashionable and widely used. Rolling Shutter Slat Machine With the highest security in rolling fire doors, Rolling Steel Doors, Fire Doors, rolling shutter, offshore rolling doors, offshore rolling fire doors, storm doors, Rolling steel hurricane doors, smoke doors, air-leakage doors, counter shutters, insulated doors, rolling sound doors, and storm shutters. rolling steel doors, rolling steel fire doors, rolling fire shutters, insulated fire doors, rolling steel grilles. Roller shutter garage doors are designed for use in industrial, commercial, airports, retail, hotel, institutional, malls and shopping centers.
The Chart of Process Flow:
manual uncoiler - roll forming machine - computer control system - hydraulic control system - cutting system - output table
Main Parameter
| No. | rolling shutter machine price, rolling shutter slats roll forming machine, roller shutter slats machine | |
| 1 | Install size | 5000mm*800mm*1200mm |
| 2 | Rollers | 12 rows |
| 3 | Rolling material | Forging Steel 45# |
| 4 | Rolling galvanization thickness | 0.05 mm |
| 5 | Material of the cutting blade | Cr12 |
| 6 | Productivity | 9-10m/min |
| 7 | Electric control system | PLC vector inverter |
| 8 | Main motor power | 2.2 KW |
| 9 | Hydraulic unit power | 1.5 KW |
| 10 | Raw material thickness | 0.4-0.6mm |
| 11 | Raw material width | 165mm |
Machine Components
| 1 | Decoiler | 1 set |
| 2 | Guide Feeding device | 1 set |
| 3 | main forming machine | 1 set |
| 4 | Foaming machine (just foamed one owned) | 1 set |
| 5 | Straighten device | 1 set |
| 6 | Punching device | 1 set |
| 7 | flying saw cutting machine | 1 set |
| 8 | finished products table | 1 set |
| 9 | PLC control system | 1 set |
| 10 | Spare Parts And Tools | 1 set |
Components and Technical Specification
1. Manual Uncoiler
Usage:It is used to support the steel coil and uncoil it in a turnable way. The steel coil is uncoiled by hand.
Loading capacity:5T
Inner diameter: 500-508mm
2. Feeding Table
Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.
3. Hydraulic System
Power:4kw,Hydraulic oil: 40#
hydraulic oil into the hydraulic oil tank ,the pump drive the cutter machine to begin the cutting job.
4. Computer Control Cabinet
The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use.
5. Cutting System:
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
6. Output Table
It adopts welded steel and supported roller to transmit the products,which is used to collect the finished products.
