120 Kw H Beam Welding Line / Welding Machine Assembly H Beam Metal Sheet
High quality Corrugated Web Steel Sheet H beam Assembly Welding Machine
Corrugated Web Steel Sheet H beam Assembly Welding Machine is made of shearing equipment, corrugated board moulding machine, plate transit vehicle, robotic automatic welding machine, section cut and export machine and etc.
This is fully automatic and very effecient production line with imported Italian robot. This machine has high quality,high efficiency,full-automation.
Basic specification:
| work-piece dimension | work-piece length | 4-15m | ||
| web thickness | 2-6mm | web height | 300-1500mm | |
| flange thickness | 10-30mm | flange height | 150-500mm | |
| welding way | double gun&double position welding at the same time | |||
| welding type | CO2 welding | |||
| cotrol method | PLC program control | |||
| welding speed | 700mm/min | |||
| total input power | 120kw | |||
| total equipment weight | about 41 ton | |||
| overall equipment dimension | 24m*6.5m*3.5m | |||
1 .H beam corrugated web horizontal assembly line includes: Cut to length machine, corrugated web forming machine, flange and corrugated web transmit machine, robot for welding h-beam, variable cross-section cutting machine, and stack export equipment.
2 .Use original welding robot from Italy for welding corrugated web H-beam.
3 .The robot will automatically control and complete the whole laser scan, double working area welding, welding gun change, variable cross-section cutting.
4 .The assembly line has high quality and efficiency, and is fully automatic.
5 .With this machine, the H-beam output is 10, 500 ton per shift.
Machine images:
Processing flow of the Gantry Cantilever H Beam Welding Machine:
Plate cutting ---Cutting lay-off---Hanger plate---T type assemblying---90°Turn---Hoisting-H beam assembly---Hoisting--- Welding of angle seam I--- 90° turn---Welding of angle seam II---180° Turn---Welding of angle seam III---90° turn---Welding of angle seam IV---Convery---Rectification of Flange slab I---90° turn---Hoisting---Rectification of Flange slab II---Convery---Welding Of rib according to practical---Convery---Surface Impeller blasting---Remove blast--- Convey---Oilpaint---Packing for leaving

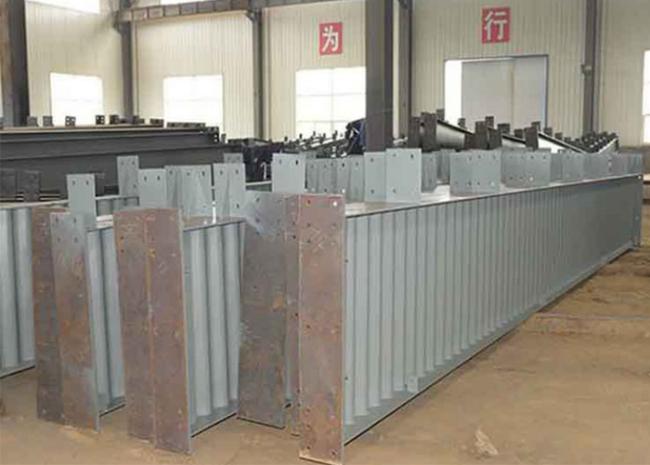

Finished products are as follow:
Service Commitment & Quality Assurance:
Installation: If necessary, engineer is available to service machinery overseas; but all the relevant cost and extra 100USD/day for our engineer will be paid by the buyer.
Warranty: 1 year since the machine leave seller's factory.
During the warranty period, it covers all spare parts of machines, if you find some spare parts were damaged, those new spare parts will be supplied free by us, but normal wear and tear excepted. And the freight should be bore equally by both parties.
