Corrugated Web Sheet H Beam Welding Line / Full Automatic Welding Machine
PLC control Corrugated Web Steel Sheet H beam automatic Welding Machine

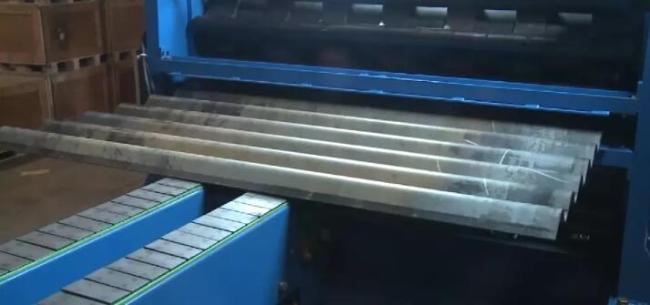

The corrugated web steel sheet H beam Welding Machine is made of shearing equipment, corrugated board moulding machine, plate transit vehicle, robotic automatic welding machine, section cut and export machine and etc.
This is fully automatic and very effecient production line with imported Italian robot. This machine has high quality,high efficiency,full-automation.
Technical Parameter
| Item | Parameter | ||
| Corrugated web forming machine | Suitable material | Yield strength | 345Map |
| Steel width | 500-1500mm | ||
| Steel thickness | 2-5mm | ||
| Profile dimension | Wave height | 40-50 | |
| Distance of waves | About 155 | ||
| Steel feeding mode | Conveyor | ||
| Corrugate web output mode | Transmission chain | ||
| Feeding power | 25kw | ||
| Total weight | About10000kgs | ||
| Dimension | 6235*1640*2500mm | ||
| Corrugated web H-beam automatic robot welding machine | Work-piece dimension | Work-piece length | 4000-20000mm |
| Web thickness | 2-5mm | ||
| Web height | 500-1500mm | ||
| Flange thickness | 10-30mm | ||
| Flange width | 150-500mm | ||

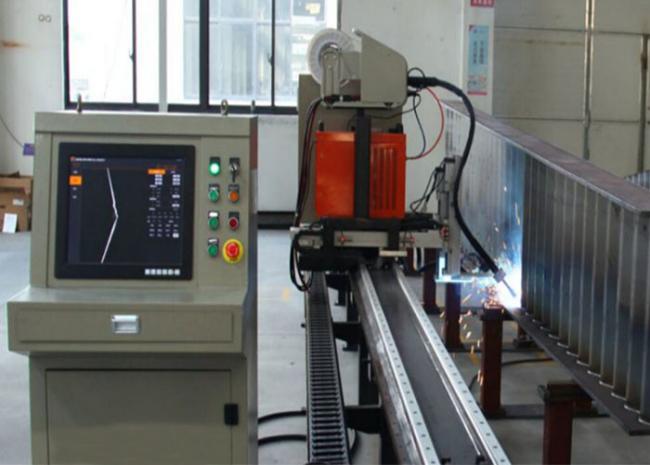

| Welding mode | Imported robot two position welding at the same time | ||
| Welding type | CO2 welding | ||
| Cutting type | Plasma cutting | ||
| Scanning speed | 900mm/s | ||
| Total power | 223kw | ||
| Dimension | 22000*6500*3500mm | ||
| Total weight | About 46000kgs |
||
Advantages of the corrugated web H beam welding machine:
1 .No need to spot weld the full length of H beam in assembling it only needs to do 30-50 mm of spot welding before enter the next stage welding.
2 . No need to do grinding before assembling.
3 . To do welding on both sides in a moving style which minimize the deformation of welding.
4 . It only needs turning over once to complete the two sides welding
5 . High automation in production which requires less operating people .
6 . It’s able to produce sectional inclined H beam.
Plate cutting ---Cutting lay-off---Hanger plate---T type assemblying---90°Turn---Hoisting-H beam assembly---Hoisting--- Welding of angle seam I--- 90° turn---Welding of angle seam II---180° Turn---Welding of angle seam III---90° turn---Welding of angle seam IV---Convery---Rectification of Flange slab I---90° turn---Hoisting---Rectification of Flange slab II---Convery---Welding Of rib according to practical---Convery---Surface Impeller blasting---Remove blast--- Convey---Oilpaint---Packing for leaving

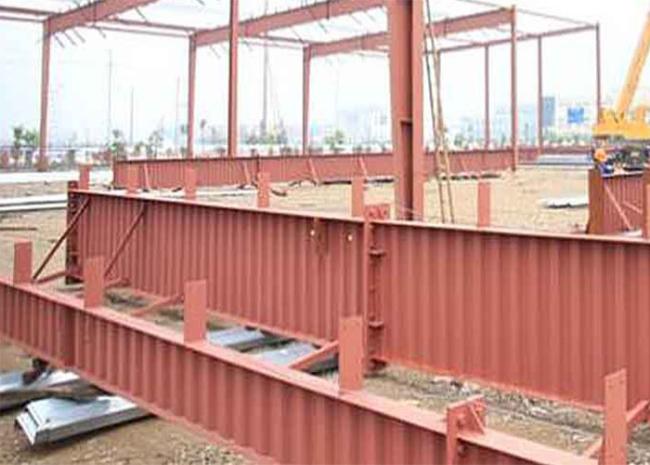

Finished products are as follow:
Service Commitment & Quality Assurance:
Installation: If necessary, engineer is available to service machinery overseas; but all the relevant cost and extra 100USD/day for our engineer will be paid by the buyer.
Warranty: 1 year since the machine leave seller's factory.
During the warranty period, it covers all spare parts of machines, if you find some spare parts were damaged, those new spare parts will be supplied free by us, but normal wear and tear excepted. And the freight should be bore equally by both parties.
