PLC Control Truss Girder Welding Machine Steel Bar Making 24 M Every Min

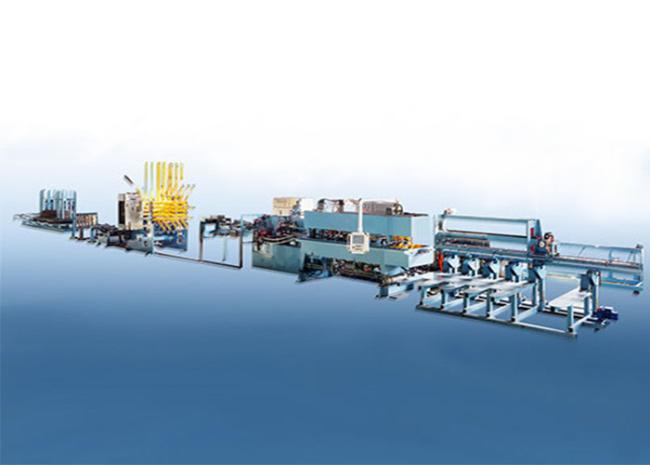

PLC control truss welding steel bar making line 24 m / min
Compared with the previous method, the welding of steel truss products in the steel truss welding production line greatly reduces the work of binding steel bars and thus reduces the labor cost. It greatly reducing the construction time is a milestone in the use of irreplaceable equipment of product module transformation in today's construction projects.
Our company is optimistic about the market prospect, firmly seize the development opportunity, set up a professional technical team, combined with a lot of experience accumulated in welding equipment, on the basis of independent research and development of xhj-350 automatic truss welding, and developed a new high-speed truss automatic welding production line.
Technical Parameters:
| Working voltage | 380V 50Hz |
| Number of work | Three phase four wir |
| The welding power | 4*250kw |
| The motor power | 90kw |
| Air pressure | 0.6-0.8MPa |
| Coolant temperature | ≤30℃ |
| The cooling flow rate | ＞150L/min |
| System hydraulic flow | 120L/min |
| System hydraulic pressure | ＜20Mpa |
| Truss height | Straight foot 70-270mm folding foot 70-220mm |
| The length of the truss | 2000mm-12000mm |
| Truss spacing | 200mm |
| Protective layer | 0mm 15mm 30mm |
| Cutting section cut | 200 integer times |
| Diameter of upper chord | 8-12mm |
| Diameter of lower chord | 6-12mm |
| Wire diameter | 4-6mm |
| Working speed | Maximum 24m/min, no limit |
Main features:
1 . Humanized design concept of machine operation. The specific parameters of truss products are input by human-machine interface, and PLC is controlled by central processing.
2 . The patented welding head independently developed by our company improves the utilization rate of welding head and reduces the production cost of users.
3 . The energy welding output of the welding joint is point-to-point, which ensures the welding quality and convenient debugging.
4 . The hydraulic system adopts the open installation mode, which is convenient for maintenance and reduces the leakage phenomenon in the hydraulic system.
5 . The water cooling system of welding transformer and welding head adopts our patented technology "Chen's water circulation cooling method", which enables the whole machine to run safely and reliably for a long time.
6 . Connecting rod mechanism is adopted at the folding part, which can continuously transport consistent curved bars at high speed.
7 . Sorting position of unloading, using servo positioning system, sorting and stacking is orderly and orderly.
Finished products are as follow:
Service Commitment & Quality Assurance:
Installation: If necessary, engineer is available to service machinery overseas; but all the relevant cost and extra 100USD/day for our engineer will be paid by the buyer.
Warranty: 1 year since the machine leave seller's factory.
During the warranty period, it covers all spare parts of machines, if you find some spare parts were damaged, those new spare parts will be supplied free by us, but normal wear and tear excepted. And the freight should be bore equally by both parties.
