Drainpipe Rain Downpipe Roll Forming Machine Steel Tile Production High Precision
Drainpipe Machine ,Rain Downpipe Downspout Roll Forming Machine
Downpipe Steel Round / Rectangle Type Roll Forming Machine is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste.
Equipment components:
Man-made uncoiler, Roll forming machine, computer control system, hydraulic control system, cutting
| 1.Technical parameter | ||||
| Roll Forming Machine | Specification | |||
Raw Material |
Type | Pre-painted steel coil & galvanized coils, Aluminum coil | ||
| Thickness | 0.3-0.6mm | |||
| Width | 333mm | |||
| Roller material | 45# steel , coated with Chrome | |||
| Roller | 16 rows | |||
| Shaft for rollers | Solid shaft with 70mm,processed with cylindrical grinder | |||
| Forming capacity | About 8-10m/min | |||
| Roller drive | Decelerating motor + Chain drive | |||
| Cutting mode | Hydraulic cutting | |||
| Cutter material | Cr12 mould steel | |||
| Control mode | PLC control system | |||
| Operating mode | Button + Touch screen | |||
| Main motor power(kw) | 3KW | |||
| Hydraulic power(kw) | 3 KW | |||
| Voltage | 380V 50Hz 3phases(can be design as your needs) | |||
| 2. Components of Machine | ||||
| Decoiler (manual decoiler and hydraulic decoiler for option) | 1set | |||
| Feeding & guiding device | 1set | |||
| Main roll forming machine | 1set | |||
| Hydraulic cutting system | 1set | |||
| Controlling system | 1set | |||
| Run out table (auto. Stacker for option) | 1set | |||
Terms
1) FOB Shanghai
2) Payment: 30% T/T deposit, and pay the balance before shipping.
3) Delivery time: 45-60 days.
4) Guarantee period: 12 months limited warranty starting from date of delivery. Shipping cost for parts to be replaced during warranty period have to be borne by the customer.
5) Spare parts: bearings, buttons, chains, magnetic valve, protective tube etc.
Pre-sales service
* Inquiry and consulting support.
* Sample testing support.
* if you have any inquiry can be send it's the details for us ,we will send the quotation for you
* if you have any questions you can feel free to contact us .we are 24 hours online and answer you soon
* IF you have enough time we can invit you visit our Factory.
After-sales service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
We supply one year guarantee for the machine. The parts of the roll forming machine are free to send you and you will pay the cost of freight. And you can aslo solve it if you ordered more parts for your rol forming machine
We supply all life tech support of our roll forming machines, Any questions, you can contact us
( I suggest that whatsapp or wechat is good. Because i can get your words timely) Important thing, you can write mail to us.

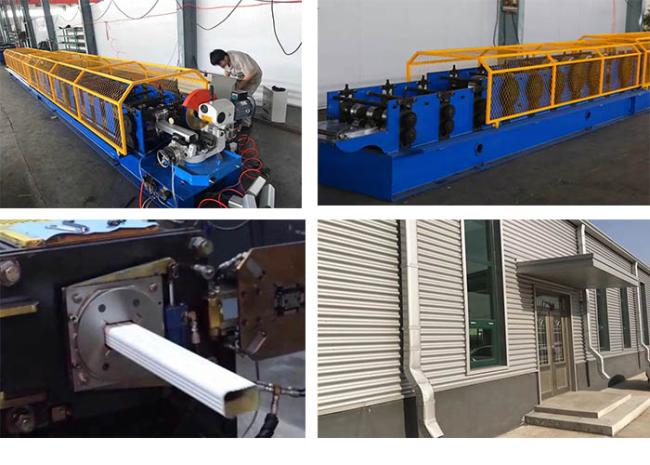

Details of Machine and Products

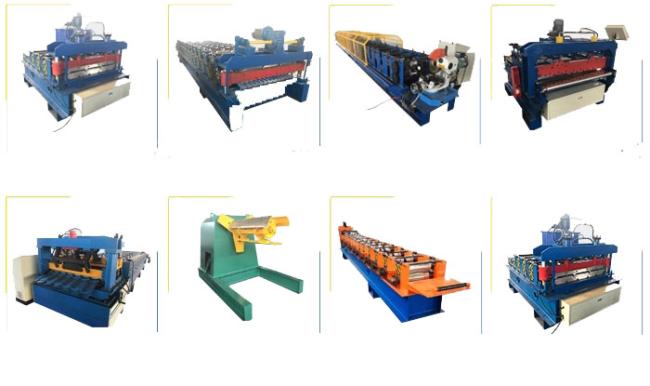

Our main products include
|
Cable tray roll forming machine
|
Ridge Tile Forming Machine
|
|
guardrail roll forming amchine
|
Metal Roofing Roll Forming Machine
|
|
Floor Deck Roll Forming Machine
|
Double Layer Roofing Tile Roll Forming Machine
|
|
Door frame roll forming machine
|
peach post roll forming machine
|
|
Bending Machine
|
C/Z/U purlin roll forming machine
|
|
silo roll forming machine
|
down pipe roll forming machine
|
