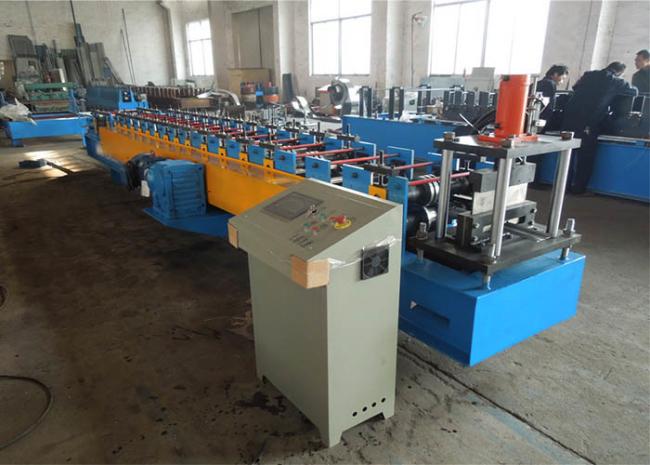

Cable Tray Manufacturing Machine PLC Control 28 Forming Stations 6 - 8m Every Min
Cable Tray Roll Forming Machine PLC control 28 forming stations 6 - 8m / min
Our cable tray forming machine has many advantages of stablity, efficiency, material saving, low noise. And our machines work within high speed which improves its productivity greatly. Besides, Its products have high quality and fashionable styles. It is widely used in stores, warehouses, buildings, welcomed by customers throughout the world. The machines can be designed to produce different shapes and sizes according to customer's requirements.
Machine specifications:
| Material feeding thickness | Forming specificaiton | Forming stations | The motor power | The main function |
| 1.5- 3.0mm | 100*40-600*150mm | 28 | 15kw | Making cable tray |
Working process:
Feeding → Hydraulic punching → Guiding → Roll forming → Hydraulic cutting → Carrier out of product
Configuration:
- Manually inflatable rack
- 1 set of hydraulic punching , press, cutting device
1 )set of main forming machine
- 1 set of support frame

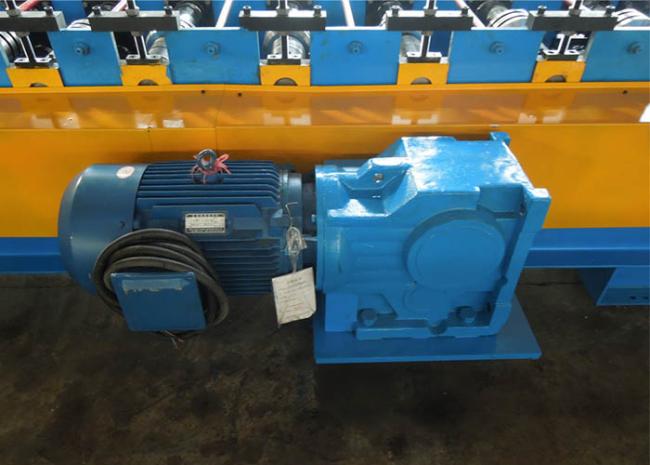

- Forming with 28 working process, using chain wheel transmission
- Size: 20000×1700×950mm
2) Forming speed: 6-8m/min; Forming model: 100*40-600*150

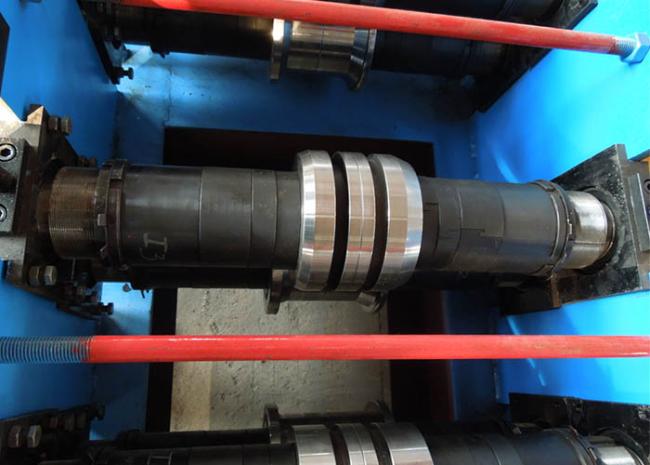

- Forming wheel mould material is GCr15; Heat treatment hardness is HRC52~55
3) Shaft size is¢85; material is 45#
- Hydraulic punching and cutting, with one set of 15KW hydraulic motor, 3 sets of punching moulds and 1 set of cutting mould.
- Automatic control: touch screen, double encoder, PLC, pneumatic control.
- Pressing R part width adjustment: up and down press roller use electric adjustment and encoder control.
- Pressing straight section width adjustment: two sides of double wall move at the same time, using electric adjustment and encoder control.
- With flat device, roller diameter is ¢105
- The frame with H steel welding; the top tight type roller
- The run out table with 6m roller type
- 1 set of Hydraulic expansion and horizontal type rack
- Weight : 18T
Detailed information:
- Forming with 28 working process, using chain wheel transmission
- Rolling reinforcement with a removable reinforced roller; The max width is 550mm; roller diameter is ¢165
After-sale service:
1 . Installation and training of roof forming machine:
a . If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
b . Without visiting, we will send you user manual and video to teach you to install and operate.
c . If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
2 . After Service of roof forming machine:
a . One year guarantee for whole roof forming machine.
b . 24 hours technical support by email or calling
c . If there is any problem found of the roof forming machine, we will repair it for free in one year.
