Wall Roof Tile Sawing PU Sandwich Panel Line 3 - 8m / Min High Efficiency

Sawing PU sandwich wall roof panel production line 3 - 8m / min

Our machine has high grade quality and reasonable price. The PU sandwich panel production lines are well known in various countries (especially Russia, middle east, China ) of the world, and we hope that they will be meeting the same favor in your esteemed country. And our company can customize special type,the quality can be guaranteed because we provide free after-sale service.

Machine parameters:

Product Feature

Good Extensibility:Dying,stacking,and packaging device unit can be added.The line is suitable for automatic production of double-sided color plate sandwich panel,color plate and soft surface layer sandwich,all kinds of sandwich panel;

Technical advantages: The whole production line is designed as per European technical date,cost reduced technical transformation,which has high stiffness,strength,accuracy,and stability;

The whole set of electrical control adopts world’s leading system,which has reliable operation and low failure rate,finished products have high flatness,homogeneous core material density;

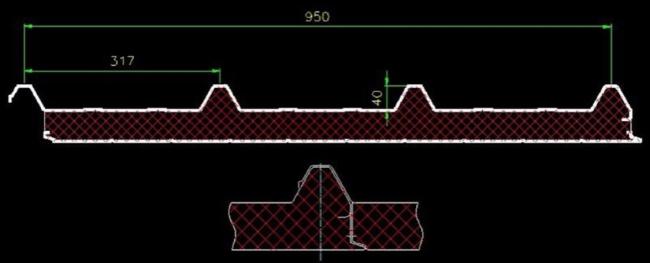

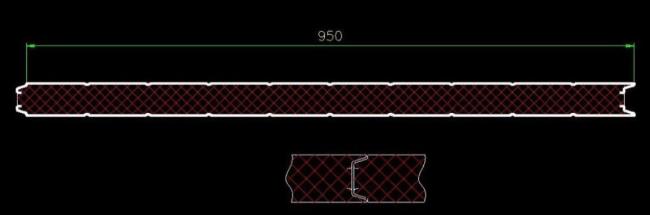

The capacity of the continuous line is 3-8m/min, the total power is 300KW, length of the production line is 100m, the valid length of double belt conveyor is 24m, the size of the finished panel is 3-18m long, 900-1200mm wide, 20-150mm thick as the image down below:

Welcome to send us your profile drawing

Details abt the PU sandwich panel production line:

1 .Panel from the continuous sandwich panel production line is a composite structure consisting of two external facings and an insulating core. The core can be flexible with Polyurethane, Mineral Wool, Glass Wool, PIR, Phenolic or EPS. Various profiles are available according to customer's requirement with pre-painted steel sheets, PVC sheets, Aluminum paper or other similar supports;
2 .The continuous sandwich panel production line has a large scale production capacity. It allows a uniform distribution of the reactive mixture, a homogeneous density, suitable physical and mechanical characteristics;
3 .Roof panels, wall panels and door panels are made mainly of metal section support and polyurethane insulating mass;
