380V 50Hz Gutter Bender Machine / Rain Gutter Equipment Custom Full Automatic

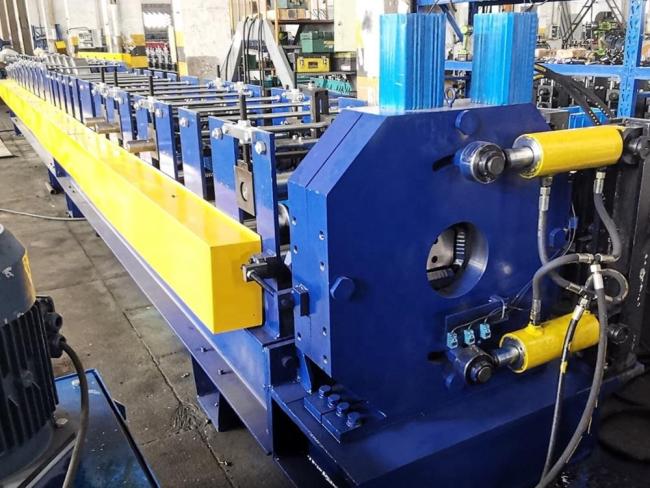

Good quality rain gutter square downpipe roll forming machine Custom Automatic
Product description
The downspout (Downpipe) is a pipe for conveying rainwater from a roof or gutter to the ground, also referred to as Leaderpipe, Downpipe, or Drainspout. The downspouts are more and more widely applied in rain water storage solutions. Downspout disconnection (sometimes called roof leader disconnection) represents a cost-effective on-site alternative for reducing the volume and cost of stormwater that requires public management. Runoff from residential rooftops is collected by eaves troughs, which are installed along the edge of the roofline. Water collected in the eaves trough is conveyed to ground level by one or more downspouts. Downspouts may then connect directly into the storm sewer system into a combined storm and sanitary sewer system. Disconnecting downspouts brings a number of economic and environmental benefits to the municipality and the homeowner.
Technical Parameters:
|
NO
|
Item
|
Description
|
|
1
|
Product' sizes
|
According to customer's request
|
|
2
|
GProcessing material
|
GI
|
|
3
|
Processing thickness
|
0.8-1.5mm
|
|
4
|
22Main motor power
|
7.5kw
|
|
5
|
Power of hydraulic station
|
5.5kw
|
|
6
|
Quantity of roller stations
|
18
|
|
7
|
Production speed
|
Approximate 15-25 m/min
|
|
8
|
Diameter of shafts
|
Φ80mm
|
|
9
|
Material of rollers
|
Cr12 steel with vacuum heat treatment HRC57°-60°
|
|
10
|
Material of shafts
|
45# steel quenched and tempered
|
|
11
|
Material of cutting blades
|
Cr12 mould steel with quenched treatment
|
|
12
|
Size of machine
|
Approximate
7500mm(L)×1600mm(W)×1500mm(H)
|
|
13
|
Theoretical weight
|
Approximate 7000KGS
|
|
14
|
Driven method
|
chain drive
|
|
15
|
Control system
|
PLC control |
|
16
|
Cut mode
|
Hydraulic profile cutting
|
|
17
|
Power supply
|
380V 50HZ 3Phases or at buyer's requirement
|
Main Components
| Commodity & Description | Quantity |
| manual uncoiler | 1 set |
| feed and guiding device | 1 set |
| Main roll forming machine | 1 set |
| Straighten device | 1 set |
| Hydraulic cutting equipment | 1 set |
| Output table | 1 set |
| Main drive | 1 set |
| Hydraulic system | 1 set |
| Controlling system (including cabinet) | 1 set |
| Downpipe elbow bending machine | 1 set |
| Seaming machine | 1 set |
Working Flow of Roll Forming Machine
De-coiler—→Level device —→Main roll forming machine—→Hydraulic cutting—→ Run out table
Pre-sales service
* Inquiry and consulting support.
* Sample testing support.
* if you have any inquiry can be send it's the details for us
we will send the quotation for you
* if you have any questions you can feel free to contact us
we are 24 hours online and answer you soon
* IF you have enough time we can invit you visit our Factory.
After-sales service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
We supply one year guarantee for the machine. The parts of the roll forming machine are free to send you and
you will pay the cost of freight. And you can aslo solve it if you ordered more parts for your rol forming machine
We supply all life tech support of our roll forming machines, Any questions, you can contact me by whatsapp.:+0086 17768307386
( I suggest that whatsapp or wechat is good. Because i can get your words timely) Important thing, you can write mail to me.
