Corrugated Sheet Cable Tray Roll Forming Machine Galvanzied Stainless Steel
High precision Cable Tray Roll Forming Machine Galvanzied Stainless Steel
Our cable tray forming machine has many advantages of stablity, efficiency, material saving, low noise. And our machines work within high speed which improves its productivity greatly. Besides, Its products have high quality and fashionable styles. It is widely used in stores, warehouses, buildings, welcomed by customers throughout the world. The machines can be designed to produce different shapes and sizes according to customer's requirements.
Main Technical Parameters:
| Material | Galvanzied steel; Stainless steel; Aluminium sheet and coil |
| Cable tray type | Trough type, cable ladder, trays type |
| Cable tray size | 100-600mm for width; 50-200mm for height |
| Thickness | 0.6-2.0mm |
| Feeding width | 200-1050mm |
| Strength | Q235Mpa |
| Speed | 0-10m/min |
| Processing precisions | +/-0.5mm |
| Size changing way | full automatic |
| Power | 4*4kw+7.5kw+9kw |
| Roller material | #45 forged steel with hard chrome treatment |
| Cut blade material | Cr12 with quenching treatment |
| Dimension | 20000*2500*1500mm (L*W*H) |
| Total weight | about 30tons |
Working process:
Feeding → Hydraulic punching → Guiding → Roll forming → Hydraulic cutting → Carrier out of product
Detailed information:

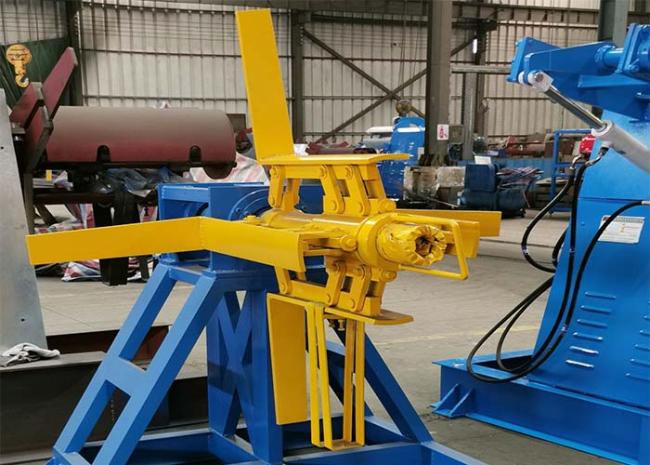

Decoiler:
. Capacity: 3T, 5T, 10T
. Manual / Hydraulic decoiler, loading car is optional
The perforated cable tray roll forming machine is a duplex and high performance production line for manufacture C section profile with allotted holes for supporting electric wiring in commercial and industrial construction. Usually it made from middle gauge steel thickness from 0.6-2.0mm.
The perforated cable tray roll forming machine successfully integrated hydraulic punching device or high speed press machine for radiation holes on cable tray. Also the telescope shaft is available to rapid size changeover without toll change. Pre-cutting device equipped for cut off finished products.

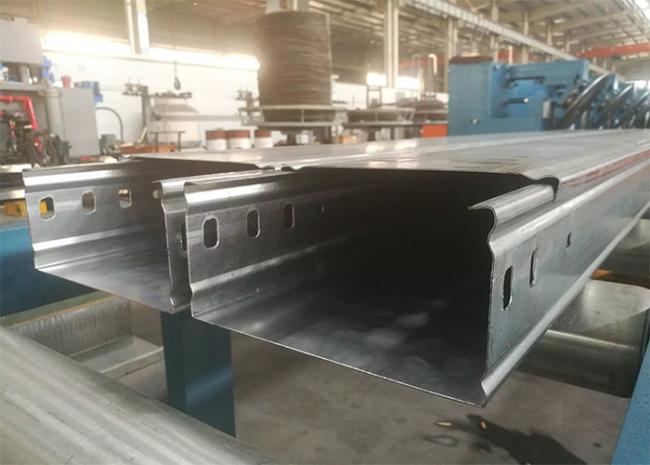

Products are as follow:
After-sale service:
1 . Installation and training of roof forming machine:
a . If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
b . Without visiting, we will send you user manual and video to teach you to install and operate.
c . If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
2 . After Service of roof forming machine:
a . One year guarantee for whole roof forming machine.
b . 24 hours technical support by email or calling
c . If there is any problem found of the roof forming machine, we will repair it for free in one year.
