Downspout Stainless Steel Pipe Bending Machine Thickness 0.4 - 3mm Industrial
PLC Control Rain Water Downspout Roll Forming Machine with Thickness 0.4-3mm
Product Application
Metal Roofing Rain Guttering Profile Gutters Roll Forming Machine can bend the roll formed pipe, and let the drainpipe and the bending connect to be the whole.The product after roll forming has long working time than the tranditional ppc pipe, and not aging. It can make the project more integrate, and help to enhance the image of the all project.

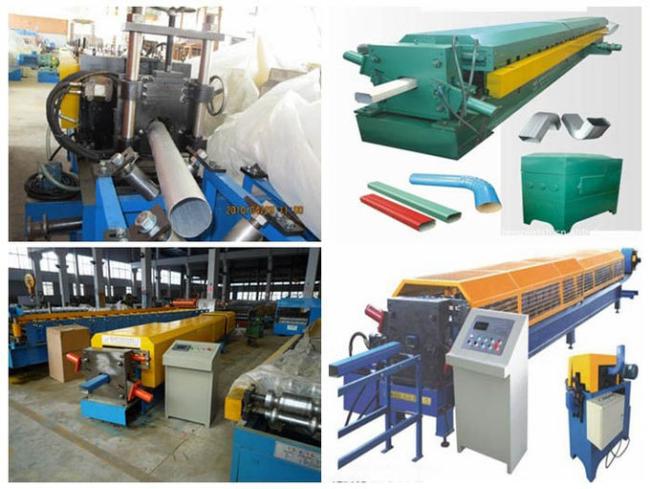

Metal Roofing Rain Guttering Profile Gutters Roll Forming Machine is composed of uncoiler, the feed leading table, the main machine, the formation cutting device, hydraulic system, control system and the product bracket.
Working Flow of Square Pipe
De-coiler—→Level device —→Main roll forming machine—→Hydraulic cutting—→ Run out table
Description
| Wall Thickness | 0.4-2.5mm | Wall Thickness | 0.5-3mm |
| Pipe diameter | 10-45mm | Pipe diameter | 10-60mm |
| Round Pipe | Max diameter -45mm Min-10mm | Round Pipe | Max diameter -60mm Min-10mm |
| Square pipe | Max diameter -35*35mm Min-10*10mm | Square pipe | Max diameter -47*47mm Min-10*10mm |
| Rectangle | Max diameter -30*40mm Min -10*10mm | Rectangle | Max diameter -30*60mm Min -10*10mm |
| Wall Thickness | 1.0-3.5mm | Wall Thickness | 1.0-5.0mm |
| Pipe diameter | 20-89mm | Pipe diameter | 20-127mm |
| Round Pipe | Max diameter -90mm Min-20mm | Round Pipe | Max diameter -127mm Min-20mm |
| Square pipe | Max diameter -70*70mm Min-20*20mm | Square pipe | Max diameter -100*100mm Min-20*20mm |
| Rectangle | Max diameter -50*90mm, 40-100, 30*110 Min -20*20mm | Rectangle | Max diameter -110*90mm, 800*120, 70*130mm Min -20*20mm |
Advantage
1. Reasonable Price
2. High Quality
3. 12 Months Warranty
4. More Than 20 Years Experience
5. Durable
6. Reliable
During the warranty period, maintain and change the spare parts for the customers for free (except for the instrument damage caused by human factors or natural disasters. ) And provide technical support for life-long.
We can design and manufacture the machine according to clients' request! Our machines have passed CE, Guaranteed quality. Please send us the enquiry with Profile Drawing.
Our Services
1. Before-sales
- We will answer the customer asap. (within 24hours)
- We can design the machine according to customer’s detail requests.
2. After-service:
- In correct operation & maintaining, the machine is guaranteed for one year
- If necessary, we will dispatch technicians to install and commissioning, and also our technicians will teach and training the customer’s workers to use the machine better.
- We will provide long-term technical assistance.
We supply all life tech support of our roll forming machines, Any questions, you can contact me by whatsapp.:+0086 17768307386
( I suggest that whatsapp or wechat is good. Because i can get your words timely) Important thing, you can write mail to me.
