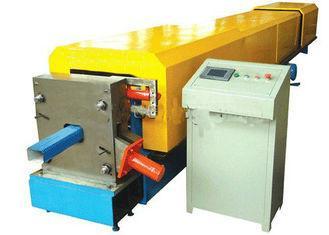

Durable Full Automatic Downspout Roll Forming Machine With PLC Control
Durable Full Automatic Downspout Roll Forming Machine with PLC control
Product Application
This downpipe roll forming machine is for steel sheet or aluminum sheet cold-form industries. It can roll-forming the steel sheet according to the customer’s requirement continuously, automatically cut to length.The equipment adopts PLC control, AC frequency and adjusting the speed technology, and it realizes the continuous automatically production, therefore, it is really a new type of energy-saving and high-effective producing equipment for the metal downpipe.
The Chart of Process Flow

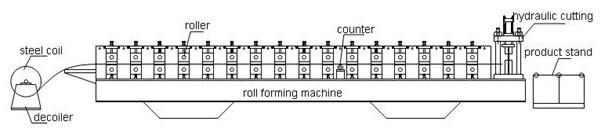

Manual Uncoiler—Roll Forming—Cutting—out table
Decoiler
| Type | Manual type(standard) | Hydraulic type(option) |
| Photo | ||
| Width | 500mm | 600mm |
| Capacity | Max 5tons | From 5-15 tons |
| Inner diameter | φ450-550mm | φ450-550mm |
| Outer diameter | φ1500mm | φ1800mm |
roll forming
| Item | Parameter detail | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Processing Material | GI and PPGI | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Material thickness | 0.25-0.8mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Machine frame | 360#H steel, Adopt diagonal line welding, leveling instrument measurement to make sure the final frame is high-precision | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Machine siding panel |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Forming stations | 16-22 stations(according to the profiles) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Machine rollers | high grade No.45 forged steel,plated hard chroming with thickness 0.05mm Processing way:cutting--drilling--CNC lathing--quenching--CNC lathing--chroming |
||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Machine Shaft | φ70-80mm high garde No.45 steel after treatment, | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Machine spacers | CNC lathing in high-precision | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Machine bearings | China Haerbin bearing or SKF international bearing(option) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Driving system | 1 inch chain or gear box(option) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Machine power | 5.5kw-11kw(according to the profiles) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Machine working speed | 8-12m/min or 10-30m/min(option) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Machine adjust type | After machine installation, we will test it ourselves, compare with the profile drawing, the difference is controlled in 0.5mm
Decoiler
roll forming
|
Cutting
| Type | Mould type |
| Blade material | Cr12mov quenching and grinding |
| Frame processing | the whole bottom frame is grinding for high-precision |
| Blade processing | wire-electrode cutting, but the upper balde can not be straight. this is technology |
| Working | Hydraulic type |
Stacker
| Type | Manual | Auto(option) |
| Length | 2 pieces | 6m or 12m |
PLC
| Main item | Parameter detail |
| PLC | Delta(standard) or according to your request |
| Inverter | China brand(standard) or according to your request |
| Touch screen | Mcgs(standard) or according to your request |
| Encoder | China brand(standard) or according to your request |
| Voltage/HZ/Phase | 380v/50-60hz/3phase |
Package Type:
Nude, the computer controlling part is packed with water proof cloth.
The adjustable roll forming machine packed 20 feet container, it fit for ocean shipping. we have good relationship wih the shipping agent to get good freight price for you and you can also find yourself at your side.
