600mm Effective Width Floor Deck Roll Forming Machine CE Certificated
600mm Effective Width Metal Floor Decking Forming machine CE Certificated
The metal deck produced by floor decking roll forming line has high strength with big wave length. It adheres well to concrete. Used on high building, it not only saves steel mold plate, but also reduces the weight of storey. With the same bearing capacity, it economized steel and cuts down investment accordingly.

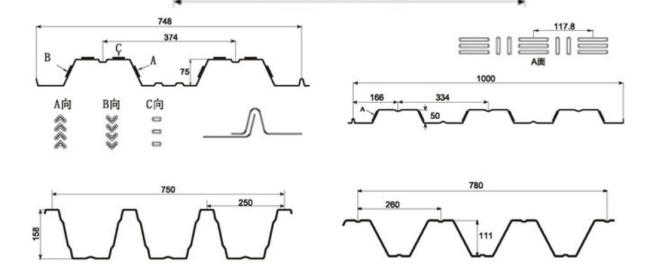

Technical Parameters of Floor Decking:
| 1 | Suitable Material | Colored Steel plate, Galvanized steel |
| 2 | Width of the raw material | According to the final profile |
| 3 | Thickness | 0.8mm-1.2mm |
| No | Item | Parameter |
| 01 | Material feeding width | 925~1250mm |
| 02 | Material thickness | 0.8~1.3mm |
| 03 | Uncoiler | Manual Uncoiler |
| 04 | Loading weight | 5ton |
| 05 | Forming speed | 8-15m/min |
| 06 | Forming Steps | 26~35 stations |
| 07 | Shafts materials | 45# high quality steel |
| 08 | Shafts diameter | 76mm |
| 09 | Roller materials | 45# high quality steel, hard chrome coated 0.05mm |
| 10 | Transmission | Chains-sprockets |
| 11 | Main motor power | 2x11kw |
| 12 | Cutting blade | Cr12 with quenched treatment 60-62 |
| 13 | Hydraulic power | 4kw |
| 14 | This machine will automatically measure and cut the length and quantity as per clients set on the PLC touch screen | |
| 15 | Length cut Accuracy | ±1mm |
| 16 | PLC control system | Omron Japan |
| 17 | Frequency converter | TAIAN |
| 18 | Screen | TouchWin |
| 19 | Voltage | 380V/50HZ/3Phase |
| 20 | Total weight | Approx 15t |
| 21 | Overall dimensions | 15600x1500x1300mm |

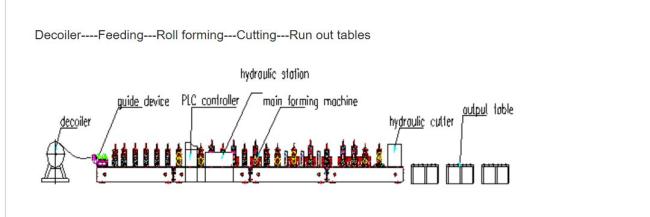

Working flow:
Machine loading, packing and shipping
Usually the machies will be transported to the customer's workshop by shipping in containers. Sometimes, it aslo can be deliveried by train containers.
The container that we are use are commonly 20 feet and 40 feet containers. 2 feet and 40 feet high containers and top open containers are used as well.
It depends on the machines the customer ordered. We will try our best to find a most economical way for you.
