Solar Photovoltaic Support Rack Roll Forming Machinery 76mm Shafts Diameter
Strut Cold Roll Forming Machine , Steel Roll FormingMachine With CE Standard
The application of pv support system in solar panel support is much more than simple production and installation.
Solar panels can also move flexibly according to the sun's rays and seasons.
Like just when installation, the slope of each solar panels can be via mobile fasteners, cant adjust to adapt to the different angles of light, again through the fastening make solar panels accurate fixed in the location specified.
| No. | Item | Description |
| 1 | Dimension | 30m x 3m x 2.5m (L*W*H) |
| 2 | Raw material | Mild steel, Galvanized steel coil or strip |
| 3 | Coil width | 300 mm max |
| 4 | Thickness | 1.5-2.5 mm |
| 5 | Forming stations | 20 stations, gearbox transmission |
| 6 | Total power | 45KW AC motor |
| 7 | Track cutting motor | Track cutting motor |
| 8 | Forming speed | 20m/min max |
| 9 | Roller | GCr12MoV Steel, quenched, coated with hard chrome |
| 10 | Shaft | 45# steel with tempering heat-treatment |
| 11 | Shaft diameter | Dia 80mm |
| 12 | Roller station | 20 stations |
| 13 | production speed | 8-10m/min |
| 14 | Hydraulic power | 5.5 KW |
| 15 | Voltage | 380V/50Hz/3Ph |
| 16 | Control system | PLC control system |
Working process:
Detailed information:
Decoiler
Inner Diameter: Φ500 – Φ550 mm
Out Diameter: 1000 mm
Max. Loading Capacity: 5000 kg
Type: hydraulic
Power:7.5kw
Control system: PLC
roll forming machine
Rolled Material: Cold Rolled Steel Sheet
Material Thickness: 1-2mm
Rollers: 22Groups
Material for Rollers: GCr15 steel after treatment
Hardness for Heat Treatment: HRC55 – 60
Frame panel thickness: 20mm
Bottom frame: 40# H-section steel
Motor Power:11 kw x2
Driven type: double sides double row 1.5＂Chain

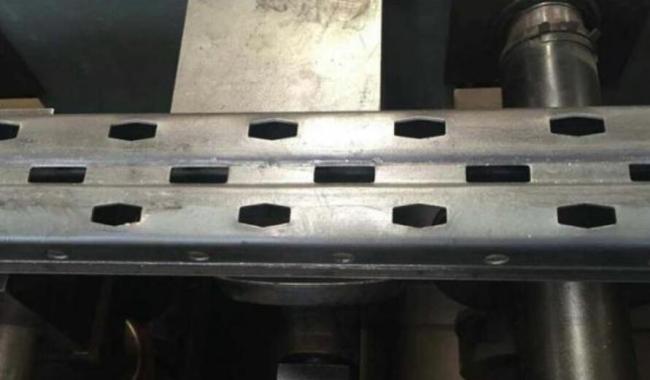

Punching device
| Item | Parameter detail |
| Frame processing | the whole levelling surface is made by drilling machine |
| Mould material | Cr12mov |
| Mould processing | wire eletrode-cutting for the mould shape, it will save pressure |
| Hole size | According to your request |
| Hole number | According to your request |
| Pressure | 20Mpa |
Cutting device
| Type | Pre-cutting |
| Blade material | Cr12mov quenching and grinding |
| Frame processing | the whole bottom frame is grinding for high-precision |
| Blade processing | wire-electrode cutting, but the final product is clean after cutting, the the product shape this is technology |
| Working |
Hydraulic type
|

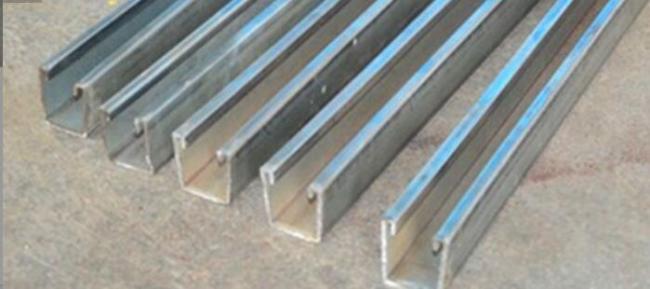

Solar mounting bracket roll former for production different size solar pv support
Common specifications for solar brackets (unspecified specifications can be customized)
Internal crimping C-shaped steel U-shaped steel reinforced tooth: hot-dip galvanized, hot dip galvanized
41*30*10*8*(1.5-2.5) 50*75*15*9*(2.0-3.0)mm
41*21*10*7 *(1.5-2.5) 41*41*10*8*(1.5-2.5)mm
41*52*10*7*(1.5-2.5) 41*62*10*8*(1.5-3.0)mm
41*72*10*8*(1.5-3.0) 41*82*10*8*(1.5-3.0)mm
60*60*15*10*(1.5-3.0) 60*80*15*10* (1.5-3.0)mm
60*70*10*8* (1.5-3.5) 100*50*15*10*(1.5-3.0)mm
C-shaped steel Z-shaped steel, U-shaped steel
60*40*(1.5-3.5) 57*30*10* (1.5-3)mm
68*50*(1.5-3.5) 40*60*15*(1.0-3.0)mm
80*40*15*(1.5-3.0 60*50*15* (1.5-3.5)mm
100*50*20*(1.0-4.5) 100*40*15*(1.5-3.5)mm
