Door Frame Roll Forming Machine Thickness Range 0.4 - 1.2mm Galvanize / Aluminium
Door Frame Roll Forming Machine Thickness Range 0.4 - 1.2mm Galvanize / Aluminium
Shutter door slat roll forming machine there are serval types: European style shutter door machine, Australia style shutter door machine, shutter door with big holes, shutter door with perforation holes machine, shutter door U stud forming machine and others. No matter which type is made by the following process:decoiler→ sutomatic punching →feeder guide →roll forming→ flying cutting saw →run out table.
Shutters Slat Shaping Machine For Shutter Doors Technical Parameter
| Item | Specification | |
|
Material |
Type | Pre-painted steel coil & galvanized coils |
| Thickness | 0.4-1.2 mm | |
| Yield strength | 235 | |
| Roller material | No.45 forged steel, be plated with hard chrome 0.05mm thickness | |
| Forming speed | About 10-12m/min | |
| Output speed | 8-10m/min | |
| Speed adjusting mode | AC Frequency | |
| Cutting mode | Hydraulic cutting | |
| Cutter material | Cr12 mould steel | |
| Length measurement | Encoder | |
| Control mode | Mitsubishi PLC | |
| Main motor power | 7.5KW | |
| Hydraulic station motor power | 2.2 KW | |
ISO CE Shutters Frame Shaping Machine For Shutter Doors Components
| Decoiler | 1set |
| Feeding & guiding device | 1set |
| Main roll forming machine | 1set |
| Hydraulic cutting system | 1set |
| Controlling system | 1set |
| Run out table | 1set |

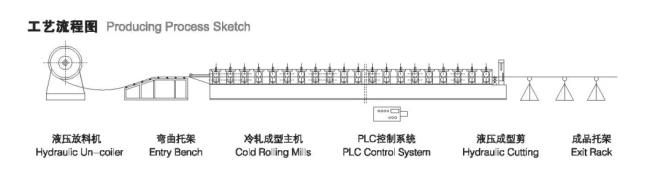

Door Frame Forming Machine Process Flow:
Decoiler -- Feeding & Guiding -- Roll forming---Hydraulic Cutting – product to run out table

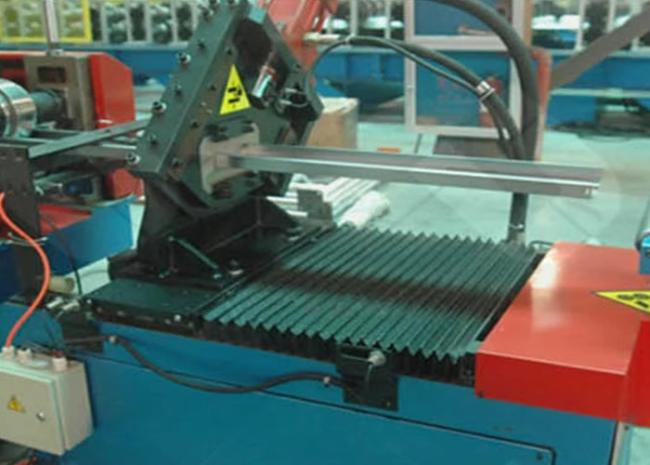

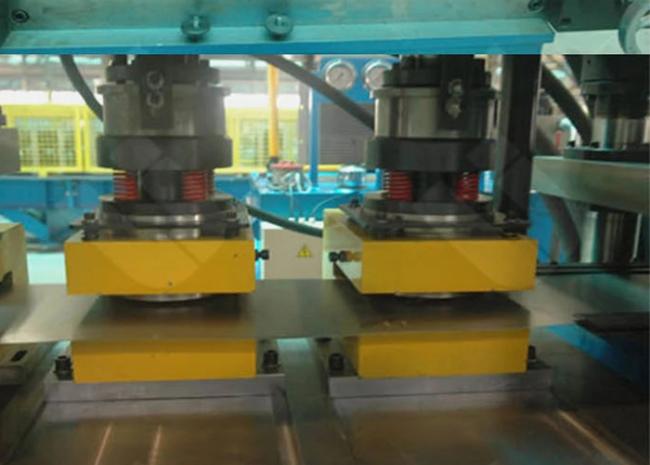

Details Shows
Our Services
1 . Free technical support and free accessories supply.
2 . Engineer available to service machinery overseas.
3 . One year warranty is provided.
4 . Long life technical guidance for free.
5 . We always offer technical support, quick response, all your inquire will be replied in 24 hours.
