8 - 12m/min Industrial Warehouse Cable Tray Roll Forming Machine Steel Tile Type
8-12m/min Industrial Warehouse Storage Rack Roll Forming Machine PLC Control
Product Description

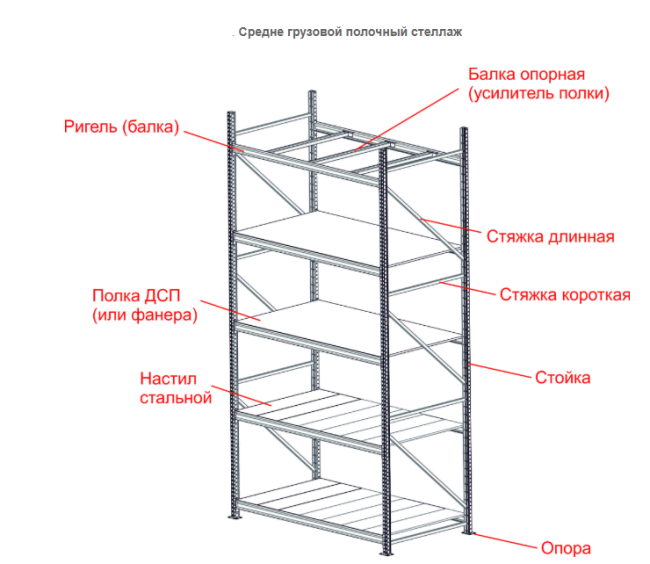

The Storage Rack Roll Forming Machine adopt cast iron structure. The driving way is chain driving. The size will be adjusted by the spacers between the rollers. The cutting is after forming, so the cutting position will be very smooth. There are two punching holes at the two sides of the cutting position. The products are widely used in super market shelf.
Features: punching is added to the flying saw cutting part, by the hydraulic control, mainly in the red c-shaped steel in the hole based, can be set up according to their needs, can be washed from time to punch, simple to use.
Working flow
Un-Coiler —- leveling —- Servo Feeding —- Punching —- Feeding —- Roll Forming —- Straightening —- Hydraulic Cutting —- Run-Out
Main parameters
1. Thickness of raw material:1.5mm, G300-345Mpa HR/CR/GI
2. Profile drawing of products (as per your requirement)
3. Forming Machine Structure: machine body formed by welding with high quality box iron
4. Shaft material:S45C quenched and tempered after finishing treatment
5. Main Shaft diameter:80mm
6. Rollers: GCr15 with heat treatment and hard chrome-plated HRC58-62
7. Number of forming stations: 12stations
8. Main motor power: 15kw
9. Cutting: hydraulic shearing after forming
10. Electronic controlling system: full-frequency PLC controlling system
11. Different production requirement will be operated from touch screen
Components
| No. | Part name | Unit | Qty |
| 1 | Manual decoiler | Set | 1 |
| 2 | Entry Beach | Set | 1 |
| 3 | Main machine for Roll Forming | Set | 1 |
| 4 | Cutting system | Set | 1 |
| 5 | Punching | Set | 1 |
| 6 | Output table | Set | 1 |
| 7 | Control System(PLC) | Set | 1 |
| 8 | Hydraulic station | Set | 1 |
Extra service if you place orders from us
1. Guarantee : 12 months guarantee for the machine. If some parts broken naturally, we will supply them for free.
2. Engineers can offer overseas service if you arrange the round trip ticket and accommodation.
3. The spare parts ,such as limit switch ,solenoid ,fuse ,,push button ,tube for free.
