Pallet Storage Rack Cable Tray Roll Forming Machine Max Feeding Width 200mm
Pallet Storage Rack Upright Shelf Profile Roll Forming Machine for Warehouse
Product Description
Galvanized steel shelving upright column making machine design for producing storage rack, warehouse shelves stud, upright post & Supermarket storage rack upright shelf frame profile machinery.

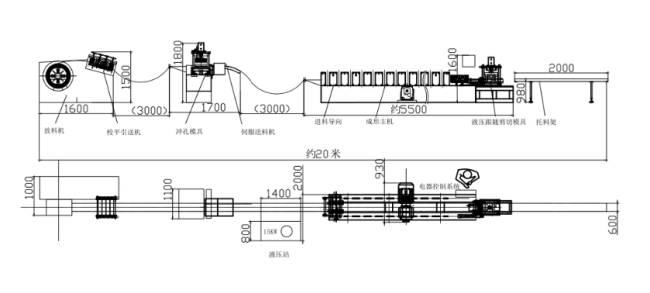

Working Flow
Decoiling --- leveling --- Servo feeding --- Punching Holes ---- Rollforming ----Cuting--- Finished Racks on Tables
Machines List
2 in 1 Uncoiler straightener
Type:Manual Expansion
Parameter
1. Passive discharge
2. Coil weight: < 2T
3. Coil inner D: φ450mm-φ530mm
4. Max. Width: 200mm
5. Thickness: 0.4-1.6mm
6. Straightener roller : 7 pcs
7. Power: 1.5kw
Servo Feeder
1. Max. feeding width:200mm
2. Feeding thickess: 0.4-1.6mm
3. Motor : 0.85ＫＷ
Hydraulic hole punching system
1. Function:Hydraulic punch breach
2. Structure: set the length, automatic length measurement, automatic positioning reaches the set distance stop action , hydraulic cylinder driven punching die, stamping automatic shutdown.
3. Hydraulic system working pressure:16MPa
4. Hydraulic station:15KW( Hydraulic punch hole/shear use same station)
Guide device
1. Forming Roller:14 stations,and add Rub-roll, To make sure the surface profile no scratches.
2. Side Panel:T.18mm ,A3 steel Heavy duty .
3. Rolling speeding: 2-8 m/min.
4. Roller material:#45,overall quenching, hardness HRC56-62 ℃.
5. Motor power:4KW.
6. Main Roller :￠65mm,45 #.
7. Equipment base: 45 # H type using welded steel plate.
8. Transmission: chain drive.
9. Security: across the board with emergency stop buttons, easy to handle emergencies, to ensure that equipment and operator safety. And other gear in the chain and the staff could easily lead to injury transmission section covered with protective cover, to ensure the safety of workers.
Devices steel rack beam production line
| No. | Machine name | QTY |
| 1 | Uncoiler straightener | 1 |
| 2 | Servo Feeder | 1 |
| 3 | Hydraulic machine | 1 |
| 4 | Guide device | 1 |
| 5 | Forming machine | 1 |
| 6 | Hydraulic machine | 1 |
| 7 | Follow Shear | 1 |
| 8 | Collect rack | 1 |
| 9 | Control system | 1 |
After-sale service
1. 12 Months guarantee. if some part of the machine is broken. we will supply the best part,but if the damaged parts due to operate error,buyer will pay for the shipping fee.
2. We sent technician to your country to fix the machine.the buyer shoule bear all the cost includng:visa,roundtrip ticket and suitable accommodation,also buyer should pay the salary 100USD/DAY.
