High Efficiency C Z Purlin Roll Forming Machine 40mm Diameter Of Shaft
Interchange CZ Steel Purline Profile Roll Forming Machinee PLC control
Product description

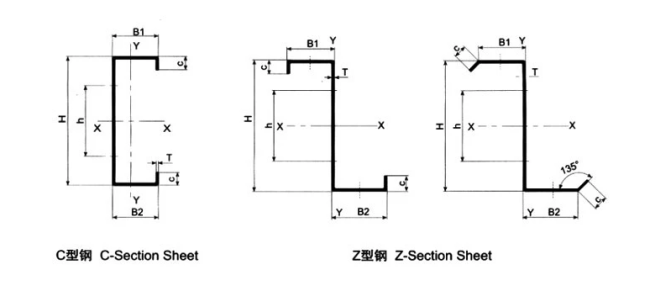

As a professional manufacturer,we can make C Section Purlin Cold Roll Forming Machine for steel frame by customer`s demand, with a profile drawing and thickness, we can design the machine quickly.Until now,we can do many kinds of roof panel machine,such as trapezoidal sheet making machine, corrugated sheet mnaking machine, glazed tile making machine, Double Layer Roll Forming Machine and so on.

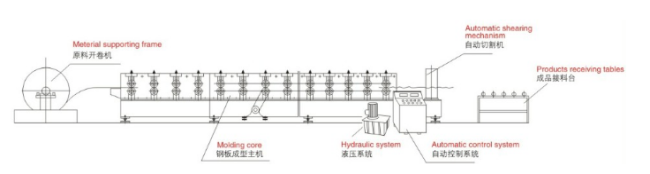

Working Process :
Decoiler—Roll Forming Machine——Hydraulic Press——Hydraulic cutter——Control System——Receiving table
Technical Parameters:
| No. | Item | Specification |
| 1 | Can Formed Material | GI,AI |
| 2 | Equipment operation | Automatic |
| 3 | Voltage | 380V 60Hz 3Phase or as your requirement |
| 4 | Thickness of sheet (mm) | 0.3-0.7mm |
| 5 | Material width(mm) | As your requirement |
| 6 | Cover Width of the sheet after formed | as your drawing |
| 7 | The size of the roll forming machine | 5500mmx1200mmx1400mm |
| 8 | Speed | 12-15m/min |
| 9 | Diameter of shaft | 40mm |
| 10 | Weight of the Machine | 2200-2500KGS |
| 11 | Material of rollers | Cr12 steel quenched and chromed |
| 12 | Motor brand | Siemens or Guomao |
| 13 | PLC | Siemens or Delta or Mitsubushi |
| 14 | Total power (kw) | 8kw |
| 15 | Power of hydraulic system | 4kw |
| 16 | Power of main molding core | 4kw |
| 17 | Transmission | Chain with gears |
|
COMPONENT FOR CZ purline making machine
|
|||
|
Name
|
Quantity
|
Units
|
|
|
Decoiler
|
1
|
Set
|
|
|
Main Machine
|
Feeding device
|
1
|
Set
|
|
Roll forming system
|
1
|
Set
|
|
|
Cut Equipment
|
1
|
Set
|
|
|
Hydraulic system
|
1
|
Set
|
|
|
Electric control system
|
1
|
Set
|
|
|
Supporter/Automatic Stacker
|
1
|
Set
|
|
FAQ
Package and Warranty:
1. Nude,with waterproof cloth and stow-wood.Imported computer control system packed with waterproof cloth and card board.
2. This producing line is maintained free of charge for 12 months.When the machine is used in China,we will install and debug the machine for free;if it is used at abroad,we will send the professional technician to debug.Buyers should take all the fees for technicians travelling abroad.
3. All the parts in the roll forming machine is free to maintain all the life,if in 12 months our company bear the cost for exchanged the broken part like the new parts cost and express cost,if more than 12 month,we also free to maintain the broken parts but for send the new parts,the buyer need bear the express cost.
4. When ship the roll forming machine,We will also send one set CD and specification( English) to you with the machine,they can teach you how to operater the machines.
