YT376509 Automatic Roll Forming Machine 250 - 350Mpa Yield Strength Coil Material
Automatic Roll Forming Machine C Z Quick Change Purlin With PLC control
Product description

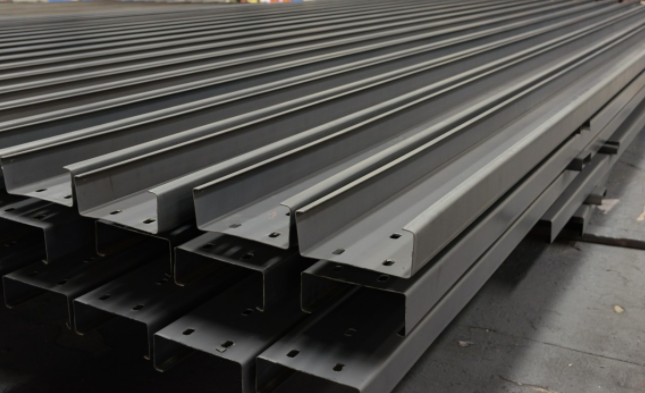

Our high efficiency purlin roll forming machine produces C, U, and Z purlins. Equipped with fast and easy automatic changing system and this system eliminates the need for multiple lines or manual adjustments.
We have the Purlin Roll Forming Machine experts in all aspects including fields like tooling design, hydraulic & electrical design, software programming since years. Being one of the leading pioneers of roll forming industry, we specify all designing and manufacturing process to our clients. Our manufacturing process is held in-house to keep up with the efficient technical forces.
Working Flow
Decoiler ----> feeding guide & leveling and straighten ----> punching ----> hydraulic pre-cutting---> roll forming ---- ----> run out tables
Specifications
| Coil Material | Thickness | 1.5-3.5mm |
| Coil width | Depend on customer’s requires | |
| Yield Strength | 250-350Mpa | |
| Material | GI. Carbon Steel | |
| Purlin Sizes | Web width | 80-350mm |
| Height | 40-80mm | |
| Lip | 12-25mm | |
| Conversion process | C-C different sizes | Approx. 2-3 minutes |
| Z-Z different sizes | Approx. 2-3 minutes | |
| C-Z or Z-C | Approx. 5-15 minutes | |
| Decoiler / Uncoiler | Coil Width | Max. 600mm |
| I.D | 510-610mm | |
| O.D | Max. 1300mm | |
| Capability | Max. 5 Tons | |
| Decoiler type | Manual / Hydraulic/Automatic | |
| Feeding & Leveling | Pinch feeding | 3 Units ( 6 Rollers ) |
| Leveling | 7 Rollers ( Upper 3 Rollers, Bottom 4 Rollers ) | |
| Punching device | Punching motion | Hydraulic Punching, Pre-punching |
| Punching dies | Cr12 Mov Steel, HRC58-62 | |
| Punching station | 1-6 Unites ( depend on hole patterns ) | |
| Punching in longitude controlled by PLC, punching at horizontal adjusted by manual hand wheel. | ||
| Cutting device | Cutting motion | Hydraulic Cutting, Pre-Cutting ( cutting sheet before forming ) |
| Cutting blades | Cr12Mov with heat treatment HRC58-62 | |
| Length Measuring | Automatic length measuring by encoder & PLC. | |
| Cutting Tolerance | +/-1.5mm(per 3m) | |
| Roll Forming Machine | Forming Stations | 17 Stations |
| Rectifying | 1 unit | |
| Roller material | GCr15 steel, heat treatment | |
| Diameter of shaft | 80mm | |
| Shaft material | High grade 45# steel | |
| Drive type | Gimbal gearbox drive | |
| Forming speed | 0-15m/min | |
| Main power | 18.5KW | |
| Servo motor | 1 Units | |
| Electrical control | PLC |
Touch Screen |
| Operation type | Touch screen & Button | |
| Hydraulic Station | Hydraulic station | Famous Chinese brand |
| Hydraulic power | 7.5KW | |
| Runout Table | Table type | Simple non-power type |
| Function | To support the finished panels | |
| Total W | APRRO 12.5 TONS | |
Machine Component
| De-coiler | 1 set |
| Leveling device | 1 set |
| Forming machine | 1 set |
| punching device | 1 set |
| Cutting device | 1 set |
| PLC control box | 1 set |
| Hydraulic pump station | 1 set |
| Production support table | 1 se |
We manufacture the machines as per clients’ specific needs and provide insights about the machine and its working process. We also apply hydraulic transmission system in order to achieve stable running or production state. We supply purlin roll forming machine at competitive prices comparing to our counterparts throughout the world. We are honored to receive such great feedbacks from our previous customer and we further want to retain the quality for years to come.
