40mm Octagonal Pipe Shutter Door Roll Forming Machine Max 350mm Coil Width
40mm Octagonal Pipe Roll Forming Machine, Rolling shutter tube Forming Machine
Description
Octagon steel tube is made of hot rolled steel, hot rolled galvanized steel, hot dip galvanized steel and high strength steel. Smooth surface, precise size, excellent rust-resistance property and long-term durability.
This whole line is consisted of decoiler (mainly consists of uncoiler and its base), gearbox transmission, roll stand and main machine, pressuring system, non stop cutting equipment, hydraulic system, control system, and product supporter, PLC control system, etc.

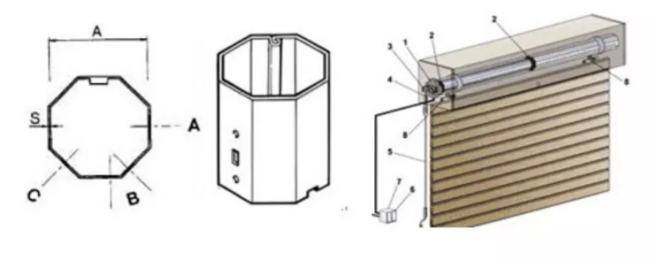

Rolling shutter door & windows Octagonal tube
A=40mm diameter tubes: 0.5-0.6mm thickness;
A=60mm diameter tubes: 0.6-0.8mm thickness;
A=70mm diameter tubes: 1.0-1.2mm thickness;
The up mentioned three tubes, 40mm, 60mm, 70mm are the typical style in the world market. Custom sizes are welcome!
The round shape tube or octagonal tubes can be selected by client.
Main Specifications
|
Coil Material |

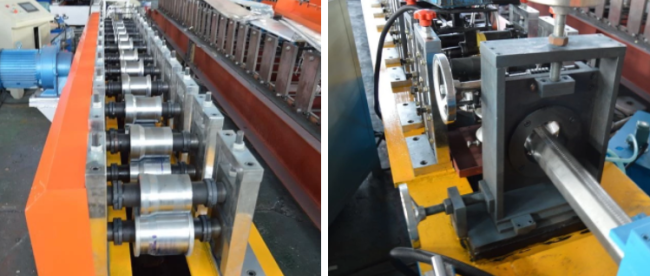

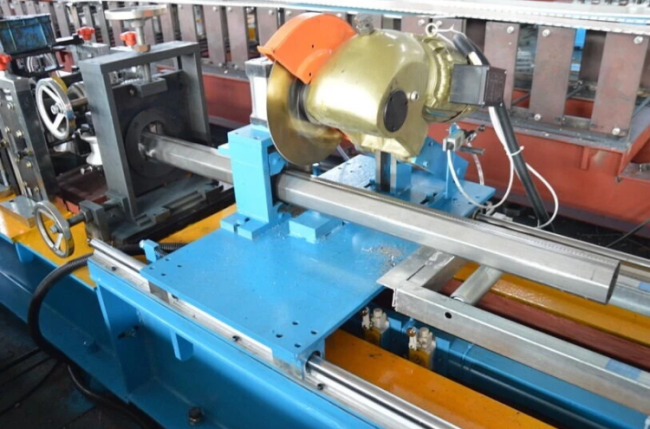

Thickness | 0.4-1.2mm |
| Coil width | Custom-made | |
| Yield Strength | 100-260Mpa | |
| Material | Aluminum | |
| Decoiler / Uncoiler | Coil Width | Max. 350mm |
| I.D | 300mm | |
| O.D | Max. 560mm | |
| Roll Forming Machine | Forming stations | 20 Stations ( Depend on Profiles ) |
| Roller material | 45# forge steel, polished and coated with chrome | |
| Diameter of shaft | 50mm | |
| Shaft material | quenched hardness 58-62 diameter roller: 60mm | |
| Transmission | chain | |
| Forming speed | 8-10m/min | |
| Main power | 7.5KW | |
| Cutting | Cutting type | Pneumatic flying saw cutting off |
| Cutting Tolerance | 10m+/-0.5mm | |
| Encoder | OMRON Brand | |
| Electrical control | PLC | Delta Brand or Custom-made |
| Inverter | Delta Brand or Custom-made | |
| Touch screen | Delta Brand or Custom-made | |
| Operation type | Touch screen & Button | |
| Runout Table | Table type | Simple nonpower type |
| Function | To support the finished panels |

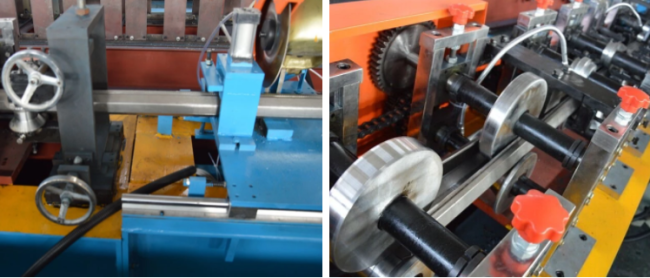

Main Components
| Main Roll Forming Machine | 1 Unit |
| PLC Computer Control Board | 1 Unit |
| Fast conveyor belt | 1 Unit |
| Decoiler / Uncoiler | 1 Unit |
| Cutting To Length | 1 Unit |
| Runout Table |
1 Unit |
