PLC Octagonal Pipe Rolling Shutter Profile Machine With Flying Saw Cutting

PLC Galvanized Steel Octagon Pipe Roll Forming Machine with Flying Saw Cutting

This kind of machine has the best quality and the best price. It has accurate measurement and easy operating. We can design and manufacture the special type machine according to the customers' requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.

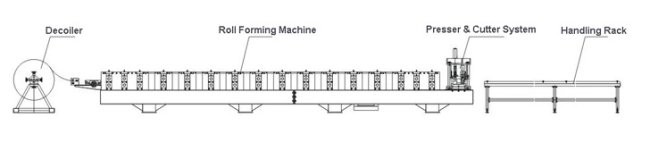

Working Flow

Uncoiling – feed Guiding–Roll forming ––fly saw cutting – Run-out table

Technical Parameter

1. Machine specification: forming thickness)0.4-0.5 stainless steel strength≤G250Mpa

2. Forming speed: 10-15M/min (EXCLUDING CUTTING STOP TIME)

3. Forming roller: about 22 stations

4. Main motor power: 7.5KW

5. Roller material: 45# forged steel, surface coated with chrome

6. Main shaft material: 45# steel

7. Main axis dia.: 70mm

8. Hydraulic cutting pressure: 10-12Mpa

9. Cutting method: hydraulic powered, cutting after roll forming.

10. Cutting blade material: Cr12 quenching treatment

11. Electrical controlling system: Whole line adopted PLC control, cut to length tolerance≤2mm

12. Wig welding device

13. water cooling system

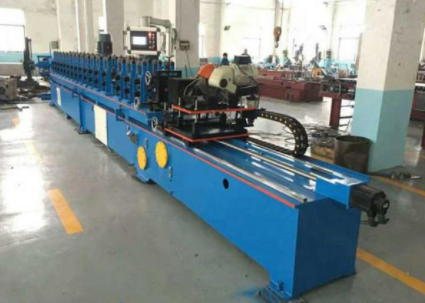

Machine Components

Packaging DetailsPackaging Details:

main machine is naked and the computer control box is packed by carton box


Delivery Detail:
1. We have professional technicians for loading
Guaranteed the goods load into container without any damage.
2. Transportation : Machines need one 40 feet container to hold
3. Please provide us the nearest port name, we will ask shipping cost and arrange shipping for you.

Our Service

1. Technology :We have technical centers and innovative designing teams for different kinds of production lines.

2. After Sale Service :Warranty period 1 year , after this period , we are willing to give help if customer needs accessory . The real cooperation will not end at the delivery . we believe that satisfied after sale service means a lot.

3. Inspected by the Sellers :After completing the manufacturing and assembling of the equipments, we will test the machines and commissioning in the workshop.

4. Inspected by the Buyers: After confirmation of a sound work of the line, we will invite our customer to send their representatives to inspect the production lines in our factories.
