GCr15 Roller Door Panel Roll Forming Machine , Shutter Door Making Machine YT233121
European designed Rolling shutter door roll forming machine with PLC control
Description
The shutter slat roll forming machine is fully automatic and it is easy to operate to form shutter slats. The shutter slat roll forming machine consists of one decoiler, sheet guiding equipment, roll forming section, cutter, supporter, hydraulic system and control system.

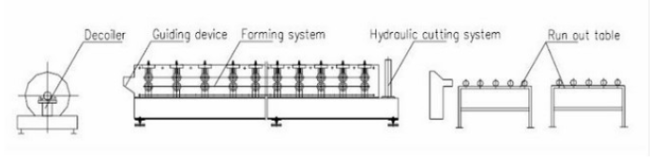

Working Flow:
Decoiler—Feeding Applicator—Roll Forming Unit—Computer Contol System—Hydraulic Cutting—Output Table
Main Machine Technical Specifications
| No. | Item | Specifications |
| 1. | Applicable Material | Aluminum coils; color steel coils |
| 2. | Material Thickness | 0.28-0.46mm |
| 3. | Coil Width | 200-400mm base on profiles |
| 4. | Roller Stations | 40-46 stations base on profiles |
| 5. | Forming Speed | 8-12m/min |
| 6. | Main Motor Power | 15kw |
| 7. | Roller Material | GCr15, with Chrome plated |
| 8. | Shaft Diameter | 50mm |
| 9. | Shaft Material | 40Cr with heat treatment and Chromed |
| 10. | Cutting Type | Saw cutting |
| 11. | Cutting Length Tolerance | ±2mm / 6m; ±3mm / 10m |
| No. | Main Components | Quantity |
| 1. | 2Ton Uncoiler / Decoiler | 1 set |
| 2. | Roller Shutter Slat Rollformer | 1 set |
| 3. | PU Foaming Machine | 1 set |
| 4. | Saw Cutting Device | 1 set |
| 5. | Run Out Support Frame | 1 set |
| 6. | Electrical Control System | 1 set |
| 7. | Gear Box With Universal Joint Drive System | 1 set |
| 8. | Heating System | 1 set |
Our service
1. Professional mechanical background sales for better undestanding customer's need
2. Experienced in China machine industry for supplying comprehensive machines and equipments
3. Strictly product manufacturing and quality controlling to ensure every machine we sold is satisfied with our customer
4. Engineers available to service machine overseas, for example installation, training, etc
5. Lifelong service for spares, ware parts, technical supporting, etc

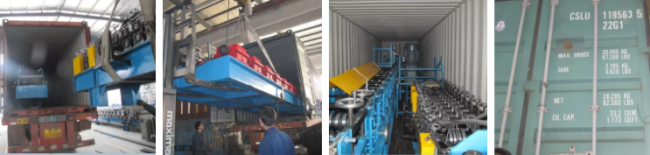

Packaging Details:
1. Tighten to container with steel wire rope and welded angel iron.
2. Main forming machine and uncoiler is naked (if you need we can also packed with water-proof plastic)
3. Roll forming machine PLC control system and moter pump are packed with water-proof plastic coverage.
