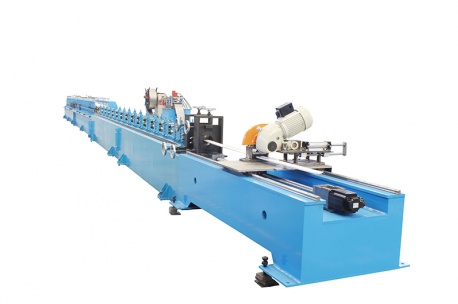

235Mpa Yield Strength Shutter Door Roll Forming Machine Galvanized Steel Coil Material
PLC control Shutter Door Roll Forming Machine, Door Frame Roll Forming Machine
Description
Our shutter door forming machine has many advantages of stablity, efficiency, material saving, low noise. And our machines work within high speed which improves its productivity greatly. Besides, Its products have high quality and fashionable styles. It is widely used in stores, warehouses, buildings, welcomed by customers throughout the world. The machines can be designed to produce different shapes and sizes according to customer's requirements..
Production process
Decolier----> Punching----> Feeding guide----> Roll forming machine----> hydraulic following cutting----> Finished products on run out worktable
| Machine Specifications | |
| Weight | About 3500kgs |
| Size | About 6m x 1.6m x 1.5m (length x width x height) |
| Color | Customer's Requirement |
| Suitable Raw Material | |
| Material | Galvanized Steel Coils |
| Thickness | 0.3-0.6mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | 12-14 |
| Diameter of forming rollers shafts | 60mm |
| Roll Forming Speed | 15-20m/min |
| Forming rollers material | No.45 steel, coated with chromed treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power: 3kw |
| Hydraulic unit motor power: 3kw | |
| Electric voltage | According to customer’s requirement |
Main components
| Decoiler | 1 Set |
| Guiding Equipment | 1 Set |
| Roll Forming Unit | 1 Set |
| Post Cutting Unit | 1 Set |
| Hydraulic Station | 1 Set |
| PLC Control System | 1 Set |
| Reveiving Table | 1 Set |
Applications:
1. Appearance and delicate: is made of high qualified steel plate (aluminum) rolling forming, not filled with middle
carbon fluorinated compounds of polyurethane foaming materials, heat insulation, sound insulation, heat
preservation.
2. Use fast: in the process of start, very swift and no noise, if use motor drive, power changed hands move way
can be met.
3. Durable: using high quality materials, sophisticated production technology and production technology, meet
slight collision after can sprung automatically deformation.
4. Save a space: the closed beta guide drive, promoting a door with other than to save the building, the internal
space, installation is more convenient.
