High Speed Steel Silo Corrugated Panel Roll Forming Machine With Thickness 2-4mm

High Speed Steel Silo Corrugated Panel Roll Forming Machine with thickness 2-4m

Product Description:

Max production speed: not less than 18m/min (for non-perforated profiles, excluding cutting);
Bending precision: the max profile deviations (dimensions and shape) shall not exceed the tolerances specified in EN 10162 (or equivalent tolerances);
Bending quality: ability to bend the profiles of the specified configuration at the specified max steel thickness; cracking of the steel or metal coating is not permitted for all required steel grades, when observing the products under magnification ten times.

Application

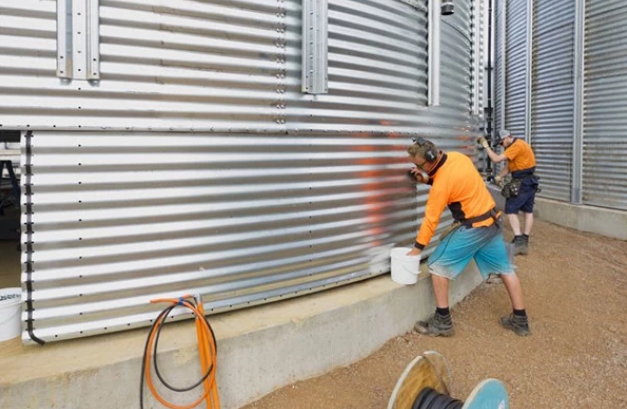

Steel silo corrugated sheet, steel silo corrugated panel, silo wall sheet, silo corrugated wall sheet, silo wall panel, silo corrugated wall panel, silo side panel, steel corrugated sheet, steel corrugated wall panel, steel corrugated panel

Working Flow

Loading coil car -> Un-coiler -> guiding device -> feeder -> leveller -> shear roll former -> hydraulic press -> curving -> hydraulic cutting -> stacker -> PLC control

Main Specifications of Steel Corrugated Panel Roll Forming Machine

• Suitable material: Galvanized sheet, Zinc Alumina sheet
• Material yield strength: 310Mpa
• Material thickness: 2.5-4.0mm
• Max. Feeding coil width: 1250mm
• Machine working speed: 4-8m//min
• Forming station: approx 18 stations
• Size of roll shaft: Ф120mm
• Roller material: GCr15, quenching HRC 58-62 °
• Total power: approx 180KW
• Power supply: AC440V+/-10%, 50Hz, 3 Phase
• Whole line dimention: about 35M X 4.5M ( L X W )
• Installation height: 4.5m
• Total weith of machine: approx 70 tons

Composition of machine

Steel Corrugated Panel Roll Forming Machine Features
1. The silo constructed with the steel silo making machine has optimal overall performance and long lifespan. The seaming thickness is 5 times the thickness of the base material. Apart from the strengthened load carrying capacity, the silo has the advantage of good stability and long lifespan over other product.

2. Optimal sealing performance and wide applications. Our cold roll forming line provides seaming with good airtightness. It helps prevent the granular and powdery grain stored being influenced by the humidity outside the silo. In addition, the silo constructed can satisfy the technological requirement for disinsection or fumigation. Application for storing liquid is also available.

3. Short construction period and low construction cost. It only takes about 5 days to construct the 1000 ton silo with our cold roll forming line. The silo weight is just one-sixth that of the cement silo. Therefore, the silo construction cost is reduced, accordingly.

4. Small land occupation, good adaptability and easy maintenance. The height and diameter of the spiral steel silo is selectable within a large range. The space between the silos can be less than 50m.
