Hydraulic Control System Steel Silo Roll Forming Machine For Storage 4-8m / Min
Hydraulic Control System Steel Silo Corrugated Roll Forming Machine for Storage
Product Application

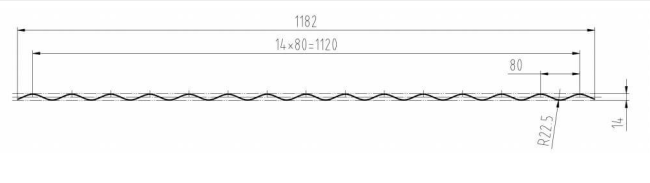

The steel silo corrugagted sheet roll forming machine is widely used to produce Steel silo corrugated sheet, steel silo corrugated panel, silo wall sheet, silo corrugated wall sheet, silo wall panel, silo corrugated wall panel, silo side panel, steel corrugated sheet, steel corrugated wall panel, steel corrugated panel, etc.
Technical process

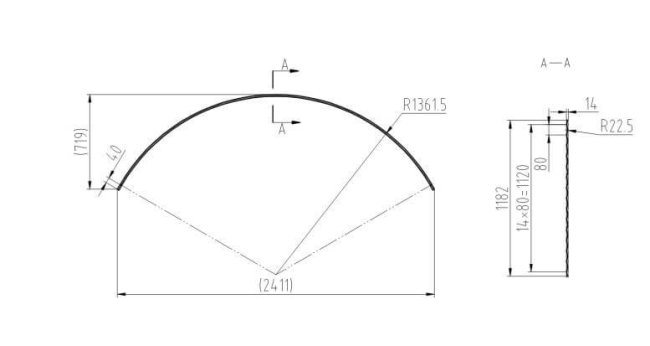

Decoiling----Guiding----Post cutting----Roll forming----Hydraulic cutting----Hydraulic curving----Run out table
Technical parameter
| Suitable Raw Material | galvanized sheet, zinc aluminum sheet |
| Material’s Strength | 310MPa |
| Material’s Thickness | 1.2-4.5mm |
| Forming Stations | 18 |
| Max. Feeding Width | 1250mm |
| Diameter of Roller’s Shaft | 120mm |
| Producing Speed | 4-8m/min |
| Material of Roller | GCr15 quenching HRC 58-62° |
| Drive Mode | gearbox |
| Main Power | about 180KW |
| Electrical Control System | PLC frequency control |
| Power Supply | AC 440V & 50HZ & 3PH |
| Dimension(L*W*H) | 35m*4.5m*4.5m |
| Total Weight | approx 70T |
Applications:
- Square silo
- Grain steel silo
- Commercial grain bin
- Grain storage system
- Maize silo/corn silo /wheat silo/soybean silo/rice silo/animal feed silo/cement silo/paddy silo/
Features
1. Large capacity
One single-silo capacity is up to 17,000 tons with comprehensive configurations to meet customers’ different requirements.
2. High accuracy
Complete advanced processing equipment and technology are introduced from the USA to effectively ensure working accuracy and reduce damage to the galvanized layer.
3. Less residues
External installable stiffeners contribute to less grain residues on silo walls.
4. Detachable and movable
With standardized and modularized production, components and parts have a high standardization and good interchangeability thus can be partially replaced or completely transferred.
