0.3mm-0.8mm Sheet Metal Roll Forming Machine Color Steel Rolling Steel Cold Roof
0.3mm-0.8mm Color steel rolling steel cold roof sheet metal roll forming machine
Product description
Roof sheet Roll forming machine is made up of material, molding and post-cutting. The appearance of the color plate is beautiful and even, with high intensity and durable. It is widely used in industrial buildings, such as factory buildings, warehouses, gymnasiums, exhibition halls, theaters and so on. Room and wall. Roof sheet Roll forming machine is made up of material discharge, molding and post-forming cutting. The appearance of products is beautiful and even, with high intensity and durable. It is widely used in industrial buildings, such as factory buildings, warehouses, garages and hangars. , Stadiums, exhibition halls, theaters and other rooms and walls. Its components include: machine, PLC computer control system, hydraulic pump station system, automatic after cutting system equipment.

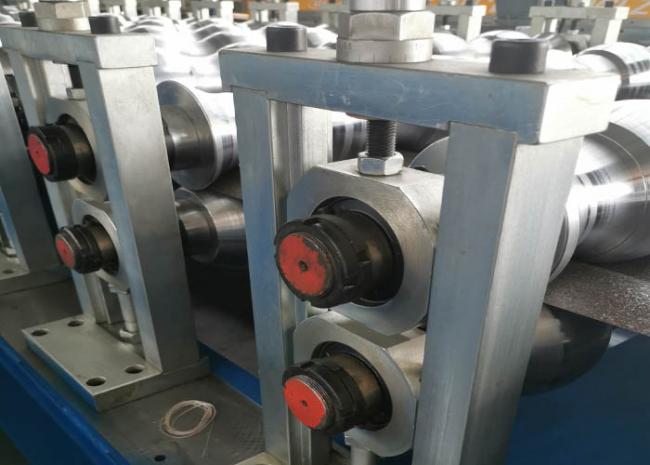

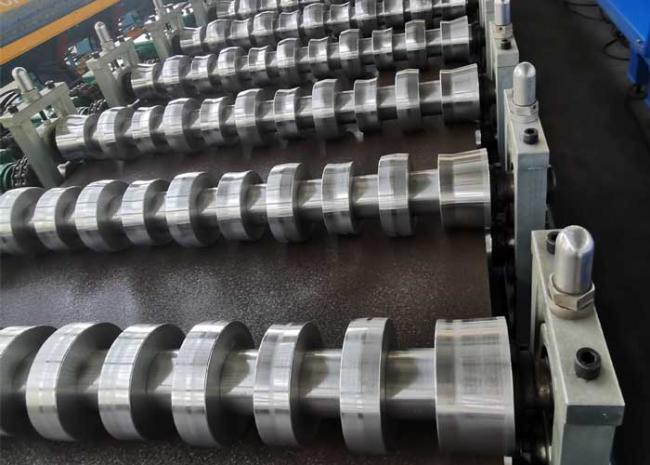

Machine picture
Technical parameters:
| configurations | manual decoiler, main machine of roll forming, cutting device, output table, electric motor, PLC control system | ||||
| Material | processing material | Colored Steel plate, Galvanized Board, Aluminum Plate | |||
| thickness | 0.3mm-0.8mm | ||||
| Efficiently width | 750mm | ||||
| Coil width | 1000mm | ||||
| Manual decoiler | The maximum load capacity:5 ton | Expand by band | |||
| The coil inside diameter:450-550mm | |||||
| Suitable Coil width:1250mm | |||||
| Main Forming machine | Forming steps | 13steps | |||
| Shaft diameter | 70 mm | ||||
| Thick of arch frame | 16mm | ||||
| Frame body | High strength steel pipe weld with color steel sheet cover | ||||
| roller material | 45# steel | ||||
| shaft material | 45# steel | ||||
| cutter material | Cr12 mold steel with quenched treatment | ||||
| Transmission | By 1” chain | ||||
| Work speed | 20-25m/min | ||||
| Hydraulic system | Automatic hydraulic cutting after forming, without wasting. | ||||
| Control Device |
PLC control touch screen Program language: English/Chinese(or as required) |
||||
| Operating mode | Button+touch screen | ||||
| Total power | 4 kW | ||||
| Main body-color | Blue and orange(or as required) | ||||
| Voltage | 380v/50hz/3ph(or as required) | ||||
Before ordering:
We can help to analyze the roof tile in your market. Which one is popular and which one will be popular.
Then your product is hot sale roof tile.
We can confirm all details of the roof tile roll forming machine together, including the drawing, thickness of
material, the hardness of the steel coil, the input width of the steel coil, capacity of the roll forming machine.
After-sale service:
We supply one year guarantee for the machine. The parts of the roll forming machine are free to send you and
you will pay the cost of freight. And you can also solve it if you ordered more parts for your roll forming machine
We supply all life tech support of our roll forming machines, Any questions, you can contact me by Whatsapp.
( I suggest that Whatsapp or wechat is good. Because i can get your words timely) Important thing, you can write mail to me.
