General Description
PU sandwich panel line integrate mechanism, chemical, electrical controlling, hydraulic controlling, pneumatic and temperature and the procedure of production includes uncoiling, film covering, cutting, roll forming, pre-heating, foaming, solidification, panel cutting, stacking and transferring, packing. The sandwich panel production line was produced and developed by our company and won a number of technology patents. Wuxi shenghong has successfully filled in the blank of the PU sandwich panel line in China and has awarded as a leading manufacturer in building machinery industry.
The PU sandwich panel made from the sandwich panel roll forming machine is produced with foaming at working site. There is a special device injecting the foaming material between the upper and lower metal sheet. And then the material will be sent to double crawler belt. The chemosynthesis and solidification are both finished inside the double crawler belt. Cutting is in accordance with the length set previously. The sandwich panel roll forming machine has non-stop cutting device and the cutter will be moved along with the panel. The working process of sandwich panel roll forming machine consists of uncoiling, film covering, cutting, roll forming, pre-heating, foaming, solidification, panel cutting, stacking, transferring and packing.
Working flow
Down side rigid board feed----Rolling rack----glue drop onto rigid board----glue sweep----EPS sheet load----- Rolling rack and lamination-----glue drop onto EPS Sheet----glue sweep----up rigid board feed ---Rolling lamination----finished product
Technical parameter
| Item | Parameter |
| Type of material | Colcor steel sheet;galvanized sheet,aluminum sheet |
| Thickness of material(mm) | 0.4-0.8 |
| Width of material(Mpa) | 1250(Max) |
| Length of panel(mm) | 2000-16000 |
| Width of panel(mm) | 600-1200 |
| Thickness of panel(mm) | 30-200(Not including height of corrugation) |
| Production speed(m/min) | 3-8(Adjustable) |
| Valid length of double belt conveyor(mm) | 16000-36000 |
| Work pressure on pouring foam(Bar) | 150-200 |
| Total power(KW) | about 300 |
| Total size(mm)(L*W*H) | 130000*15000*6000 |

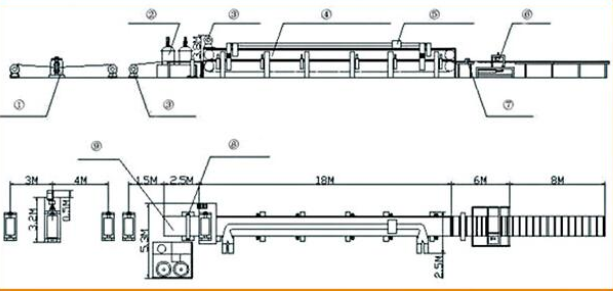

Machine components
| No. | Name | Qty |
| 1. | De-coiler | 1 Set |
| 2. | Roll Forming Machine | 1 Set |
| 3. | Laminating Machine | 1 Set |
| 4. | PLC Control Box | 1 Set |
| 5. | Hydraulic Pump | 1 Set |
| 6. | Output table | 1 Set |
| 7. | Saw cutting device | 1 Set |

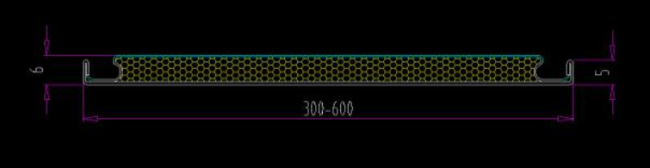

Sandwich Panel Profile Drawings For Reference
