Simple Type Color Steel PU Sandwich Panel Machine For Insulated Roof / Cold Room
Price:
Negotiation
MOQ:
1 Set
Delivery Time:
60-90 days
Brand:
YBT
Product Description
Simple Type Color Steel PU Sandwich Panel Machine For Insulated Roof / Cold Room
Product description
- This rubber blet pu sandwich panel line shown here is used for continuously making sandwich panels with the facing layer (s) of color steel or galvanized sheet and the core material of polyurethane. Whole equipment is divided into PU insulation part and Facing sheet profiling part.
- This line for roof and wall panel made of three kinds of material, in other words, sandwich panel including a Steel / Aluminium sheet + PU resin foam + Steel sheet, or Steel / Aluminium sheet + PU resin form + PVC Sheet
- This line is easy to operate, high productivity, and reasonable price. Suitable for making roof wall color coated pu insulated sandwich panels and cool room insulated panels.
- Whole line adopt PLC program control, with the communication module and inverter synchronization, highly automatically. Main machine adopt touch screen, simple operation. Productin line from uncoiler, roll forming, pu foaming, solidifying, automatically cutting, runout table ( opetional: auto stacker, auto packing ) to realize the auotmatically production process.

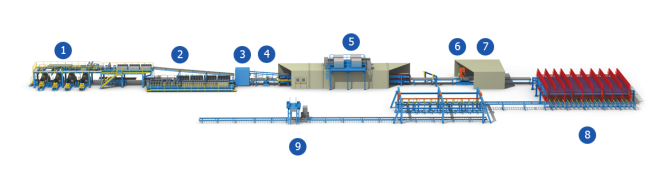

Working flow
Technical parameter
| Item | Parameter |
| Type of material | Colcor steel sheet;galvanized sheet,aluminum sheet |
| Thickness of material(mm) | 0.4-0.8 |
| Width of material(Mpa) | 1250(Max) |
| Length of panel(mm) | 2000-16000 |
| Width of panel(mm) | 600-1200 |
| Thickness of panel(mm) | 30-200(Not including height of corrugation) |
| Production speed(m/min) | 3-8(Adjustable) |
| Valid length of double belt conveyor(mm) | 16000-36000 |
| Work pressure on pouring foam(Bar) | 150-200 |
| Total power(KW) | about 300 |
| Total size(mm)(L*W*H) | 130000*15000*6000 |
Machine components
- Whole line make up of Auto decoilers, roll forming machines, Flat pre-cutting devices, Transporting Conveyors, Steel plate pre-heating, Pressing machine, Tracking cutting, PLC control system, PU foaming machine, Hydraulic system and Pneumatic system etc.

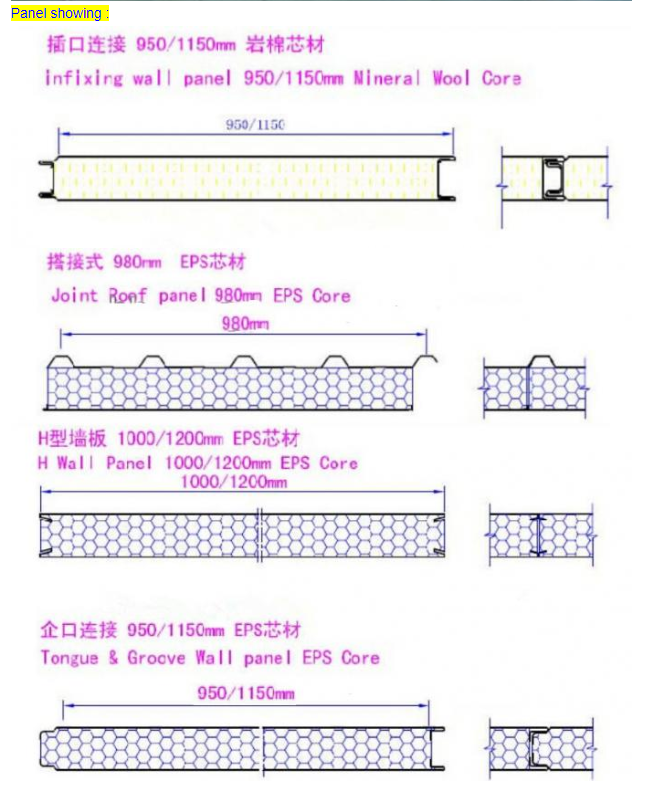

Sandwich Panel Profile Drawings For Reference

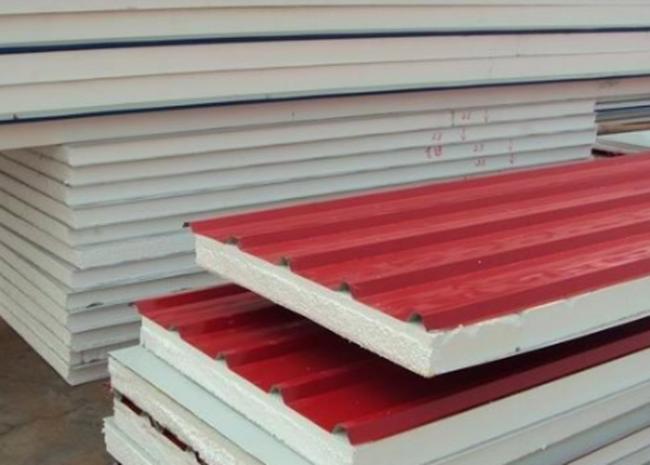

Applications
