Product Description
One-to-two flat mask equipment is a special equipment for the production of disposable
Flat masks.It consists of 1 body machine and 2 ear band welding machines.It can automatically complete the mask body molding,automatic nose bridge reinforcement, and automatic ear band welding.
It is the auto equipment which be used to the product of disposable face masks, be suitable for the material of non-woven fabric ,activated carbon and filter material from 1~5layers.The face mask machine will finish all the processing from the feeding to nose-clip fixing, edge sealing, cutting the finished products automatically.
Specification:
| Model | HG-YB 120 |
| Production speed | 90-120pcs /minute |
| Nonwoven Layers | 1-4 Layers |
| Nonwoven Material | 10-20 GSM |
| Production dimension | 17.5 *9.5 cm (can be customized) |
| Voltage | 220V/50Hz 1 phase or 380V/50HZ 3 phase choose one |
| Power | 9.5 kw |
| Weight | 5000kg |
| Machine size | 6150mm (L) × 3720mm (W) × 1950mm (H) |
Equipment Process and Flowchar:
1. The disposable face mask mainly consists of 2 layers of non-woven cloth, 1 layer of velvet spray cloth, 2 straps and 1 nose bridge component. 2. All raw materials are provided by coil feeding, and then automatic feeding and combination are realized through multiple automatic mechatronics units, and then ultrasonic welding technology is used to weld three layers of cloth and two straps together to form a complete product. 3. The material used for the mechanical device conforms to the production process requirements of the mask product, so that dust, oil and other pollution objects will not be produced in the production process, so as to ensure that the products produced meet the relevant hygiene requirements.
Features
1.Using the aluminum alloy structure, making machine lighter and more smooth
2.Adopting the advanced welding technical, making the product softer and comfortable
3. one output line , high capacity
4. Fully Automatically , make outside earloop welding togther with mask producing process which can save labor , once non woven raw material in unwinding part use up , the machine can automatically stop.

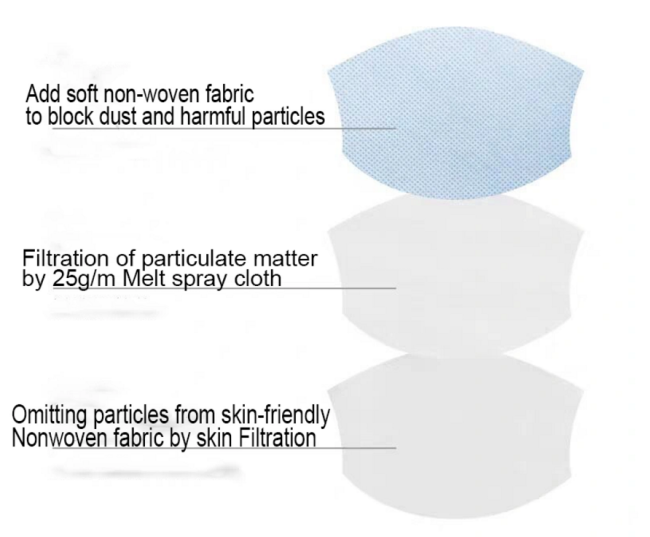

The use of high performance filter non - woven fabricthree - layer structure, maintain superior protection effect.
1. Outer fabric (polypropylene non-woven)
2. Filter layer (polypropylene melt- -spraying cloth)
3. Lining (polypropylene non-woven)
