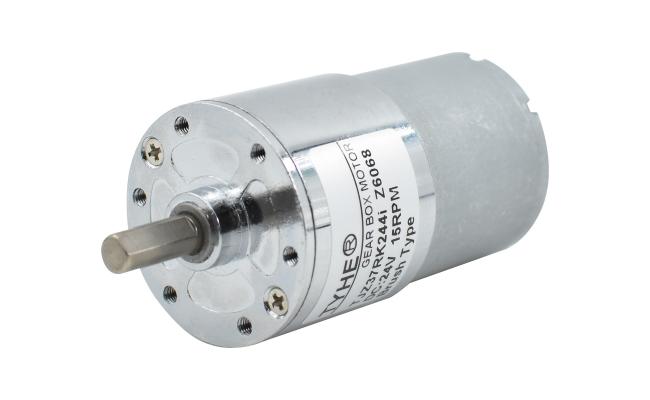

Anti-Interference Speed Adjustable 37mm 3530 60 Rpm 3v 12 Volt Micro Dc Gear Motor Round Cover
Price:
Negotiation
MOQ:
500pcs
Delivery Time:
15 working days after payment
Brand:
TYHE
Product Description
Products Description
Anti-Interference Speed Adjustable 37mm 3530 60 Rpm 3v 12 Volt Micro Dc Gear Motor Round Cover

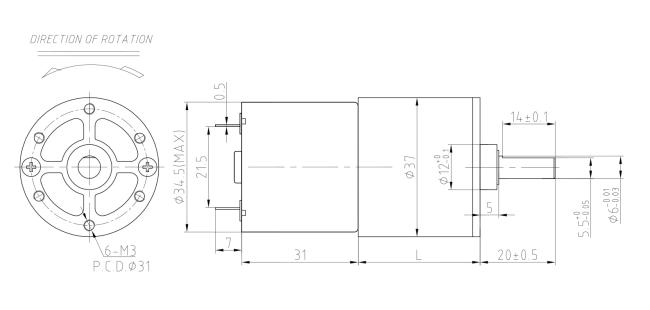

2D drawing
| Model | End cover dimensions | Motor type | Regular Shaft | Weight |
| TJZ37RK | φ37mm | ZY3530 | 6mm-D cut | 190g |
Specifications
| DC Motor Technical Data | ||||||||||
| Model | Rated Voltage(V) | No-Load Parameters | Rated Parameters | Stall Parameters | ||||||
| Speed | Current | Speed | Current | Torque | Output | eff | Torque | Current | ||
| rpm | mA | rpm | A | mN.m | W | % | mN.m | A | ||
| ZY3530 | 12 | 5500 | 60 | 4400 | 0.23 | 3.81 | 1.76 | 62.69 | 11.43 | 1.72 |
| ZY3530 | 12 | 6500 | 65 | 5200 | 0.31 | 4.18 | 2.28 | 61.18 | 12.54 | 2.00 |
| ZY3530 | 24 | 3500 | 14 | 2800 | 0.06 | 3.17 | 0.93 | 62.63 | 9.51 | 0.49 |
| ZY3530 | 24 | 5200 | 22 | 4160 | 0.11 | 4.01 | 1.75 | 63.47 | 12.03 | 0.98 |
| DC Motor With Gearbox Technical Data (0.5M) | ||||||||||
| Gearbox parameters | 12V-5500RPM Input | 12V-6500RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 22.5 | 81 | 4.6 | 956.5 | 1.42 | 14.20 | 42.59 | 1130.4 | 1.84 | 15.57 | 46.72 |
| 22.5 | 81 | 5.9 | 745.8 | 1.42 | 18.21 | 54.62 | 881.4 | 1.84 | 19.98 | 59.93 |
| 22.5 | 81 | 6.9 | 637.7 | 1.42 | 21.29 | 63.88 | 753.6 | 1.84 | 23.36 | 70.09 |
| 22.5 | 73 | 8.4 | 523.8 | 1.28 | 23.36 | 70.09 | 619.0 | 1.66 | 25.63 | 76.90 |
| 22.5 | 73 | 10.6 | 415.1 | 1.28 | 29.48 | 88.45 | 490.6 | 1.66 | 32.34 | 97.03 |
| 22.5 | 73 | 13.5 | 325.9 | 1.28 | 37.55 | 112.64 | 385.2 | 1.66 | 41.19 | 123.58 |
| 22.5 | 73 | 16.0 | 275.0 | 1.28 | 44.50 | 133.50 | 325.0 | 1.66 | 48.82 | 146.47 |
| 24.5 | 65.6 | 19.3 | 228.0 | 1.15 | 48.24 | 144.71 | 269.4 | 1.49 | 52.92 | 158.77 |
| 24.5 | 65.6 | 24.4 | 180.3 | 1.15 | 60.98 | 182.95 | 213.1 | 1.49 | 66.91 | 200.72 |
| 24.5 | 65.6 | 31.6 | 139.2 | 1.15 | 78.98 | 236.94 | 164.6 | 1.49 | 86.65 | 259.95 |
| 24.5 | 65.6 | 37.0 | 118.9 | 1.15 | 92.48 | 277.43 | 140.5 | 1.49 | 101.46 | 304.37 |
| 26.5 | 59 | 45.0 | 97.8 | 1.04 | 101.16 | 303.47 | 115.6 | 1.34 | 110.98 | 332.94 |
| 26.5 | 59 | 57.0 | 77.2 | 1.04 | 128.13 | 384.39 | 91.2 | 1.34 | 140.57 | 421.72 |
| 26.5 | 59 | 73.6 | 59.8 | 1.04 | 165.45 | 496.34 | 70.7 | 1.34 | 181.51 | 544.54 |
| 26.5 | 59 | 86.0 | 51.2 | 1.04 | 193.32 | 579.96 | 60.5 | 1.34 | 212.09 | 636.28 |
| 26.5 | 59 | 95.0 | 46.3 | 1.04 | 213.55 | 640.65 | 54.7 | 1.34 | 234.29 | 702.87 |
| 29.5 | 53 | 105.0 | 41.9 | 0.93 | 212.03 | 636.08 | 49.5 | 1.21 | 232.62 | 697.85 |
| 29.5 | 53 | 133.0 | 33.1 | 0.93 | 268.57 | 805.70 | 39.1 | 1.21 | 294.65 | 883.94 |
| 29.5 | 53 | 172.0 | 25.6 | 0.93 | 347.32 | 1041.96 | 30.2 | 1.21 | 381.05 | 1143.15 |
| 29.5 | 53 | 201.0 | 21.9 | 0.93 | 405.88 | 1217.64 | 25.9 | 1.21 | 445.30 | 1335.89 |
| 29.5 | 53 | 221.0 | 19.9 | 0.93 | 446.27 | 1338.80 | 23.5 | 1.21 | 489.60 | 1468.81 |
| 29.5 | 53 | 244.0 | 18.0 | 0.93 | 492.71 | 1478.13 | 21.3 | 1.21 | 540.56 | 1621.67 |
| 32.5 | 47.8 | 245.0 | 18.0 | 0.84 | 446.19 | 1338.57 | 21.2 | 1.09 | 489.52 | 1468.56 |
| 32.5 | 47.8 | 310.0 | 14.2 | 0.84 | 564.57 | 1693.70 | 16.8 | 1.09 | 619.39 | 1858.18 |
| 32.5 | 47.8 | 401.0 | 11.0 | 0.84 | 730.29 | 2190.88 | 13.0 | 1.09 | 801.21 | 2403.64 |
| 32.5 | 47.8 | 469.0 | 9.4 | 0.84 | 854.13 | 2500.00 | 11.1 | 1.09 | 937.08 | 2500.00 |
| 32.5 | 47.8 | 516.0 | 8.5 | 0.84 | 939.73 | 2500.00 | 10.1 | 1.09 | 1030.99 | 2500.00 |
| 32.5 | 47.8 | 569.0 | 7.7 | 0.84 | 1036.25 | 2500.00 | 9.1 | 1.09 | 1136.88 | 2500.00 |
| 32.5 | 47.8 | 627.0 | 7.0 | 0.84 | 1141.88 | 2500.00 | 8.3 | 1.09 | 1252.77 | 2500.00 |
| 32.5 | 43 | 1093.0 | 4.0 | 0.75 | 1790.66 | 2500.00 | 4.8 | 0.98 | 1964.56 | 2500.00 |
| 32.5 | 43 | 1205.0 | 3.7 | 0.75 | 1974.15 | 2500.00 | 4.3 | 0.98 | 2165.87 | 2500.00 |
| 32.5 | 43 | 1328.0 | 3.3 | 0.75 | 2175.66 | 2500.00 | 3.9 | 0.98 | 2386.95 | 2500.00 |
| 32.5 | 43 | 1463.0 | 3.0 | 0.75 | 2396.83 | 2500.00 | 3.6 | 0.98 | 2500.00 | 2500.00 |
| 32.5 | 43 | 1613.0 | 2.7 | 0.75 | 2500.00 | 2500.00 | 3.2 | 0.98 | 2500.00 | 2500.00 |
| DC Motor With Gearbox Technical Data (0.5M) | ||||||||||
| Gearbox parameters | 24V-3500RPM Input | 24V-5200RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 22.5 | 81 | 4.6 | 608.7 | 0.75 | 11.81 | 35.43 | 904.3 | 1.41 | 14.94 | 44.82 |
| 22.5 | 81 | 5.9 | 474.6 | 0.75 | 15.15 | 45.45 | 705.1 | 1.41 | 19.16 | 57.49 |
| 22.5 | 81 | 6.9 | 405.8 | 0.75 | 17.72 | 53.15 | 602.9 | 1.41 | 22.41 | 67.24 |
| 22.5 | 73 | 8.4 | 333.3 | 0.68 | 19.44 | 58.32 | 495.2 | 1.28 | 24.59 | 73.77 |
| 22.5 | 73 | 10.6 | 264.2 | 0.68 | 24.53 | 73.59 | 392.5 | 1.28 | 31.03 | 93.09 |
| 22.5 | 73 | 13.5 | 207.4 | 0.68 | 31.24 | 93.72 | 308.1 | 1.28 | 39.52 | 118.56 |
| 22.5 | 73 | 16.0 | 175.0 | 0.68 | 37.03 | 111.08 | 260.0 | 1.28 | 46.84 | 140.51 |
| 24.5 | 65.6 | 19.3 | 145.1 | 0.61 | 40.13 | 120.40 | 215.5 | 1.15 | 50.77 | 152.31 |
| 24.5 | 65.6 | 24.4 | 114.8 | 0.61 | 50.74 | 152.22 | 170.5 | 1.15 | 64.19 | 192.56 |
| 24.5 | 65.6 | 31.6 | 88.6 | 0.61 | 65.71 | 197.14 | 131.6 | 1.15 | 83.13 | 249.38 |
| 24.5 | 65.6 | 37.0 | 75.7 | 0.61 | 76.94 | 230.83 | 112.4 | 1.15 | 97.33 | 291.99 |
| 26.5 | 59 | 45.0 | 62.2 | 0.55 | 84.16 | 252.49 | 92.4 | 1.03 | 106.47 | 319.40 |
| 26.5 | 59 | 57.0 | 49.1 | 0.55 | 106.61 | 319.82 | 73.0 | 1.03 | 134.86 | 404.57 |
| 26.5 | 59 | 73.6 | 38.0 | 0.55 | 137.65 | 412.96 | 56.5 | 1.03 | 174.13 | 522.39 |
| 26.5 | 59 | 86.0 | 32.6 | 0.55 | 160.85 | 482.54 | 48.4 | 1.03 | 203.47 | 610.40 |
| 26.5 | 59 | 95.0 | 29.5 | 0.55 | 177.68 | 533.04 | 43.8 | 1.03 | 224.76 | 674.28 |
| 29.5 | 53 | 105.0 | 26.7 | 0.49 | 176.41 | 529.23 | 39.6 | 0.93 | 223.16 | 669.47 |
| 29.5 | 53 | 133.0 | 21.1 | 0.49 | 223.45 | 670.36 | 31.3 | 0.93 | 282.66 | 847.99 |
| 29.5 | 53 | 172.0 | 16.3 | 0.49 | 288.98 | 866.93 | 24.2 | 0.93 | 365.55 | 1096.65 |
| 29.5 | 53 | 201.0 | 13.9 | 0.49 | 337.70 | 1013.10 | 20.7 | 0.93 | 427.19 | 1281.56 |
| 29.5 | 53 | 221.0 | 12.7 | 0.49 | 371.30 | 1113.91 | 18.8 | 0.93 | 469.69 | 1409.07 |
| 29.5 | 53 | 244.0 | 11.5 | 0.49 | 409.94 | 1229.83 | 17.0 | 0.93 | 518.57 | 1555.72 |
| 32.5 | 47.8 | 245.0 | 11.4 | 0.44 | 371.24 | 1113.72 | 17.0 | 0.83 | 469.61 | 1408.83 |
| 32.5 | 47.8 | 310.0 | 9.0 | 0.44 | 469.73 | 1409.19 | 13.4 | 0.83 | 594.20 | 1782.61 |
| 32.5 | 47.8 | 401.0 | 7.0 | 0.44 | 607.62 | 1822.86 | 10.4 | 0.83 | 768.63 | 2305.89 |
| 32.5 | 47.8 | 469.0 | 6.0 | 0.44 | 710.66 | 2131.97 | 8.9 | 0.83 | 898.97 | 2500.00 |
| 32.5 | 47.8 | 516.0 | 5.4 | 0.44 | 781.87 | 2345.62 | 8.1 | 0.83 | 989.06 | 2500.00 |
| 32.5 | 47.8 | 569.0 | 4.9 | 0.44 | 862.18 | 2500.00 | 7.3 | 0.83 | 1090.65 | 2500.00 |
| 32.5 | 47.8 | 627.0 | 4.5 | 0.44 | 950.07 | 2500.00 | 6.6 | 0.83 | 1201.82 | 2500.00 |
| 32.5 | 43 | 1093.0 | 2.6 | 0.40 | 1489.87 | 2500.00 | 3.8 | 0.75 | 1884.66 | 2500.00 |
| 32.5 | 43 | 1205.0 | 2.3 | 0.40 | 1642.54 | 2500.00 | 3.5 | 0.75 | 2077.78 | 2500.00 |
| 32.5 | 43 | 1328.0 | 2.1 | 0.40 | 1810.20 | 2500.00 | 3.1 | 0.75 | 2289.87 | 2500.00 |
| 32.5 | 43 | 1463.0 | 1.9 | 0.40 | 1994.22 | 2500.00 | 2.8 | 0.75 | 2500.00 | 2500.00 |
| 32.5 | 43 | 1613.0 | 1.7 | 0.40 | 2198.68 | 2500.00 | 2.6 | 0.75 | 2500.00 | 2500.00 |
Please let us know your requirements and we will provide you with transmission solutions.
