Low price 37mm gearbox 12 volt 24 volt 5v 12v 24v high torque low rpm 3nm 1 watt 2w 3w 5kg 2nm dc gear motor
Price:
Negotiation
MOQ:
500pcs
Delivery Time:
15 working days after payment
Brand:
TYHE
Product Description
Products Description

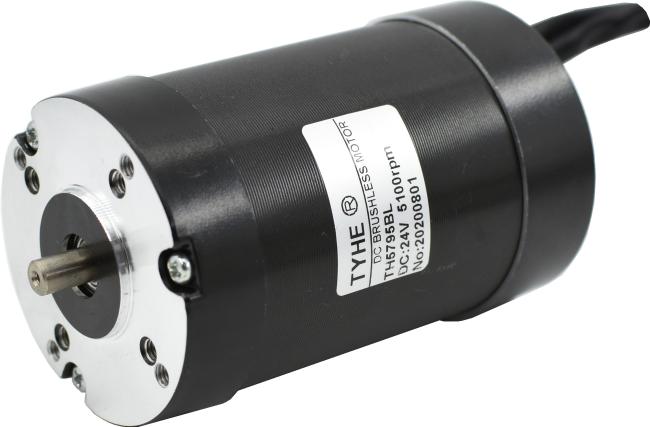

Manufacturer 12 Volt 8000rpm 57mm 24v Dc Brushless Motor For Automatic Door

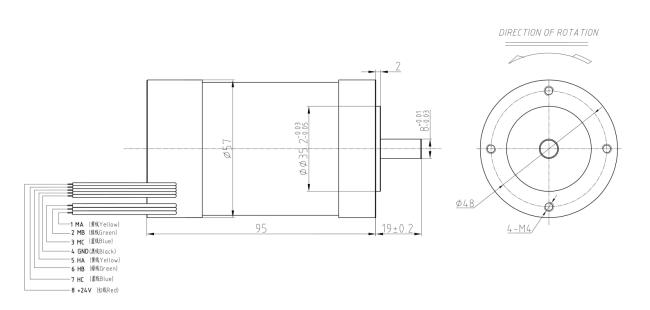

2D drawing

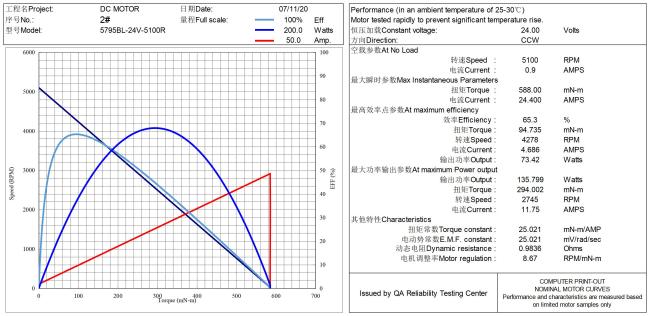

Specifications
| Model | Rated Voltage(V) | No-Load Parameters | Rated Parameters | Startup Parameters | |||||||||||||||
| Speed | Current | Speed | Current | Torque | Output | eff | Torque | Current | |||||||||||
| rpm | mA | rpm | A | mN.m | W | % | mN.m | A | |||||||||||
| 5795BL | 24 | 4000 | 800 | 3200 | 3.95 | 190.54 | 63.85 | 67.35 | 571.62 | 33.00 | |||||||||
| 5795BL | 24 | 4500 | 1000 | 3600 | 4.75 | 200.95 | 75.75 | 66.45 | 602.85 | 39.00 | |||||||||
| 5795BL | 24 | 5100 | 1200 | 4080 | 5.55 | 208.32 | 89.00 | 66.82 | 624.96 | 45.00 | |||||||||
| 5795BL | 24 | 6000 | 1500 | 4800 | 6.33 | 204.35 | 102.71 | 67.57 | 613.05 | 49.00 | |||||||||
Please let us know your requirements and we will provide you with transmission solutions.
