Custom Micro Dia 37mm 12v 24v High Torque 3nm 2nm 1nm Load Torque 5rpm 25 Rpm Small Power 5w Dc Gear Motor For Robotic
Price:
Negotiation
MOQ:
500pcs
Delivery Time:
15 working days after payment
Brand:
TYHE
Product Description
Products Description

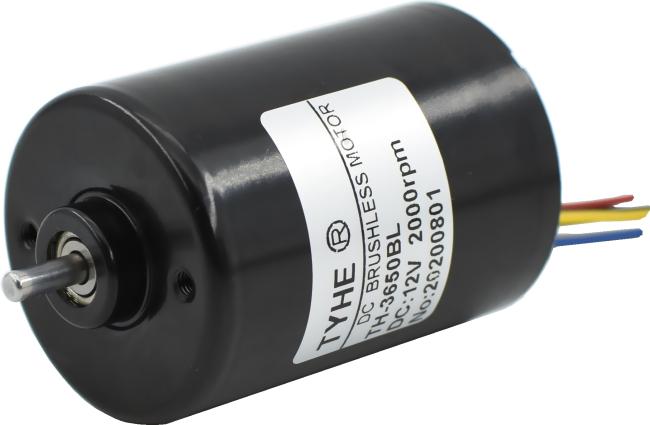

Longlife Time 3650BL 5000rpm High Speed 12v Dc Brushless Motors Ce Rohs

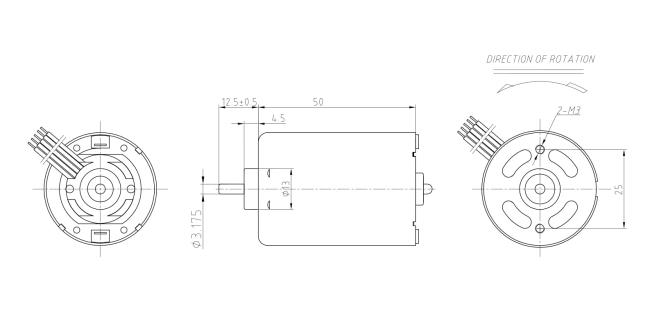

2D drawing
Specifications
| Model |
Rated Voltage |
No-Load Parameters | Rated Parameters | Stall Parameters | ||||||
| Speed | Current | Speed | Current | Torque | Output Power | eff | Torque | Current | ||
| rpm | mA | rpm | A | mN.m | W | % | mN.m | A | ||
| 3650BL | 12 | 5000 | 350 | 4000 | 1.07 | 20.90 | 8.75 | 68.39 | 62.70 | 6.50 |
| 3650BL | 24 | 5000 | 120 | 4000 | 0.47 | 18.30 | 7.66 | 67.71 | 54.90 | 3.50 |
Please let us know your requirements and we will provide you with transmission solutions.
