37mm Permanent Magnet Brushless DC Gear Motor 10rpm 12v 24v Low Speed
Price:
Negotiation
MOQ:
120pcs
Delivery Time:
15 working days after payment
Brand:
TYHE
Product Description
Products Description

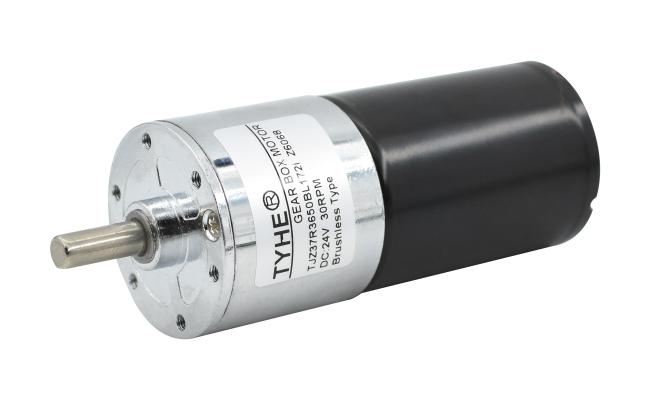

Permanent Magnet 37mm Diameter Low Speed 10rpm 12v 24v Dc Brushless Gear Motor

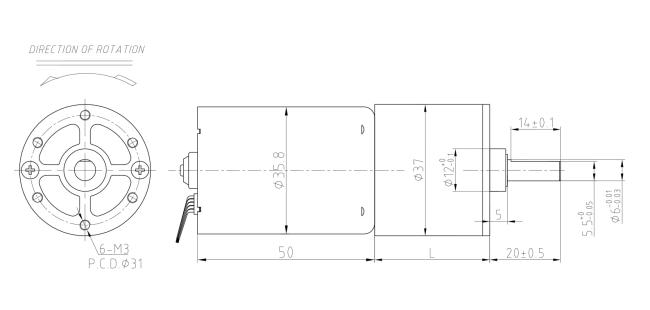

2D drawing
Specifications
| DC Motor Technical Data | ||||||||||
| Model | Rated Voltage(V) | No-Load Parameters | Rated Parameters | Stall Parameters | ||||||
| Speed | Current | Speed | Current | Torque | Output | eff | Torque | Current | ||
| rpm | mA | rpm | A | mN.m | W | % | mN.m | A | ||
| 3650BL | 12 | 5000 | 350 | 4000 | 1.07 | 19.20 | 8.04 | 62.83 | 57.60 | 6.50 |
| 3650BL | 24 | 5000 | 120 | 4000 | 0.47 | 17.80 | 7.46 | 65.86 | 53.40 | 3.50 |
| DC Motor With Gearbox Technical Data (0.5M) | ||||||||||
| Gearbox parameters | 12V-5000RPM Input | 24V-5000RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 22.5 | 81 | 4.6 | 869.6 | 6.51 | 71.54 | 214.62 | 869.6 | 6.04 | 66.32 | 198.97 |
| 22.5 | 81 | 5.9 | 678.0 | 6.51 | 91.76 | 275.27 | 678.0 | 6.04 | 85.07 | 255.20 |
| 22.5 | 73 | 8.4 | 476.2 | 5.9 | 117.73 | 353.20 | 476.19 | 5.44 | 109.15 | 327.45 |
| 22.5 | 73 | 10.6 | 377.4 | 5.9 | 148.57 | 445.71 | 377.36 | 5.44 | 137.74 | 413.21 |
| 22.5 | 73 | 13.5 | 296.3 | 5.9 | 189.22 | 567.65 | 296.30 | 5.44 | 175.42 | 526.26 |
| 24.5 | 65.6 | 19.3 | 207.3 | 5.28 | 243.09 | 729.26 | 207.3 | 4.89 | 225.36 | 676.09 |
| 24.5 | 65.6 | 24.4 | 163.9 | 5.28 | 307.32 | 921.97 | 163.9 | 4.89 | 284.91 | 854.74 |
| 24.5 | 65.6 | 31.6 | 126.6 | 5.28 | 398.01 | 1194.02 | 126.6 | 4.89 | 368.99 | 1106.96 |
| 26.5 | 59 | 45.0 | 88.9 | 4.7 | 509.76 | 1529.28 | 88.89 | 4.40 | 472.59 | 1417.77 |
| 26.5 | 59 | 57.0 | 70.2 | 4.7 | 645.70 | 1937.09 | 70.18 | 4.40 | 598.61 | 1795.84 |
| 26.5 | 59 | 73.6 | 54.3 | 4.7 | 833.74 | 2500.00 | 54.35 | 4.40 | 772.95 | 2318.84 |
| 29.5 | 53 | 105.0 | 38.1 | 4.26 | 1068.48 | 2500.00 | 38.1 | 3.95 | 990.57 | 2500.00 |
| 29.5 | 53 | 133.0 | 30.1 | 4.26 | 1353.41 | 2500.00 | 30.1 | 3.95 | 1254.72 | 2500.00 |
| 29.5 | 53 | 172.0 | 23.3 | 4.26 | 1750.27 | 2500.00 | 23.3 | 3.95 | 1622.65 | 2500.00 |
| 32.5 | 47.8 | 245.0 | 16.3 | 3.8 | 2248.51 | 2500.00 | 16.33 | 3.56 | 2084.56 | 2500.00 |
| 32.5 | 47.8 | 310.0 | 12.9 | 3.8 | 2500.00 | 2500.00 | 12.90 | 3.56 | 2500.00 | 2500.00 |
| 32.5 | 47.8 | 401.0 | 10.0 | 3.8 | 2500.00 | 2500.00 | 9.98 | 3.56 | 2500.00 | 2500.00 |
Please let us know your requirements and we will provide you with transmission solutions.
Typical Applications
- Household Appliances:Electric curtain, Intergrated cooker, Coffee maker, Intelligent closestool, Sweeping robot, Dish-washing Machine, Cooker hood, Electric lock.
- Hair Care: Hair Curler, Massager, Electric Hair Clipper.
- Office Equipment: Shredder, Printer, Projector, Counting Machine.
- Medical Equipment: Massager Chair, Electric trolley, Medical pump, Electric bed, Electric wheelchair.
- Industrial Equipment: Water valve, Electrical valve, Gas valve, Air switch, Automatic door, Automatic lubrication equipment.
- Business Equipment: Vending Machines, Parking locks, ATM machines, stage lights.
- Intelligent Robot: Machanical Arm, UAV(Unmanned Aerial Vehicle), Service Robot.
