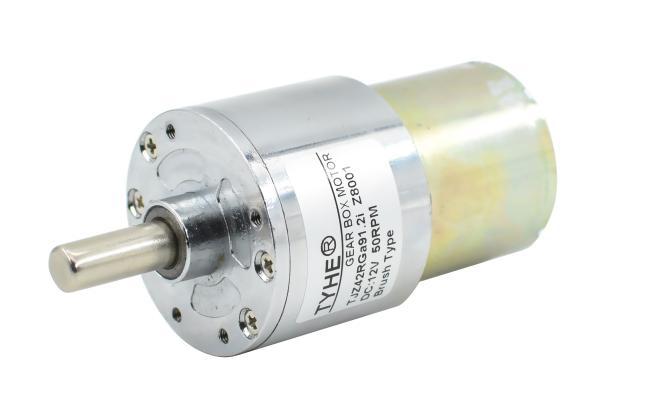

High Torque 3nm Micro Gear Motor 6-24V 42mm Gearbox 50kg Load 20rpm

Name: High Torque 3nm Micro Gear Motor 6-24V 42mm Gearbox 50kg Load 20rpm
Brand: Wenzhou Tyhe Motor Co., Ltd.

Price Negotiable

Price: Negotiation

MOQ: 500pcs

Delivery Time: 15 working days after payment

Brand: TYHE

Product Description

Manufacturer 42mm Gearbox 12v 14v 16v 24 Volt High Torque 3nm 40kg 50kg Load 20rpm 30 Rpm Brushed Micro 520 Gear Motor

Products Description

Manufacturer 42mm gearbox 12v 14v 16v 24 volt high torque 3nm 40kg 50kg load 20rpm 30 rpm brushed micro 520 dc gear motor

Specifications

DC Motor Technical Data
Model	Rated Voltage(V)	No-Load Parameters		Rated Parameters					Stall Parameters
		Speed	Current	Speed	Current	Torque	Output	eff	Torque	Current
		rpm	mA	rpm	A	mN.m	W	%	mN.m	A
RS530	12	3500	60	2800	0.21	5.30	1.55	61.91	15.90	1.43
RS530	12	5000	160	4000	0.49	8.90	3.73	62.86	26.70	3.05
RS530	24	5000	80	4000	0.25	9.12	3.82	62.83	27.36	1.60
RS530	24	7500	72	6000	0.37	9.25	5.81	64.63	27.75	3.20
DC Motor With Gearbox Technical Data (0.7M)
Gearbox parameters			12V-3500RPM Input				12V-5000RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
25.7	81	2.5	1120.0	1.26	10.73	32.20	1600.0	3.02	18.02	54.07
25.7	81	3.1	903.2	1.26	13.31	39.92	1290.3	3.02	22.35	67.04
25.7	81	3.8	736.8	1.26	16.31	48.94	1052.6	3.02	27.39	82.18
25.7	81	4.8	583.3	1.26	20.61	61.82	833.3	3.02	34.60	103.81
25.7	81	6.1	459.0	1.26	26.19	78.56	655.7	3.02	43.97	131.92
25.7	73	6.8	411.8	1.13	26.31	78.93	588.2	2.72	44.18	132.54
25.7	73	8.3	337.3	1.13	32.11	96.34	481.9	2.72	53.93	161.78
25.7	73	10.3	271.8	1.13	39.85	119.55	388.3	2.72	66.92	200.76
25.7	73	12.8	218.8	1.13	49.52	148.57	312.5	2.72	83.16	249.48
25.7	73	16.4	170.7	1.13	63.45	190.35	243.9	2.72	106.55	319.65
25.7	65.6	18.2	153.8	1.02	63.28	189.83	219.8	2.45	106.26	318.78
25.7	65.6	22.2	126.1	1.02	77.18	231.55	180.2	2.45	129.61	388.84
25.7	65.6	27.4	102.2	1.02	95.26	285.79	146.0	2.45	159.97	479.92
25.7	65.6	34.2	81.9	1.02	118.91	356.72	117.0	2.45	199.67	599.02
25.7	65.6	43.8	63.9	1.02	152.28	456.85	91.3	2.45	255.72	767.17
29.5	59	48.6	57.6	0.92	151.97	455.92	82.3	2.20	255.20	765.60
29.5	59	59.3	47.2	0.92	185.43	556.29	67.5	2.20	311.38	934.15
29.5	59	73.0	38.4	0.92	228.27	684.81	54.8	2.20	383.32	1149.97
29.5	59	91.2	30.7	0.92	285.18	855.55	43.9	2.20	478.89	1436.67
29.5	59	117.0	23.9	0.92	365.86	1097.58	34.2	2.20	614.37	1843.10
29.5	59	120.0	23.3	0.92	375.24	1125.72	33.3	2.20	630.12	1890.36
32.7	53	130.0	21.5	0.82	365.17	1095.51	30.8	1.98	613.21	1839.63
32.7	53	158.0	17.7	0.82	443.82	1331.47	25.3	1.98	745.29	2235.86
32.7	53	195.0	14.4	0.82	547.76	1643.27	20.5	1.98	919.82	2759.45
32.7	53	243.0	11.5	0.82	682.59	2047.76	16.5	1.98	1146.23	3438.69
32.7	53	311.0	9.0	0.82	873.60	2620.80	12.9	1.98	1466.99	4400.96
32.7	53	323.0	8.7	0.82	907.31	2721.92	12.4	1.98	1523.59	4570.77
DC Motor With Gearbox Technical Data (0.7M)
Gearbox parameters			24V-5000RPM Input				24V-7500RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
25.7	81	2.5	1600.0	3.09	18.47	55.40	2400.0	4.71	18.73	56.19
25.7	81	3.1	1290.3	3.09	22.90	68.70	1935.5	4.71	23.23	69.68
25.7	81	3.8	1052.6	3.09	28.07	84.21	1578.9	4.71	28.47	85.41
25.7	81	4.8	833.3	3.09	35.46	106.38	1250.0	4.71	35.96	107.89
25.7	81	6.1	655.7	3.09	45.06	135.19	983.6	4.71	45.70	137.11
25.7	73	6.8	588.2	2.79	45.27	135.82	882.4	4.24	45.92	137.75
25.7	73	8.3	481.9	2.79	55.26	165.77	722.9	4.24	56.05	168.14
25.7	73	10.3	388.3	2.79	68.57	205.72	582.5	4.24	69.55	208.65
25.7	73	12.8	312.5	2.79	85.22	255.65	468.8	4.24	86.43	259.30
25.7	73	16.4	243.9	2.79	109.18	327.55	365.9	4.24	110.74	332.22
25.7	65.6	18.2	219.8	2.51	108.89	326.66	329.7	3.81	110.44	331.31
25.7	65.6	22.2	180.2	2.51	132.82	398.45	270.3	3.81	134.71	404.13
25.7	65.6	27.4	146.0	2.51	163.93	491.78	219.0	3.81	166.26	498.79
25.7	65.6	34.2	117.0	2.51	204.61	613.83	175.4	3.81	207.53	622.58
25.7	65.6	43.8	91.3	2.51	262.04	786.13	137.0	3.81	265.78	797.34
29.5	59	48.6	82.3	2.25	261.51	784.52	123.5	3.43	265.23	795.70
29.5	59	59.3	67.5	2.25	319.08	957.24	101.2	3.43	323.63	970.89
29.5	59	73.0	54.8	2.25	392.80	1178.40	82.2	3.43	398.40	1195.19
29.5	59	91.2	43.9	2.25	490.73	1472.19	65.8	3.43	497.72	1493.17
29.5	59	117.0	34.2	2.25	629.55	1888.66	51.3	3.43	638.53	1915.58
29.5	59	120.0	33.3	2.25	645.70	1937.09	50.0	3.43	654.90	1964.70
32.7	53	130.0	30.8	2.02	628.37	1885.10	46.2	3.08	637.33	1911.98
32.7	53	158.0	25.3	2.02	763.71	2291.13	38.0	3.08	774.60	2323.79
32.7	53	195.0	20.5	2.02	942.55	2827.66	30.8	3.08	955.99	2867.96
32.7	53	243.0	16.5	2.02	1174.56	3523.69	24.7	3.08	1191.31	3573.92
32.7	53	311.0	12.9	2.02	1503.25	4509.75	19.3	3.08	1524.68	4574.03
32.7	53	323.0	12.4	2.02	1561.25	4683.76	18.6	3.08	1583.51	4750.52
