57mm BLDC Brushless DC Gear Motor 100 Kg Cm Torque Dc Motor 100W 200W
Price:
Negotiation
MOQ:
100pcs
Delivery Time:
15 working days after payment
Brand:
TYHE
Product Description
Products Description

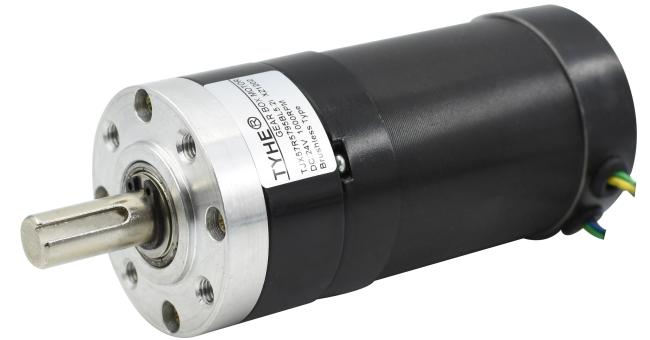

57mm 12v 24v High Torque Big Power 100w 120w 200w High Torque 100kg Brushless Dc BLDC Planetary Gear Motor

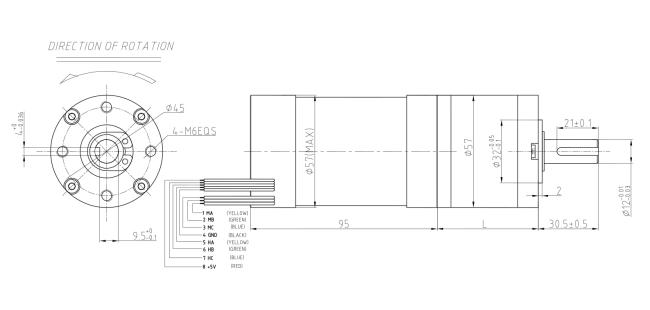

2D drawing
Specifications
| DC Motor Technical Data | ||||||||||
| Model | Rated Voltage(V) | No-Load Parameters | Rated Parameters | Stall Parameters | ||||||
| Speed | Current | Speed | Current | Torque | Output | eff | Torque | Current | ||
| rpm | mA | rpm | A | mN.m | W | % | mN.m | A | ||
| 5795BL | 24 | 4000 | 800 | 3200 | 3.95 | 190.54 | 63.85 | 67.35 | 571.62 | 33.00 |
| 5795BL | 24 | 4500 | 1000 | 3600 | 4.75 | 200.95 | 75.75 | 66.45 | 602.85 | 39.00 |
| 5795BL | 24 | 5100 | 1200 | 4080 | 5.55 | 208.32 | 89.00 | 66.82 | 624.96 | 45.00 |
| 5795BL | 24 | 6000 | 1500 | 4800 | 6.33 | 204.35 | 102.71 | 67.57 | 613.05 | 49.00 |
| DC Motor With Gearbox Technical Data (0.8M) | ||||||||||
| Gearbox parameters | 24V-4000RPM Input | 24V-4500RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 38.3 | 90 | 3.7 | 864.9 | 57.46 | 634.50 | 1903.49 | 973.0 | 68.18 | 669.16 | 2007.49 |
| 38.3 | 90 | 5.2 | 615.4 | 57.46 | 891.73 | 2675.18 | 692.3 | 68.18 | 940.45 | 2821.34 |
| 51.4 | 81 | 13.7 | 233.6 | 51.72 | 2114.42 | 6343.27 | 262.8 | 61.36 | 2229.94 | 6689.83 |
| 51.4 | 81 | 19.2 | 166.7 | 51.72 | 2963.28 | 8889.83 | 187.5 | 61.36 | 3125.17 | 9375.52 |
| 51.4 | 81 | 26.9 | 119.0 | 51.72 | 4151.68 | 12455.03 | 133.8 | 61.36 | 4378.50 | 13135.50 |
| 51.4 | 81 | 35.0 | 91.4 | 51.72 | 5401.81 | 16205.43 | 102.9 | 61.36 | 5696.93 | 17090.80 |
| 64.6 | 73 | 51.0 | 62.7 | 46.61 | 7093.80 | 21281.41 | 70.6 | 55.30 | 7481.37 | 22444.11 |
| 64.6 | 73 | 71.0 | 45.1 | 46.61 | 9875.69 | 29627.06 | 50.7 | 55.30 | 10415.24 | 31245.72 |
| 64.6 | 73 | 100.0 | 32.0 | 46.61 | 13909.42 | 41728.26 | 36.0 | 55.30 | 14669.35 | 44008.05 |
| 64.6 | 73 | 139.0 | 23.0 | 46.61 | 19334.09 | 48000.00 | 25.9 | 55.30 | 20390.40 | 48000.00 |
| 80 | 65.6 | 189.0 | 16.9 | 41.88 | 23623.91 | 48000.00 | 19.0 | 49.69 | 24914.58 | 48000.00 |
| 80 | 65.6 | 264.0 | 12.1 | 41.88 | 32998.48 | 48000.00 | 13.6 | 49.69 | 34801.32 | 48000.00 |
| 80 | 65.6 | 369.0 | 8.7 | 41.88 | 46122.87 | 48000.00 | 9.8 | 49.69 | 48000.00 | 48000.00 |
| 80 | 65.6 | 514.0 | 6.2 | 41.88 | 48000.00 | 48000.00 | 7.0 | 49.69 | 48000.00 | 48000.00 |
| 80 | 65.6 | 721.0 | 4.4 | 41.88 | 48000.00 | 48000.00 | 5.0 | 49.69 | 48000.00 | 48000.00 |
| 95 | 59 | 699.0 | 4.6 | 37.67 | 48000.00 | 48000.00 | 5.2 | 44.69 | 48000.00 | 48000.00 |
| 95 | 59 | 977.0 | 3.3 | 37.67 | 48000.00 | 48000.00 | 3.7 | 44.69 | 48000.00 | 48000.00 |
| 95 | 59 | 1367.0 | 2.3 | 37.67 | 48000.00 | 48000.00 | 2.6 | 44.69 | 48000.00 | 48000.00 |
| 95 | 59 | 1911.0 | 1.7 | 37.67 | 48000.00 | 48000.00 | 1.9 | 44.69 | 48000.00 | 48000.00 |
| 95 | 59 | 2672.0 | 1.2 | 37.67 | 48000.00 | 48000.00 | 1.3 | 44.69 | 48000.00 | 48000.00 |
| 95 | 59 | 3736.0 | 0.9 | 37.67 | 48000.00 | 48000.00 | 1.0 | 44.69 | 48000.00 | 48000.00 |
| DC Motor With Gearbox Technical Data (0.8M) | ||||||||||
| Gearbox parameters | 24V-5100RPM Input | 24V-6000RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 38.3 | 90 | 3.7 | 1102.7 | 80.10 | 693.71 | 2081.12 | 1297.3 | 92.44 | 680.49 | 2041.46 |
| 38.3 | 90 | 5.2 | 784.6 | 80.10 | 974.94 | 2924.81 | 923.1 | 92.44 | 956.36 | 2869.07 |
| 51.4 | 81 | 13.7 | 297.8 | 72.09 | 2311.73 | 6935.18 | 350.4 | 83.20 | 2267.67 | 6803.02 |
| 51.4 | 81 | 19.2 | 212.5 | 72.09 | 3239.79 | 9719.38 | 250.0 | 83.20 | 3178.05 | 9534.15 |
| 51.4 | 81 | 26.9 | 151.7 | 72.09 | 4539.08 | 13617.25 | 178.4 | 83.20 | 4452.58 | 13357.75 |
| 51.4 | 81 | 35.0 | 116.6 | 72.09 | 5905.87 | 17717.62 | 137.1 | 83.20 | 5793.32 | 17379.97 |
| 64.6 | 73 | 51.0 | 80.0 | 64.97 | 7755.75 | 23267.26 | 94.1 | 74.98 | 7607.95 | 22823.85 |
| 64.6 | 73 | 71.0 | 57.5 | 64.97 | 10797.23 | 32391.68 | 67.6 | 74.98 | 10591.46 | 31774.38 |
| 64.6 | 73 | 100.0 | 40.8 | 64.97 | 15207.36 | 45622.08 | 48.0 | 74.98 | 14917.55 | 44752.65 |
| 64.6 | 73 | 139.0 | 29.4 | 64.97 | 21138.23 | 48000.00 | 34.5 | 74.98 | 20735.39 | 48000.00 |
| 80 | 65.6 | 189.0 | 21.6 | 58.38 | 25828.35 | 48000.00 | 25.4 | 67.38 | 25336.13 | 48000.00 |
| 80 | 65.6 | 264.0 | 15.5 | 58.38 | 36077.69 | 48000.00 | 18.2 | 67.38 | 35390.15 | 48000.00 |
| 80 | 65.6 | 369.0 | 11.1 | 58.38 | 48000.00 | 48000.00 | 13.0 | 67.38 | 48000.00 | 48000.00 |
| 80 | 65.6 | 514.0 | 7.9 | 58.38 | 48000.00 | 48000.00 | 9.3 | 67.38 | 48000.00 | 48000.00 |
| 80 | 65.6 | 721.0 | 5.7 | 58.38 | 48000.00 | 48000.00 | 6.7 | 67.38 | 48000.00 | 48000.00 |
| 95 | 59 | 699.0 | 5.8 | 52.51 | 48000.00 | 48000.00 | 6.9 | 60.60 | 48000.00 | 48000.00 |
| 95 | 59 | 977.0 | 4.2 | 52.51 | 48000.00 | 48000.00 | 4.9 | 60.60 | 48000.00 | 48000.00 |
| 95 | 59 | 1367.0 | 3.0 | 52.51 | 48000.00 | 48000.00 | 3.5 | 60.60 | 48000.00 | 48000.00 |
| 95 | 59 | 1911.0 | 2.1 | 52.51 | 48000.00 | 48000.00 | 2.5 | 60.60 | 48000.00 | 48000.00 |
| 95 | 59 | 2672.0 | 1.5 | 52.51 | 48000.00 | 48000.00 | 1.8 | 60.60 | 48000.00 | 48000.00 |
| 95 | 59 | 3736.0 | 1.1 | 52.51 | 48000.00 | 48000.00 | 1.3 | 60.60 | 48000.00 | 48000.00 |
Please let us know your requirements and we will provide you with transmission solutions.
