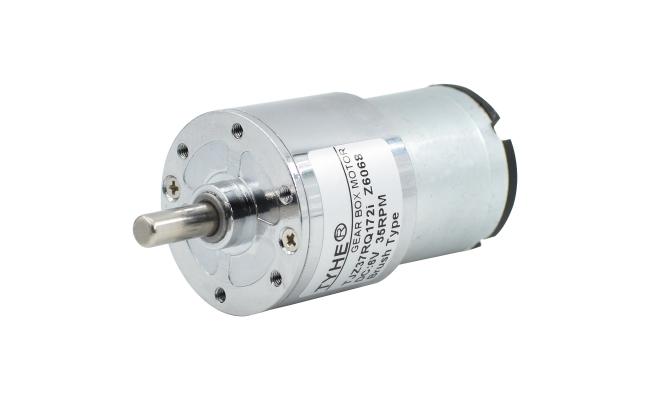

Customizable 37mm Diameter 6w 20rpm 24v 12v Dc Gear Motor High Torque
Price:
Negotiation
MOQ:
500pcs
Delivery Time:
15 working days after payment
Brand:
TYHE
Product Description
Products Description
Customizable 37mm Diameter 6w 20rpm 24v 12v Dc Gear Motor High Torque

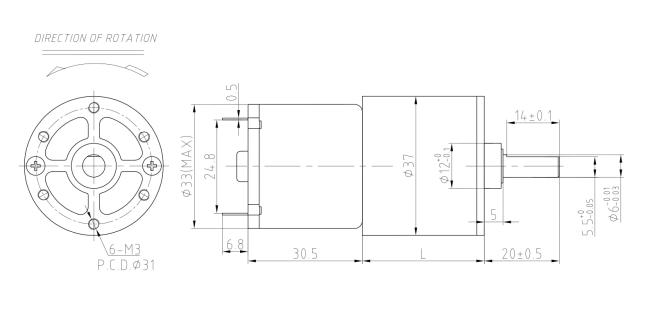

2D drawing
| Model | End cover dimensions | Motor type | Regular Shaft | Weight |
| TJZ37RQ | φ37mm | RS528 | 6mm-D cut | 180g |
Specifications
| DC Motor Technical Data | ||||||||||
| Model | Rated Voltage(V) | No-Load Parameters | Rated Parameters | Stall Parameters | ||||||
| Speed | Current | Speed | Current | Torque | Output | eff | Torque | Current | ||
| rpm | mA | rpm | A | mN.m | W | % | mN.m | A | ||
| ZY3330 | 6 | 6000 | 100 | 4800 | 0.30 | 2.23 | 1.12 | 62.27 | 6.69 | 1.70 |
| DC Motor With Gearbox Technical Data (0.5M) | ||||||||||
| Gearbox parameters | 6V-6000RPM Input | |||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | ||||
| 22.5 | 81 | 4.6 | 1043.5 | 0.91 | 8.31 | 24.93 | ||||
| 22.5 | 81 | 5.9 | 813.6 | 0.91 | 10.66 | 31.97 | ||||
| 22.5 | 81 | 6.9 | 695.7 | 0.91 | 12.46 | 37.39 | ||||
| 22.5 | 73 | 8.4 | 571.4 | 0.82 | 13.67 | 41.02 | ||||
| 22.5 | 73 | 10.6 | 452.8 | 0.82 | 17.26 | 51.77 | ||||
| 22.5 | 73 | 13.5 | 355.6 | 0.82 | 21.98 | 65.93 | ||||
| 22.5 | 73 | 16.0 | 300.0 | 0.82 | 26.05 | 78.14 | ||||
| 24.5 | 65.6 | 19.3 | 248.7 | 0.74 | 28.23 | 84.70 | ||||
| 24.5 | 65.6 | 24.4 | 196.7 | 0.74 | 35.69 | 107.08 | ||||
| 24.5 | 65.6 | 31.6 | 151.9 | 0.74 | 46.23 | 138.68 | ||||
| 24.5 | 65.6 | 37.0 | 129.7 | 0.74 | 54.13 | 162.38 | ||||
| 26.5 | 59 | 45.0 | 106.7 | 0.66 | 59.21 | 177.62 | ||||
| 26.5 | 59 | 57.0 | 84.2 | 0.66 | 74.99 | 224.98 | ||||
| 26.5 | 59 | 73.6 | 65.2 | 0.66 | 96.84 | 290.51 | ||||
| 26.5 | 59 | 86.0 | 55.8 | 0.66 | 113.15 | 339.45 | ||||
| 26.5 | 59 | 95.0 | 50.5 | 0.66 | 124.99 | 374.97 | ||||
| 29.5 | 53 | 105.0 | 45.7 | 0.59 | 124.10 | 372.30 | ||||
| 29.5 | 53 | 133.0 | 36.1 | 0.59 | 157.19 | 471.58 | ||||
| 29.5 | 53 | 172.0 | 27.9 | 0.59 | 203.29 | 609.86 | ||||
| 29.5 | 53 | 201.0 | 23.9 | 0.59 | 237.56 | 712.69 | ||||
| 29.5 | 53 | 221.0 | 21.7 | 0.59 | 261.20 | 783.60 | ||||
| 29.5 | 53 | 244.0 | 19.7 | 0.59 | 288.38 | 865.15 | ||||
| 32.5 | 47.8 | 245.0 | 19.6 | 0.54 | 261.16 | 783.47 | ||||
| 32.5 | 47.8 | 310.0 | 15.5 | 0.54 | 330.44 | 991.32 | ||||
| 32.5 | 47.8 | 401.0 | 12.0 | 0.54 | 427.44 | 1282.33 | ||||
| 32.5 | 47.8 | 469.0 | 10.2 | 0.54 | 499.93 | 1499.78 | ||||
| 32.5 | 47.8 | 516.0 | 9.3 | 0.54 | 550.03 | 1650.08 | ||||
| 32.5 | 47.8 | 569.0 | 8.4 | 0.54 | 606.52 | 1819.56 | ||||
| 32.5 | 47.8 | 627.0 | 7.7 | 0.54 | 668.34 | 2005.03 | ||||
| 32.5 | 43 | 1093.0 | 4.4 | 0.48 | 1048.08 | 2500.00 | ||||
| 32.5 | 43 | 1205.0 | 4.0 | 0.48 | 1155.47 | 2500.00 | ||||
| 32.5 | 43 | 1328.0 | 3.6 | 0.48 | 1273.42 | 2500.00 | ||||
| 32.5 | 43 | 1463.0 | 3.3 | 0.48 | 1402.87 | 2500.00 | ||||
| 32.5 | 43 | 1613.0 | 3.0 | 0.48 | 1546.71 | 2500.00 | ||||
Please let us know your requirements and we will provide you with transmission solutions.
