All steel gears Customizable 42mm Size 5N.m 24v 12v Dc Gear Motor Low Rpm
Price:
Negotiation
MOQ:
500pcs
Delivery Time:
15 working days after payment
Brand:
TYHE
Product Description
Products Description

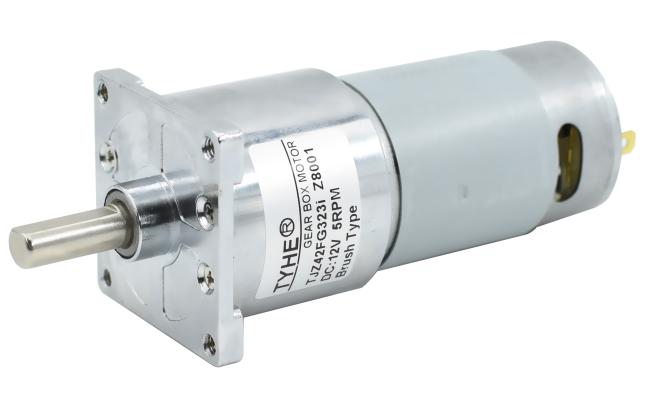

All Steel Gears Customizable 42mm Size 5N.M 24v 12v Dc Gear Motor Low Rpm
2D drawing
Specifications
| DC Motor Technical Data | ||||||||||
| Model | Rated Voltage(V) | No-Load Parameters | Rated Parameters | Stall Parameters | ||||||
| Speed | Current | Speed | Current | Torque | Output | eff | Torque | Current | ||
| rpm | mA | rpm | A | mN.m | W | % | mN.m | A | ||
| RS555 | 12 | 5700 | 290 | 4560 | 1.07 | 17.20 | 8.21 | 63.81 | 51.60 | 7.65 |
| RS555 | 12 | 6500 | 310 | 5200 | 1.42 | 19.50 | 10.62 | 62.24 | 58.50 | 11.48 |
| RS555 | 24 | 5000 | 150 | 4000 | 0.49 | 17.50 | 7.33 | 62.12 | 52.50 | 3.20 |
| RS555 | 24 | 6000 | 160 | 4800 | 0.53 | 16.80 | 8.44 | 66.18 | 50.40 | 3.50 |
| DC Motor With Gearbox Technical Data (0.7M) | ||||||||||
| Gearbox parameters | 12V-5700RPM Input | 12V-6500RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 25.7 | 81 | 2.5 | 1824.0 | 6.65 | 34.83 | 104.49 | 2080.0 | 8.60 | 39.49 | 118.46 |
| 25.7 | 81 | 3.1 | 1471.0 | 6.65 | 43.19 | 129.57 | 1677.4 | 8.60 | 48.96 | 146.89 |
| 25.7 | 81 | 3.8 | 1200.0 | 6.65 | 52.94 | 158.82 | 1368.4 | 8.60 | 60.02 | 180.06 |
| 25.7 | 81 | 4.8 | 950.0 | 6.65 | 66.87 | 200.62 | 1083.3 | 8.60 | 75.82 | 227.45 |
| 25.7 | 81 | 6.1 | 747.5 | 6.65 | 84.99 | 254.96 | 852.5 | 8.60 | 96.35 | 289.05 |
| 25.7 | 73 | 6.8 | 670.6 | 6.00 | 85.38 | 256.14 | 764.7 | 7.75 | 96.80 | 290.39 |
| 25.7 | 73 | 8.3 | 549.4 | 6.00 | 104.21 | 312.64 | 626.5 | 7.75 | 118.15 | 354.45 |
| 25.7 | 73 | 10.3 | 442.7 | 6.00 | 129.33 | 387.98 | 504.9 | 7.75 | 146.62 | 439.86 |
| 25.7 | 73 | 12.8 | 356.3 | 6.00 | 160.72 | 482.15 | 406.3 | 7.75 | 182.21 | 546.62 |
| 25.7 | 73 | 16.4 | 278.0 | 6.00 | 205.92 | 617.76 | 317.1 | 7.75 | 233.45 | 700.36 |
| 25.7 | 65.6 | 18.2 | 250.5 | 5.39 | 205.35 | 616.06 | 285.7 | 6.97 | 232.81 | 698.44 |
| 25.7 | 65.6 | 22.2 | 205.4 | 5.39 | 250.49 | 751.46 | 234.2 | 6.97 | 283.98 | 851.95 |
| 25.7 | 65.6 | 27.4 | 166.4 | 5.39 | 309.16 | 927.48 | 189.8 | 6.97 | 350.50 | 1051.50 |
| 25.7 | 65.6 | 34.2 | 133.3 | 5.39 | 385.89 | 1157.66 | 152.0 | 6.97 | 437.49 | 1312.46 |
| 25.7 | 65.6 | 43.8 | 104.1 | 5.39 | 494.20 | 1482.61 | 118.7 | 6.97 | 560.29 | 1680.87 |
| 29.5 | 59 | 48.6 | 93.8 | 4.85 | 493.19 | 1479.58 | 107.0 | 6.26 | 559.14 | 1677.43 |
| 29.5 | 59 | 59.3 | 76.9 | 4.85 | 601.78 | 1805.33 | 87.7 | 6.26 | 682.25 | 2046.74 |
| 29.5 | 59 | 73.0 | 62.5 | 4.85 | 740.80 | 2222.41 | 71.2 | 6.26 | 839.87 | 2519.60 |
| 29.5 | 59 | 91.2 | 50.0 | 4.85 | 925.50 | 2776.49 | 57.0 | 6.26 | 1049.26 | 3147.77 |
| 29.5 | 59 | 117.0 | 39.0 | 4.85 | 1187.32 | 3561.95 | 44.4 | 6.26 | 1346.09 | 4038.26 |
| 29.5 | 59 | 120.0 | 38.0 | 4.85 | 1217.76 | 3653.28 | 43.3 | 6.26 | 1380.60 | 4141.80 |
| 32.7 | 53 | 130.0 | 35.1 | 4.35 | 1185.08 | 3555.24 | 40.0 | 5.63 | 1343.55 | 4030.65 |
| 32.7 | 53 | 158.0 | 28.9 | 4.35 | 1440.33 | 4320.98 | 32.9 | 5.63 | 1632.93 | 4898.79 |
| 32.7 | 53 | 195.0 | 23.4 | 4.35 | 1777.62 | 5000.00 | 26.7 | 5.63 | 2015.33 | 5000.00 |
| 32.7 | 53 | 243.0 | 18.8 | 4.35 | 2215.19 | 5000.00 | 21.4 | 5.63 | 2511.41 | 5000.00 |
| 32.7 | 53 | 311.0 | 14.7 | 4.35 | 2835.08 | 5000.00 | 16.7 | 5.63 | 3214.19 | 5000.00 |
| 32.7 | 53 | 323.0 | 14.1 | 4.35 | 2944.47 | 5000.00 | 16.1 | 5.63 | 3338.21 | 5000.00 |
| DC Motor With Gearbox Technical Data (0.7M) | ||||||||||
| Gearbox parameters | 24V-5000RPM Input | 24V-6000RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 25.7 | 81 | 2.5 | 1600.0 | 5.94 | 35.44 | 106.31 | 1920.0 | 6.84 | 34.02 | 102.06 |
| 25.7 | 81 | 3.1 | 1290.3 | 5.94 | 43.94 | 131.83 | 1548.4 | 6.84 | 42.18 | 126.55 |
| 25.7 | 81 | 3.8 | 1052.6 | 5.94 | 53.87 | 161.60 | 1263.2 | 6.84 | 51.71 | 155.13 |
| 25.7 | 81 | 4.8 | 833.3 | 5.94 | 68.04 | 204.12 | 1000.0 | 6.84 | 65.32 | 195.96 |
| 25.7 | 81 | 6.1 | 655.7 | 5.94 | 86.47 | 259.40 | 786.9 | 6.84 | 83.01 | 249.03 |
| 25.7 | 73 | 6.8 | 588.2 | 5.35 | 86.87 | 260.61 | 705.9 | 6.16 | 83.40 | 250.19 |
| 25.7 | 73 | 8.3 | 481.9 | 5.35 | 106.03 | 318.10 | 578.3 | 6.16 | 101.79 | 305.37 |
| 25.7 | 73 | 10.3 | 388.3 | 5.35 | 131.58 | 394.75 | 466.0 | 6.16 | 126.32 | 378.96 |
| 25.7 | 73 | 12.8 | 312.5 | 5.35 | 163.52 | 490.56 | 375.0 | 6.16 | 156.98 | 470.94 |
| 25.7 | 73 | 16.4 | 243.9 | 5.35 | 209.51 | 628.53 | 292.7 | 6.16 | 201.13 | 603.39 |
| 25.7 | 65.6 | 18.2 | 219.8 | 4.81 | 208.94 | 626.81 | 263.7 | 5.54 | 200.58 | 601.74 |
| 25.7 | 65.6 | 22.2 | 180.2 | 4.81 | 254.86 | 764.57 | 216.2 | 5.54 | 244.66 | 733.99 |
| 25.7 | 65.6 | 27.4 | 146.0 | 4.81 | 314.55 | 943.66 | 175.2 | 5.54 | 301.97 | 905.91 |
| 25.7 | 65.6 | 34.2 | 117.0 | 4.81 | 392.62 | 1177.85 | 140.4 | 5.54 | 376.91 | 1130.73 |
| 25.7 | 65.6 | 43.8 | 91.3 | 4.81 | 502.82 | 1508.47 | 109.6 | 5.54 | 482.71 | 1448.13 |
| 29.5 | 59 | 48.6 | 82.3 | 4.32 | 501.80 | 1505.39 | 98.8 | 4.98 | 481.72 | 1445.17 |
| 29.5 | 59 | 59.3 | 67.5 | 4.32 | 612.27 | 1836.82 | 80.9 | 4.98 | 587.78 | 1763.34 |
| 29.5 | 59 | 73.0 | 54.8 | 4.32 | 753.73 | 2261.18 | 65.8 | 4.98 | 723.58 | 2170.73 |
| 29.5 | 59 | 91.2 | 43.9 | 4.32 | 941.64 | 2824.92 | 52.6 | 4.98 | 903.97 | 2711.92 |
| 29.5 | 59 | 117.0 | 34.2 | 4.32 | 1208.03 | 3624.08 | 41.0 | 4.98 | 1159.70 | 3479.11 |
| 29.5 | 59 | 120.0 | 33.3 | 4.32 | 1239.00 | 3717.00 | 40.0 | 4.98 | 1189.44 | 3568.32 |
| 32.7 | 53 | 130.0 | 30.8 | 3.88 | 1205.75 | 3617.25 | 36.9 | 4.48 | 1157.52 | 3472.56 |
| 32.7 | 53 | 158.0 | 25.3 | 3.88 | 1465.45 | 4396.35 | 30.4 | 4.48 | 1406.83 | 4220.50 |
| 32.7 | 53 | 195.0 | 20.5 | 3.88 | 1808.63 | 5000.00 | 24.6 | 4.48 | 1736.28 | 5000.00 |
| 32.7 | 53 | 243.0 | 16.5 | 3.88 | 2253.83 | 5000.00 | 19.8 | 4.48 | 2163.67 | 5000.00 |
| 32.7 | 53 | 311.0 | 12.9 | 3.88 | 2884.53 | 5000.00 | 15.4 | 4.48 | 2769.14 | 5000.00 |
| 32.7 | 53 | 323.0 | 12.4 | 3.88 | 2995.83 | 5000.00 | 14.9 | 4.48 | 2875.99 | 5000.00 |
Please let us know your requirements and we will provide you with transmission solutions.
