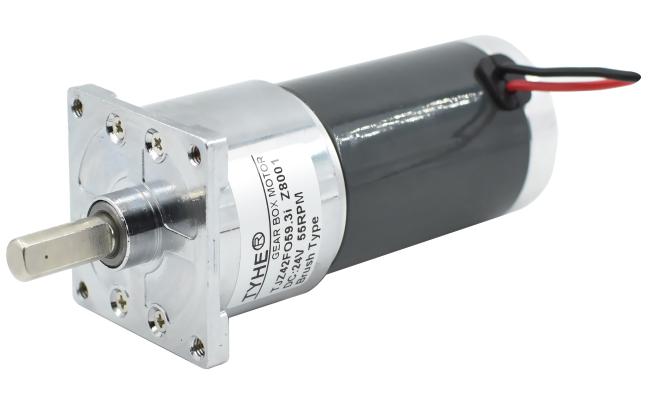

Automatic Vending Machine 42mm Size 12v 24v 5v Mini Dc Gear Motor 150rpm 3N.M Ce Rohs

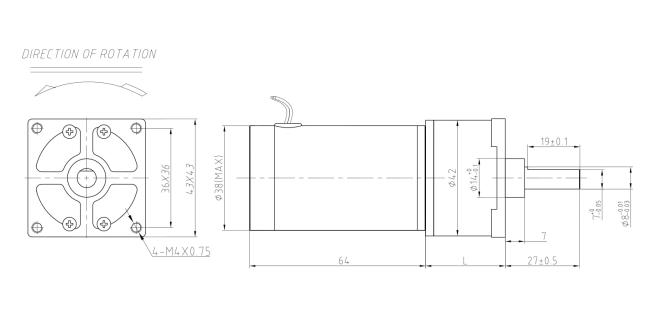

2D drawing
| Model | End cover dimensions | Motor type | Regular Shaft | Weight |
| TJZ42FO | φ42mm | TH38S | 8mm-D cut | 450g |
Specifications
| DC Motor Technical Data | ||||||||||
| Model | Rated Voltage(V) | No-Load Parameters | Rated Parameters | Stall Parameters | ||||||
| Speed | Current | Speed | Current | Torque | Output | eff | Torque | Current | ||
| rpm | mA | rpm | A | mN.m | W | % | mN.m | A | ||
| ZY3864 | 12 | 5700 | 340 | 4560 | 1.22 | 19.80 | 9.45 | 64.37 | 59.40 | 7.14 |
| ZY3864 | 12 | 6000 | 380 | 4800 | 1.37 | 20.30 | 10.20 | 62.15 | 60.90 | 7.98 |
| ZY3864 | 24 | 3200 | 80 | 2560 | 0.25 | 14.30 | 3.83 | 63.89 | 42.90 | 1.30 |
| ZY3864 | 24 | 4000 | 120 | 3200 | 0.40 | 17.90 | 6.00 | 62.48 | 53.70 | 2.20 |
| DC Motor With Gearbox Technical Data (0.7M) | ||||||||||
| Gearbox parameters | 12V-5700RPM Input | 12V-6000RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 25.7 | 81 | 2.5 | 1824.0 | 7.66 | 40.10 | 120.29 | 1920.0 | 8.26 | 41.11 | 123.32 |
| 25.7 | 81 | 3.1 | 1471.0 | 7.66 | 49.72 | 149.15 | 1548.4 | 8.26 | 50.97 | 152.92 |
| 25.7 | 81 | 3.8 | 1200.0 | 7.66 | 60.94 | 182.83 | 1263.2 | 8.26 | 62.48 | 187.45 |
| 25.7 | 81 | 4.8 | 950.0 | 7.66 | 76.98 | 230.95 | 1000.0 | 8.26 | 78.93 | 236.78 |
| 25.7 | 81 | 6.1 | 747.5 | 7.66 | 97.83 | 293.50 | 786.9 | 8.26 | 100.30 | 300.91 |
| 25.7 | 73 | 6.8 | 670.6 | 6.90 | 98.29 | 294.86 | 705.9 | 7.45 | 100.77 | 302.31 |
| 25.7 | 73 | 8.3 | 549.4 | 6.90 | 119.97 | 359.90 | 578.3 | 7.45 | 123.00 | 368.99 |
| 25.7 | 73 | 10.3 | 442.7 | 6.90 | 148.88 | 446.63 | 466.0 | 7.45 | 152.64 | 457.91 |
| 25.7 | 73 | 12.8 | 356.3 | 6.90 | 185.01 | 555.03 | 375.0 | 7.45 | 189.68 | 569.05 |
| 25.7 | 73 | 16.4 | 278.0 | 6.90 | 237.05 | 711.14 | 292.7 | 7.45 | 243.03 | 729.09 |
| 25.7 | 65.6 | 18.2 | 250.5 | 6.20 | 236.40 | 709.19 | 263.7 | 6.69 | 242.37 | 727.10 |
| 25.7 | 65.6 | 22.2 | 205.4 | 6.20 | 288.35 | 865.05 | 216.2 | 6.69 | 295.63 | 886.90 |
| 25.7 | 65.6 | 27.4 | 166.4 | 6.20 | 355.89 | 1067.68 | 175.2 | 6.69 | 364.88 | 1094.64 |
| 25.7 | 65.6 | 34.2 | 133.3 | 6.20 | 444.22 | 1332.65 | 140.4 | 6.69 | 455.43 | 1366.30 |
| 25.7 | 65.6 | 43.8 | 104.1 | 6.20 | 568.91 | 1706.73 | 109.6 | 6.69 | 583.28 | 1749.83 |
| 29.5 | 59 | 48.6 | 93.8 | 5.58 | 567.75 | 1703.24 | 98.8 | 6.02 | 582.08 | 1746.25 |
| 29.5 | 59 | 59.3 | 76.9 | 5.58 | 692.74 | 2078.23 | 80.9 | 6.02 | 710.24 | 2130.71 |
| 29.5 | 59 | 73.0 | 62.5 | 5.58 | 852.79 | 2558.36 | 65.8 | 6.02 | 874.32 | 2622.96 |
| 29.5 | 59 | 91.2 | 50.0 | 5.58 | 1065.40 | 3196.20 | 52.6 | 6.02 | 1092.30 | 3276.91 |
| 29.5 | 59 | 117.0 | 39.0 | 5.58 | 1366.79 | 4100.38 | 41.0 | 6.02 | 1401.31 | 4203.93 |
| 29.5 | 59 | 120.0 | 38.0 | 5.58 | 1401.84 | 4205.52 | 40.0 | 6.02 | 1437.24 | 4311.72 |
| 32.7 | 53 | 130.0 | 35.1 | 5.01 | 1364.22 | 4092.66 | 36.9 | 5.41 | 1398.67 | 4196.01 |
| 32.7 | 53 | 158.0 | 28.9 | 5.01 | 1658.05 | 4974.16 | 30.4 | 5.41 | 1699.92 | 5000.00 |
| 32.7 | 53 | 195.0 | 23.4 | 5.01 | 2046.33 | 5000.00 | 24.6 | 5.41 | 2098.01 | 5000.00 |
| 32.7 | 53 | 243.0 | 18.8 | 5.01 | 2550.04 | 5000.00 | 19.8 | 5.41 | 2614.44 | 5000.00 |
| 32.7 | 53 | 311.0 | 14.7 | 5.01 | 3263.63 | 5000.00 | 15.4 | 5.41 | 3346.05 | 5000.00 |
| 32.7 | 53 | 323.0 | 14.1 | 5.01 | 3389.56 | 5000.00 | 14.9 | 5.41 | 3475.16 | 5000.00 |
| DC Motor With Gearbox Technical Data (0.7M) | ||||||||||
| Gearbox parameters | 24V-3200RPM Input | 24V-4000RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 25.7 | 81 | 2.5 | 1024.0 | 3.10 | 28.96 | 86.87 | 1280.0 | 4.86 | 36.25 | 108.74 |
| 25.7 | 81 | 3.1 | 825.8 | 3.10 | 35.91 | 107.72 | 1032.3 | 4.86 | 44.95 | 134.84 |
| 25.7 | 81 | 3.8 | 673.7 | 3.10 | 44.02 | 132.05 | 842.1 | 4.86 | 55.10 | 165.29 |
| 25.7 | 81 | 4.8 | 533.3 | 3.10 | 55.60 | 166.80 | 666.7 | 4.86 | 69.60 | 208.79 |
| 25.7 | 81 | 6.1 | 419.7 | 3.10 | 70.66 | 211.97 | 524.6 | 4.86 | 88.44 | 265.33 |
| 25.7 | 73 | 6.8 | 376.5 | 2.80 | 70.99 | 212.96 | 470.6 | 4.38 | 88.86 | 266.57 |
| 25.7 | 73 | 8.3 | 308.4 | 2.80 | 86.64 | 259.93 | 385.5 | 4.38 | 108.46 | 325.37 |
| 25.7 | 73 | 10.3 | 248.5 | 2.80 | 107.52 | 322.57 | 310.7 | 4.38 | 134.59 | 403.77 |
| 25.7 | 73 | 12.8 | 200.0 | 2.80 | 133.62 | 400.86 | 250.0 | 4.38 | 167.26 | 501.77 |
| 25.7 | 73 | 16.4 | 156.1 | 2.80 | 171.20 | 513.60 | 195.1 | 4.38 | 214.30 | 642.90 |
| 25.7 | 65.6 | 18.2 | 140.7 | 2.51 | 170.73 | 512.19 | 175.8 | 3.93 | 213.71 | 641.14 |
| 25.7 | 65.6 | 22.2 | 115.3 | 2.51 | 208.25 | 624.76 | 144.1 | 3.93 | 260.68 | 782.04 |
| 25.7 | 65.6 | 27.4 | 93.4 | 2.51 | 257.03 | 771.10 | 116.8 | 3.93 | 321.74 | 965.23 |
| 25.7 | 65.6 | 34.2 | 74.9 | 2.51 | 320.82 | 962.47 | 93.6 | 3.93 | 401.59 | 1204.77 |
| 25.7 | 65.6 | 43.8 | 58.4 | 2.51 | 410.88 | 1232.64 | 73.1 | 3.93 | 514.32 | 1542.95 |
| 29.5 | 59 | 48.6 | 52.7 | 2.26 | 410.04 | 1230.11 | 65.8 | 3.54 | 513.26 | 1539.79 |
| 29.5 | 59 | 59.3 | 43.2 | 2.26 | 500.31 | 1500.94 | 54.0 | 3.54 | 626.27 | 1878.80 |
| 29.5 | 59 | 73.0 | 35.1 | 2.26 | 615.90 | 1847.70 | 43.8 | 3.54 | 770.95 | 2312.86 |
| 29.5 | 59 | 91.2 | 28.1 | 2.26 | 769.45 | 2308.36 | 35.1 | 3.54 | 963.16 | 2889.49 |
| 29.5 | 59 | 117.0 | 21.9 | 2.26 | 987.13 | 2961.39 | 27.4 | 3.54 | 1235.64 | 3706.91 |
| 29.5 | 59 | 120.0 | 21.3 | 2.26 | 1012.44 | 3037.32 | 26.7 | 3.54 | 1267.32 | 3801.96 |
| 32.7 | 53 | 130.0 | 19.7 | 2.03 | 985.27 | 2955.81 | 24.6 | 3.18 | 1233.31 | 3699.93 |
| 32.7 | 53 | 158.0 | 16.2 | 2.03 | 1197.48 | 3592.45 | 20.3 | 3.18 | 1498.95 | 4496.84 |
| 32.7 | 53 | 195.0 | 13.1 | 2.03 | 1477.91 | 4433.72 | 16.4 | 3.18 | 1849.97 | 5000.00 |
| 32.7 | 53 | 243.0 | 10.5 | 2.03 | 1841.70 | 5000.00 | 13.2 | 3.18 | 2305.34 | 5000.00 |
| 32.7 | 53 | 311.0 | 8.2 | 2.03 | 2357.07 | 5000.00 | 10.3 | 3.18 | 2950.46 | 5000.00 |
| 32.7 | 53 | 323.0 | 7.9 | 2.03 | 2448.02 | 5000.00 | 9.9 | 3.18 | 3064.30 | 5000.00 |
Please let us know your requirements and we will provide you with transmission solutions.
