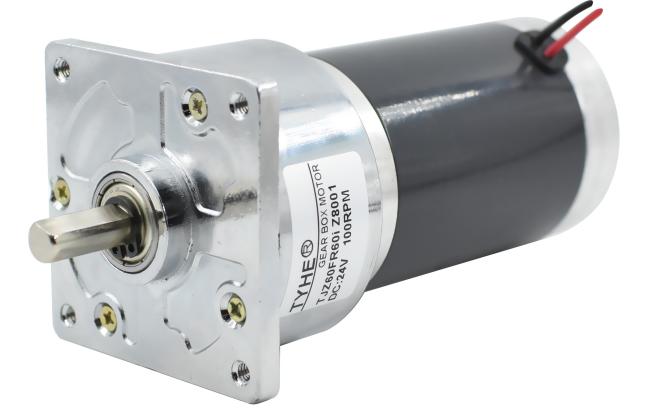

Silver Housing 60mm Diameter 70w Dc Brushed Type 12v 24v Variable Speed Gear Motor
Price:
Negotiation
MOQ:
500pcs
Delivery Time:
15 working days after payment
Brand:
TYHE
Product Description
Products Description
Silver Housing 60mm Diameter 70w Dc Brushed Type 12v 24v Variable Speed Gear Motor

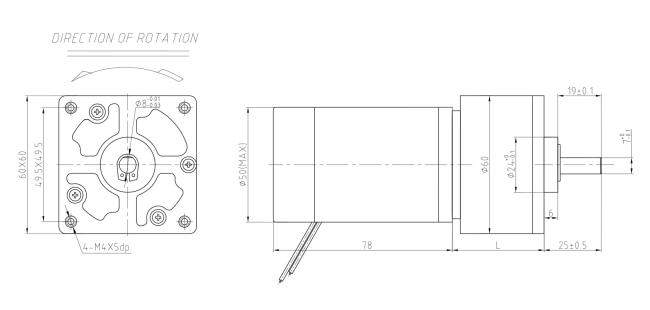

2D drawing
| Model | End cover dimensions | Motor type | Regular Shaft | Weight |
| TJZ60FR | 60*60mm | TH5078 | 8mm-D cut | 800g |
Specifications
| DC Motor Technical Data | ||||||||||
| Model | Rated Voltage(V) | No-Load Parameters | Rated Parameters | Stall Parameters | ||||||
| Speed | Current | Speed | Current | Torque | Output | eff | Torque | Current | ||
| rpm | mA | rpm | A | mN.m | W | % | mN.m | A | ||
| ZY5078 | 12 | 6000 | 1030 | 4800 | 4.00 | 60.19 | 30.25 | 63.11 | 180.57 | 29.40 |
| ZY5078 | 12 | 6500 | 1300 | 5200 | 4.98 | 69.52 | 37.85 | 63.30 | 208.56 | 36.40 |
| ZY5078 | 24 | 5000 | 470 | 4000 | 1.68 | 60.35 | 25.28 | 62.54 | 181.05 | 11.75 |
| ZY5078 | 24 | 6000 | 610 | 4800 | 2.19 | 67.39 | 33.87 | 64.57 | 202.17 | 15.25 |
| DC Motor With Gearbox Technical Data (1.25M) | ||||||||||
| Gearbox parameters | 12V-6000RPM Input | 12V-6500RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 28.5 | 81 | 5.8 | 827.6 | 24.50 | 282.77 | 848.32 | 896.6 | 30.66 | 326.60 | 979.81 |
| 28.5 | 81 | 6.8 | 705.9 | 24.50 | 331.53 | 994.58 | 764.7 | 30.66 | 382.92 | 1148.75 |
| 28.5 | 81 | 7.9 | 607.6 | 24.50 | 385.16 | 1155.47 | 658.2 | 30.66 | 444.86 | 1334.58 |
| 28.5 | 81 | 8.8 | 545.5 | 24.50 | 429.03 | 1287.10 | 590.9 | 30.66 | 495.54 | 1486.62 |
| 28.5 | 81 | 9.8 | 489.8 | 24.50 | 477.79 | 1433.36 | 530.6 | 30.66 | 551.85 | 1655.55 |
| 28.5 | 81 | 10.5 | 457.1 | 24.50 | 511.92 | 1535.75 | 495.2 | 30.66 | 591.27 | 1773.80 |
| 28.5 | 81 | 11.6 | 413.8 | 24.50 | 565.55 | 1696.64 | 448.3 | 30.66 | 653.21 | 1959.63 |
| 33.5 | 73 | 18.6 | 258.1 | 22.08 | 817.26 | 2451.78 | 279.6 | 27.63 | 943.94 | 2831.83 |
| 33.5 | 73 | 24.0 | 200.0 | 22.08 | 1054.53 | 3163.59 | 216.7 | 27.63 | 1217.99 | 3653.97 |
| 33.5 | 73 | 28.0 | 171.4 | 22.08 | 1230.28 | 3690.85 | 185.7 | 27.63 | 1420.99 | 4262.97 |
| 33.5 | 73 | 33.6 | 142.9 | 22.08 | 1476.34 | 4429.02 | 154.8 | 27.63 | 1705.19 | 5115.56 |
| 36 | 65.6 | 60.0 | 80.0 | 19.85 | 2369.08 | 7107.24 | 86.7 | 24.83 | 2736.31 | 8208.92 |
| 36 | 65.6 | 71.0 | 67.6 | 19.85 | 2803.41 | 8410.23 | 73.2 | 24.83 | 3237.96 | 9713.89 |
| 36 | 65.6 | 83.0 | 57.8 | 19.85 | 3277.23 | 9831.68 | 62.7 | 24.83 | 3785.22 | 11355.67 |
| 36 | 65.6 | 91.0 | 52.7 | 19.85 | 3593.10 | 10779.31 | 57.1 | 24.83 | 4150.07 | 12450.20 |
| 36 | 65.6 | 100.0 | 48.0 | 19.85 | 3948.46 | 11845.39 | 52.0 | 24.83 | 4560.51 | 13681.54 |
| 36 | 65.6 | 108.0 | 44.4 | 19.85 | 4264.34 | 12793.02 | 48.1 | 24.83 | 4925.35 | 14776.06 |
| 36 | 65.6 | 118.0 | 40.7 | 19.85 | 4659.19 | 13977.56 | 44.1 | 24.83 | 5381.40 | 15000.00 |
| 40 | 59 | 191.0 | 25.1 | 17.85 | 6782.81 | 15000.00 | 27.2 | 22.33 | 7834.21 | 15000.00 |
| 40 | 59 | 226.0 | 21.2 | 17.85 | 8025.73 | 15000.00 | 23.0 | 22.33 | 9269.80 | 15000.00 |
| 40 | 59 | 265.0 | 18.1 | 17.85 | 9410.71 | 15000.00 | 19.6 | 22.33 | 10869.45 | 15000.00 |
| 40 | 59 | 288.0 | 16.7 | 17.85 | 10227.48 | 15000.00 | 18.1 | 22.33 | 11812.84 | 15000.00 |
| 40 | 59 | 345.0 | 13.9 | 17.85 | 12251.67 | 15000.00 | 15.1 | 22.33 | 14150.80 | 15000.00 |
| 40 | 59 | 379.0 | 12.7 | 17.85 | 13459.09 | 15000.00 | 13.7 | 22.33 | 15000.00 | 15000.00 |
| DC Motor With Gearbox Technical Data (1.25M) | ||||||||||
| Gearbox parameters | 24V-5000RPM Input | 24V-6000RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 28.5 | 81 | 5.8 | 689.7 | 20.47 | 283.52 | 850.57 | 827.6 | 27.44 | 316.60 | 949.79 |
| 28.5 | 81 | 6.8 | 588.2 | 20.47 | 332.41 | 997.22 | 705.9 | 27.44 | 371.18 | 1113.55 |
| 28.5 | 81 | 7.9 | 506.3 | 20.47 | 386.18 | 1158.54 | 607.6 | 27.44 | 431.23 | 1293.69 |
| 28.5 | 81 | 8.8 | 454.5 | 20.47 | 430.17 | 1290.52 | 545.5 | 27.44 | 480.36 | 1441.07 |
| 28.5 | 81 | 9.8 | 408.2 | 20.47 | 479.06 | 1437.17 | 489.8 | 27.44 | 534.94 | 1604.83 |
| 28.5 | 81 | 10.5 | 381.0 | 20.47 | 513.28 | 1539.83 | 457.1 | 27.44 | 573.15 | 1719.46 |
| 28.5 | 81 | 11.6 | 344.8 | 20.47 | 567.05 | 1701.15 | 413.8 | 27.44 | 633.20 | 1899.59 |
| 33.5 | 73 | 18.6 | 215.1 | 18.45 | 819.43 | 2458.30 | 258.1 | 24.73 | 915.02 | 2745.06 |
| 33.5 | 73 | 24.0 | 166.7 | 18.45 | 1057.33 | 3172.00 | 200.0 | 24.73 | 1180.67 | 3542.02 |
| 33.5 | 73 | 28.0 | 142.9 | 18.45 | 1233.55 | 3700.66 | 171.4 | 24.73 | 1377.45 | 4132.35 |
| 33.5 | 73 | 33.6 | 119.0 | 18.45 | 1480.26 | 4440.79 | 142.9 | 24.73 | 1652.94 | 4958.83 |
| 36 | 65.6 | 60.0 | 66.7 | 16.58 | 2375.38 | 7126.13 | 80.0 | 22.22 | 2652.47 | 7957.41 |
| 36 | 65.6 | 71.0 | 56.3 | 16.58 | 2810.86 | 8432.58 | 67.6 | 22.22 | 3138.76 | 9416.27 |
| 36 | 65.6 | 83.0 | 48.2 | 16.58 | 3285.94 | 9857.81 | 57.8 | 22.22 | 3669.25 | 11007.75 |
| 36 | 65.6 | 91.0 | 44.0 | 16.58 | 3602.65 | 10807.96 | 52.7 | 22.22 | 4022.91 | 12068.74 |
| 36 | 65.6 | 100.0 | 40.0 | 16.58 | 3958.96 | 11876.88 | 48.0 | 22.22 | 4420.78 | 13262.35 |
| 36 | 65.6 | 108.0 | 37.0 | 16.58 | 4275.68 | 12827.03 | 44.4 | 22.22 | 4774.45 | 14323.34 |
| 36 | 65.6 | 118.0 | 33.9 | 16.58 | 4671.57 | 14014.72 | 40.7 | 22.22 | 5216.53 | 15000.00 |
| 40 | 59 | 191.0 | 20.9 | 14.91 | 6800.84 | 15000.00 | 25.1 | 19.98 | 7594.18 | 15000.00 |
| 40 | 59 | 226.0 | 17.7 | 14.91 | 8047.07 | 15000.00 | 21.2 | 19.98 | 8985.78 | 15000.00 |
| 40 | 59 | 265.0 | 15.1 | 14.91 | 9435.72 | 15000.00 | 18.1 | 19.98 | 10536.43 | 15000.00 |
| 40 | 59 | 288.0 | 13.9 | 14.91 | 10254.67 | 15000.00 | 16.7 | 19.98 | 11450.91 | 15000.00 |
| 40 | 59 | 345.0 | 11.6 | 14.91 | 12284.24 | 15000.00 | 13.9 | 19.98 | 13717.23 | 15000.00 |
| 40 | 59 | 379.0 | 10.6 | 14.91 | 13494.86 | 15000.00 | 12.7 | 19.98 | 15000.00 | 15000.00 |
Please let us know your requirements and we will provide you with transmission solutions.
Company Profile
WenZhou TYHE Motor Co.,ltd. was established in May, 2010 and is located in WenZhou, China. TYHE covers an area of 3500㎡. And we have excellent teams who focus on R&D, QC and company operation.
- 11 years experiences in dc gear motor industry.
- Accept OEM or ODM orders.
- 5 days lead time for samples.
- Monthly capacity is ≥500000pcs.
- Warranty: one year.
- 10 R&D engineers offer professional solutions.
- Fast delivery time base on different quantities.
- CE, ROHS and ISO9001 certificated.
