Smart Home PMDC Micro DC Gear Motor 33mm Diameter 2W 3V 24V 12v

Name: Smart Home PMDC Micro DC Gear Motor 33mm Diameter 2W 3V 24V 12v
Brand: Wenzhou Tyhe Motor Co., Ltd.

Price Negotiable

Price: Negotiation

MOQ: 500pcs

Delivery Time: 15 working days after payment

Brand: TYHE

Product Description

Products Description

Smart Home High Torque 33mm Diameter 2w 3v 24v 12v Micro Dc Gear Motor For Kitchen Appliances

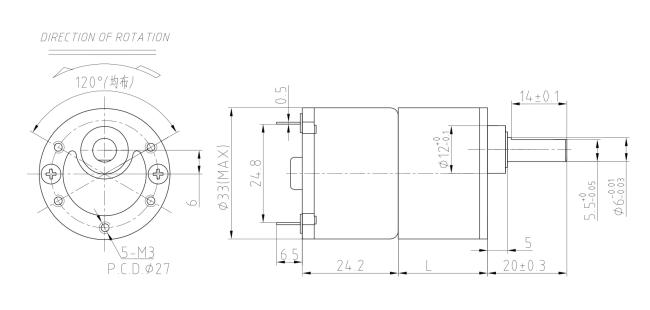

2D drawing


Specifications

DC Motor Technical Data
Model	Rated Voltage(V)	No-Load Parameters		Rated Parameters					Stall Parameters
		Speed	Current	Speed	Current	Torque	Output	eff	Torque	Current
		rpm	mA	rpm	A	mN.m	W	%	mN.m	A
ZY3324	6	7000	80	5600	0.37	2.35	1.38	62.78	7.05	2.95
ZY3324	7	4000	30	3200	0.14	1.79	0.60	62.70	5.37	1.10
ZY3324	12	5500	38	4400	0.13	2.13	0.98	64.82	6.39	0.83
ZY3324	12	7300	64	5840	0.27	3.24	1.98	61.30	9.72	2.08
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters			6V-7000RPM Input				7V-4000RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
21.3	81	7.7	727.3	1.12	14.66	43.97	415.6	0.49	11.16	33.49
21.3	81	9.0	622.2	1.12	17.13	51.39	355.6	0.49	13.05	39.15
21.3	73	18.4	304.3	1.01	31.57	94.70	173.9	0.44	24.04	72.13
21.3	73	21.6	259.3	1.01	37.05	111.16	148.1	0.44	28.22	84.67
21.3	73	25.4	220.5	1.01	43.57	130.72	126.0	0.44	33.19	99.57
21.3	65.6	44.2	126.7	0.90	68.14	204.42	72.4	0.39	51.90	155.70
21.3	65.6	51.9	107.9	0.90	80.01	240.03	61.7	0.39	60.94	182.83
21.3	65.6	61.0	91.8	0.90	94.04	282.11	52.5	0.39	71.63	214.89
21.3	65.6	71.6	78.2	0.90	110.38	331.14	44.7	0.39	84.08	252.23
22.5	59	106.0	52.8	0.81	146.97	440.91	30.2	0.35	111.95	335.84
22.5	59	125.0	44.8	0.81	173.31	519.94	25.6	0.35	132.01	396.04
22.5	59	146.0	38.4	0.81	202.43	607.29	21.9	0.35	154.19	462.57
22.5	59	172.0	32.6	0.81	238.48	715.43	18.6	0.35	181.65	544.95
22.5	59	202.0	27.7	0.81	280.07	840.22	15.8	0.35	213.33	640.00
24.7	53	255.0	22.0	0.73	317.60	952.81	12.5	0.32	241.92	725.76
24.7	53	299.0	18.7	0.73	372.40	1117.21	10.7	0.32	283.66	850.98
24.7	53	351.0	16.0	0.73	437.17	1311.51	9.1	0.32	332.99	998.98
24.7	53	413.0	13.6	0.73	514.39	1543.17	7.7	0.32	391.81	1175.44
24.7	53	484.0	11.6	0.73	602.82	1808.47	6.6	0.32	459.17	1377.51
24.7	53	569.0	9.8	0.73	708.69	2000.00	5.6	0.32	539.81	1619.43
27.2	48	612.0	9.2	0.66	690.34	2000.00	5.2	0.29	525.83	1577.49
27.2	48	718.0	7.8	0.66	809.90	2000.00	4.5	0.29	616.91	1850.72
27.2	48	843.0	6.6	0.66	950.90	2000.00	3.8	0.29	724.31	2000.00
27.2	48	990.0	5.7	0.66	1116.72	2000.00	3.2	0.29	850.61	2000.00
27.2	48	1163.0	4.8	0.66	1311.86	2000.00	2.8	0.29	999.25	2000.00
27.2	48	1365.0	4.1	0.66	1539.72	2000.00	2.3	0.29	1172.81	2000.00
27.2	48	1603.0	3.5	0.66	1808.18	2000.00	2.0	0.29	1377.30	2000.00
DC Motor With Gearbox Technical Data (0.5M)
Gearbox parameters			12V-5500RPM Input				12V-7300RPM Input
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
Length (mm)	Transmission Efficiency (%)	Gear Ratio	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)	Rated Output Speed (RPM)	Rated Output Power (W)	Rated Torque (mN.m)	Maximum Instantaneous Torque (mN.m)
21.3	81	7.7	571.4	0.79	13.28	39.85	758.4	1.60	20.21	60.62
21.3	81	9.0	488.9	0.79	15.53	46.58	648.9	1.60	23.62	70.86
21.3	73	18.4	239.1	0.72	28.61	85.83	317.4	1.45	43.52	130.56
21.3	73	21.6	203.7	0.72	33.59	100.76	270.4	1.45	51.09	153.26
21.3	73	25.4	173.2	0.72	39.49	118.48	229.9	1.45	60.08	180.23
21.3	65.6	44.2	99.5	0.64	61.76	185.28	132.1	1.30	93.94	281.83
21.3	65.6	51.9	84.8	0.64	72.52	217.56	112.5	1.30	110.31	330.93
21.3	65.6	61.0	72.1	0.64	85.23	255.70	95.7	1.30	129.65	388.96
21.3	65.6	71.6	61.5	0.64	100.05	300.14	81.6	1.30	152.18	456.54
22.5	59	106.0	41.5	0.58	133.21	399.63	55.1	1.17	202.63	607.89
22.5	59	125.0	35.2	0.58	157.09	471.26	46.7	1.17	238.95	716.85
22.5	59	146.0	30.1	0.58	183.48	550.43	40.0	1.17	279.09	837.28
22.5	59	172.0	25.6	0.58	216.15	648.46	34.0	1.17	328.80	986.39
22.5	59	202.0	21.8	0.58	253.85	761.56	28.9	1.17	386.14	1158.43
24.7	53	255.0	17.3	0.52	287.87	863.61	22.9	1.05	437.89	1313.66
24.7	53	299.0	14.7	0.52	337.54	1012.62	19.5	1.05	513.44	1540.33
24.7	53	351.0	12.5	0.52	396.24	1188.73	16.6	1.05	602.74	1808.21
24.7	53	413.0	10.7	0.52	466.24	1398.71	14.1	1.05	709.20	2000.00
24.7	53	484.0	9.1	0.52	546.39	1639.16	12.1	1.05	831.12	2000.00
24.7	53	569.0	7.7	0.52	642.34	1927.03	10.3	1.05	977.09	2000.00
27.2	48	612.0	7.2	0.47	625.71	1877.13	9.5	0.95	951.78	2000.00
27.2	48	718.0	6.1	0.47	734.08	2000.00	8.1	0.95	1116.63	2000.00
27.2	48	843.0	5.2	0.47	861.88	2000.00	6.9	0.95	1311.03	2000.00
27.2	48	990.0	4.4	0.47	1012.18	2000.00	5.9	0.95	1539.65	2000.00
27.2	48	1163.0	3.8	0.47	1189.05	2000.00	5.0	0.95	1808.70	2000.00
27.2	48	1365.0	3.2	0.47	1395.58	2000.00	4.3	0.95	2000.00	2000.00
27.2	48	1603.0	2.7	0.47	1638.91	2000.00	3.6	0.95	2000.00	2000.00
