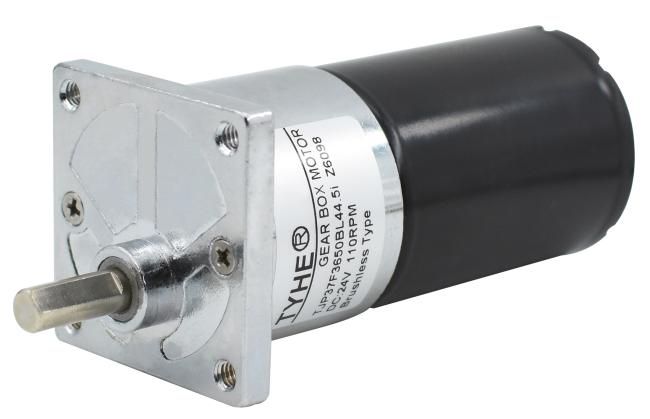

Brushless 1nm High Torque 30 Rpm 12V DC Geared Motor 15kg.Cm
Products Description
37mm High Torque 15kg.Cm 1nm 12v 24v 50rpm 30rpm Brushless Dc Geared Motor For Automation

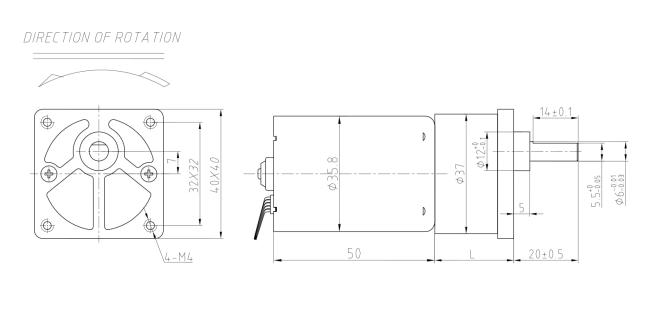

2D drawing
Specifications
| DC Motor Technical Data | ||||||||||
| Model | Rated Voltage(V) | No-Load Parameters | Rated Parameters | Stall Parameters | ||||||
| Speed | Current | Speed | Current | Torque | Output | eff | Torque | Current | ||
| rpm | mA | rpm | A | mN.m | W | % | mN.m | A | ||
| 3650BL | 12 | 5000 | 350 | 4000 | 1.07 | 19.20 | 8.04 | 62.83 | 57.60 | 6.50 |
| 3650BL | 24 | 5000 | 158 | 4000 | 0.54 | 19.80 | 8.29 | 63.85 | 59.40 | 3.65 |
| DC Motor With Gearbox Technical Data (0.5M) | ||||||||||
| Gearbox parameters | 12V-5000RPM Input | 24V-5000RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 25.5 | 81 | 8.2 | 487.8 | 6.51 | 127.53 | 382.58 | 487.8 | 6.72 | 131.51 | 394.53 |
| 25.5 | 73 | 11.7 | 341.9 | 5.87 | 163.99 | 491.96 | 341.9 | 6.05 | 169.11 | 507.34 |
| 25.5 | 73 | 14.7 | 272.1 | 5.87 | 206.04 | 618.11 | 272.1 | 6.05 | 212.47 | 637.42 |
| 25.5 | 73 | 19.1 | 209.4 | 5.87 | 267.71 | 803.12 | 209.4 | 6.05 | 276.07 | 828.21 |
| 27.5 | 65.6 | 27.2 | 147.1 | 5.28 | 342.59 | 1027.77 | 147.1 | 5.44 | 353.30 | 1059.89 |
| 27.5 | 65.6 | 34.4 | 116.3 | 5.28 | 433.27 | 1299.82 | 116.3 | 5.44 | 446.81 | 1340.44 |
| 27.5 | 65.6 | 44.5 | 89.9 | 5.28 | 560.49 | 1681.46 | 89.9 | 5.44 | 578.00 | 1734.00 |
| 29.5 | 59 | 63.5 | 63.0 | 4.74 | 719.33 | 2157.98 | 63.0 | 4.89 | 741.81 | 2225.42 |
| 29.5 | 59 | 80.3 | 49.8 | 4.74 | 909.64 | 2500.00 | 49.8 | 4.89 | 938.06 | 2500.00 |
| 29.5 | 59 | 104.0 | 38.5 | 4.74 | 1178.11 | 2500.00 | 38.5 | 4.89 | 1214.93 | 2500.00 |
| 32.5 | 53 | 148.0 | 27.0 | 4.26 | 1506.05 | 2500.00 | 27.0 | 4.40 | 1553.11 | 2500.00 |
| 32.5 | 53 | 187.0 | 21.4 | 4.26 | 1902.91 | 2500.00 | 21.4 | 4.40 | 1962.38 | 2500.00 |
| 32.5 | 53 | 242.0 | 16.5 | 4.26 | 2462.59 | 2500.00 | 16.5 | 4.40 | 2500.00 | 2500.00 |
| 35.5 | 47.8 | 346.0 | 11.6 | 3.84 | 2500.00 | 2500.00 | 11.6 | 3.96 | 2500.00 | 2500.00 |
| 35.5 | 47.8 | 437.0 | 9.2 | 3.84 | 2500.00 | 2500.00 | 9.2 | 3.96 | 2500.00 | 2500.00 |
| 35.5 | 47.8 | 565.0 | 7.1 | 3.84 | 2500.00 | 2500.00 | 7.1 | 3.96 | 2500.00 | 2500.00 |
Please let us know your requirements and we will provide you with transmission solutions.
