TYHE DC Spur Gear Motor 6V 12V 24V High Power 12W 37gb545f
Price:
Negotiation
MOQ:
500pcs
Delivery Time:
15 working days after payment
Brand:
TYHE
Product Description
Products Description

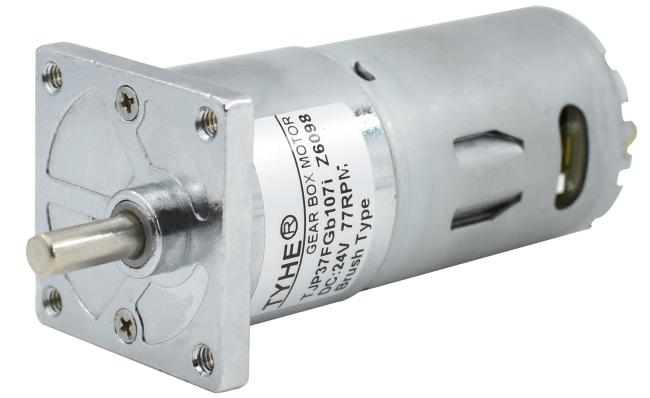

37mm Dia 37gb545f 6v 12v 24v High Power 12w Brushes Dc Spur Gear Motor

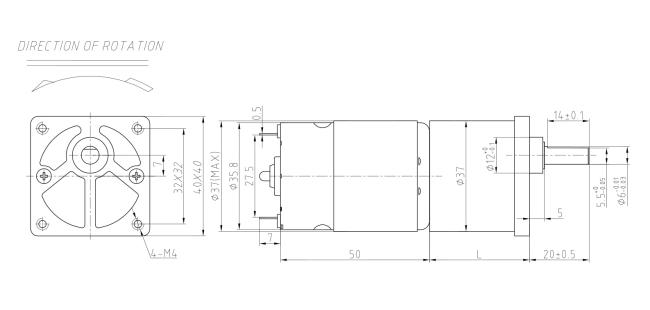

2D drawing
Specifications
| DC Motor Technical Data | ||||||||||
| Model | Rated Voltage(V) | No-Load Parameters | Rated Parameters | Stall Parameters | ||||||
| Speed | Current | Speed | Current | Torque | Output | eff | Torque | Current | ||
| rpm | mA | rpm | A | mN.m | W | % | mN.m | A | ||
| RS545 | 6 | 3200 | 280 | 2560 | 0.81 | 11.20 | 3.00 | 61.65 | 33.60 | 4.70 |
| RS545 | 12 | 2000 | 70 | 1600 | 0.20 | 8.95 | 1.50 | 63.54 | 26.85 | 1.10 |
| RS545 | 24 | 6000 | 160 | 4800 | 0.60 | 17.50 | 8.80 | 61.25 | 52.50 | 4.30 |
| RS545 | 24 | 8300 | 200 | 6640 | 0.88 | 19.30 | 13.42 | 63.90 | 57.90 | 6.90 |
| DC Motor With Gearbox Technical Data (0.5M) | ||||||||||
| Gearbox parameters | 6V-3200RPM Input | 12V-2000RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 25.5 | 81 | 8.2 | 312.2 | 2.43 | 74.39 | 223.17 | 195.1 | 1.21 | 59.45 | 178.34 |
| 25.5 | 73 | 11.7 | 218.8 | 2.19 | 95.66 | 286.98 | 136.8 | 1.09 | 76.44 | 229.33 |
| 25.5 | 73 | 14.7 | 174.1 | 2.19 | 120.19 | 360.56 | 108.8 | 1.09 | 96.04 | 288.13 |
| 25.5 | 73 | 19.1 | 134.0 | 2.19 | 156.16 | 468.48 | 83.8 | 1.09 | 124.79 | 374.37 |
| 27.5 | 65.6 | 27.2 | 94.1 | 1.97 | 199.84 | 599.53 | 58.8 | 0.98 | 159.70 | 479.09 |
| 27.5 | 65.6 | 34.4 | 74.4 | 1.97 | 252.74 | 758.23 | 46.5 | 0.98 | 201.97 | 605.91 |
| 27.5 | 65.6 | 44.5 | 57.5 | 1.97 | 326.95 | 980.85 | 36.0 | 0.98 | 261.27 | 783.81 |
| 29.5 | 59 | 63.5 | 40.3 | 1.77 | 419.61 | 1258.82 | 25.2 | 0.88 | 335.31 | 1005.94 |
| 29.5 | 59 | 80.3 | 31.9 | 1.77 | 530.62 | 1591.87 | 19.9 | 0.88 | 424.02 | 1272.07 |
| 29.5 | 59 | 104.0 | 24.6 | 1.77 | 687.23 | 2061.70 | 15.4 | 0.88 | 549.17 | 1647.52 |
| 32.5 | 53 | 148.0 | 17.3 | 1.59 | 878.53 | 2500.00 | 10.8 | 0.79 | 702.04 | 2106.11 |
| 32.5 | 53 | 187.0 | 13.7 | 1.59 | 1110.03 | 2500.00 | 8.6 | 0.79 | 887.03 | 2500.00 |
| 32.5 | 53 | 242.0 | 10.6 | 1.59 | 1436.51 | 2500.00 | 6.6 | 0.79 | 1147.93 | 2500.00 |
| 35.5 | 47.8 | 346.0 | 7.4 | 1.44 | 1852.35 | 2500.00 | 4.6 | 0.72 | 1480.22 | 2500.00 |
| 35.5 | 47.8 | 437.0 | 5.9 | 1.44 | 2339.52 | 2500.00 | 3.7 | 0.72 | 1869.53 | 2500.00 |
| 35.5 | 47.8 | 565.0 | 4.5 | 1.44 | 2500.00 | 2500.00 | 2.8 | 0.72 | 2417.13 | 2500.00 |
| DC Motor With Gearbox Technical Data (0.5M) | ||||||||||
| Gearbox parameters | 24V-6000RPM Input | 24V-8300RPM Input | ||||||||
| Length (mm) | Transmission Efficiency (%) | Gear Ratio | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) | Rated Output Speed (RPM) | Rated Output Power (W) | Rated Torque (mN.m) | Maximum Instantaneous Torque (mN.m) |
| 25.5 | 81 | 8.2 | 585.4 | 7.12 | 116.24 | 348.71 | 809.8 | 10.87 | 128.19 | 384.57 |
| 25.5 | 73 | 11.7 | 410.3 | 6.42 | 149.47 | 448.40 | 567.5 | 9.80 | 164.84 | 494.52 |
| 25.5 | 73 | 14.7 | 326.5 | 6.42 | 187.79 | 563.38 | 451.7 | 9.80 | 207.11 | 621.32 |
| 25.5 | 73 | 19.1 | 251.3 | 6.42 | 244.00 | 732.01 | 347.6 | 9.80 | 269.10 | 807.30 |
| 27.5 | 65.6 | 27.2 | 176.5 | 5.77 | 312.26 | 936.77 | 244.1 | 8.80 | 344.37 | 1033.12 |
| 27.5 | 65.6 | 34.4 | 139.5 | 5.77 | 394.91 | 1184.74 | 193.0 | 8.80 | 435.53 | 1306.59 |
| 27.5 | 65.6 | 44.5 | 107.9 | 5.77 | 510.86 | 1532.58 | 149.2 | 8.80 | 563.41 | 1690.22 |
| 29.5 | 59 | 63.5 | 75.6 | 5.19 | 655.64 | 1966.91 | 104.6 | 7.92 | 723.07 | 2169.22 |
| 29.5 | 59 | 80.3 | 59.8 | 5.19 | 829.10 | 2487.29 | 82.7 | 7.92 | 914.38 | 2500.00 |
| 29.5 | 59 | 104.0 | 46.2 | 5.19 | 1073.80 | 2500.00 | 63.8 | 7.92 | 1184.25 | 2500.00 |
| 32.5 | 53 | 148.0 | 32.4 | 4.66 | 1372.70 | 2500.00 | 44.9 | 7.11 | 1513.89 | 2500.00 |
| 32.5 | 53 | 187.0 | 25.7 | 4.66 | 1734.43 | 2500.00 | 35.5 | 7.11 | 1912.82 | 2500.00 |
| 32.5 | 53 | 242.0 | 19.8 | 4.66 | 2244.55 | 2500.00 | 27.4 | 7.11 | 2475.42 | 2500.00 |
| 35.5 | 47.8 | 346.0 | 13.9 | 4.20 | 2500.00 | 2500.00 | 19.2 | 6.41 | 2500.00 | 2500.00 |
| 35.5 | 47.8 | 437.0 | 11.0 | 4.20 | 2500.00 | 2500.00 | 15.2 | 6.41 | 2500.00 | 2500.00 |
| 35.5 | 47.8 | 565.0 | 8.5 | 4.20 | 2500.00 | 2500.00 | 11.8 | 6.41 | 2500.00 | 2500.00 |
Please let us know your requirements and we will provide you with transmission solutions.
